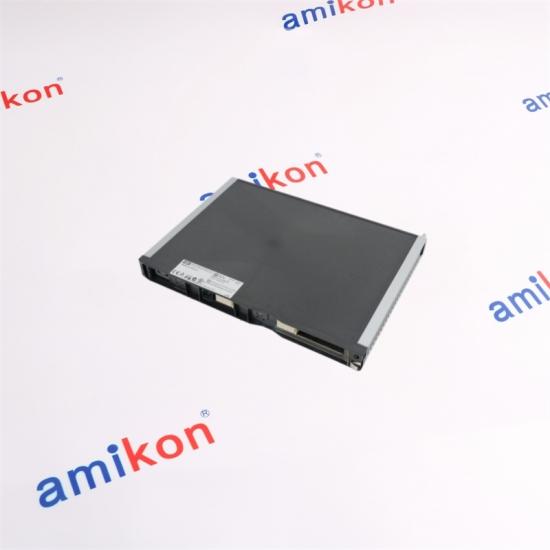

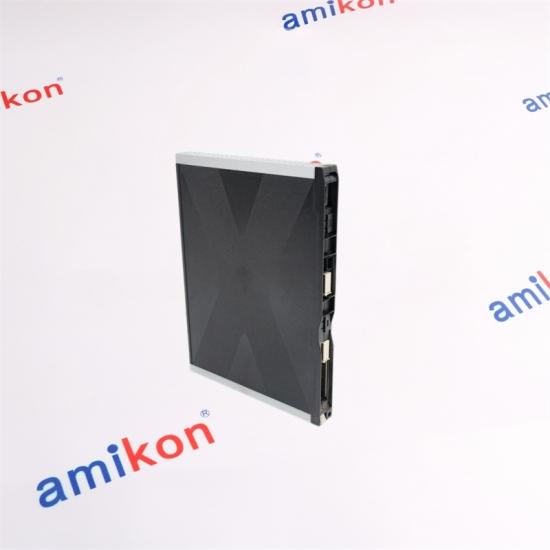

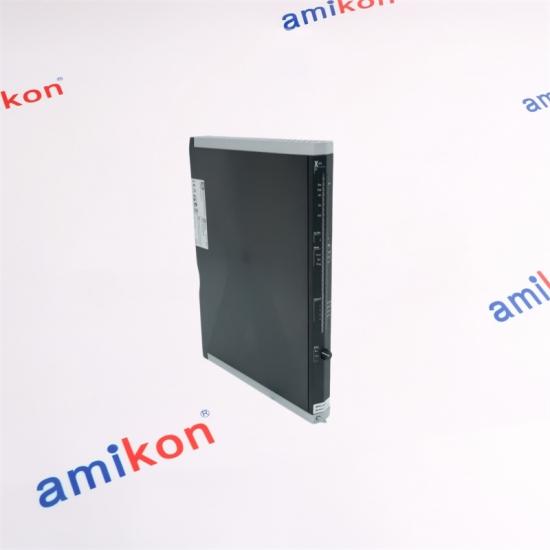

HIMax PROCESSOR MODULE
X-CPU 01
Part No. 985210211
Architecture
1oo2 safety-related processor system |
|
Processor
PowerPC |
Designed for the HIMax platform, the X-CPU 01 performs safety-related processing of the user program and communication with I/O modules and external systems. Its 1oo2 processor architecture continuously compares processor operation and supports safety-related control in demanding applications.
|
|
CORE PROFILE
|
HIMax
PROCESSOR MODULE
X-CPU 01
|
| System role: Safety-related central processing within the HIMax platform. |
|
|
SUPPLY
24 VDC
|
CURRENT INPUT
1.4 A
|
ETHERNET
4 × RJ-45
|
EVENT BUFFER
5,000 Events
|
|
01
|
Technical Architecture
The X-CPU 01 combines a safety-related processor system, system controller, Ethernet switch, memory, mode switch and status indicators within the HIMax processor module.
|
| PROCESSING CORE |
| The safety-related processor system uses a 1oo2 architecture with two synchronous microprocessors. A hardware comparator checks processor data, while a watchdog monitors processor operation. Continuous self-tests support safe operation. |
| The module uses PowerPC processing and provides dedicated DDRAM for the processor system. The non-volatile memory retains operating system data, user project data, configuration values, retain variables, production data, fault history and events. |
|
| MEMORY & EVENT CAPABILITY |
Flash EPROM: 128 MB
DDRAM / NVRAM: 256 MB
Program memory per user program: 1023 kB
Data memory per user program: 1023 kB
Stored events: 5,000
Event-triggering variables: 20,000 |
|
| Parameter |
Value |
| Supply voltage |
24 VDC, -15% to +20% |
| Current input |
1.4 A |
| Internal fuse |
7.5 A |
| Microprocessor |
PowerPC |
| Flash EPROM |
128 MB |
| DDRAM / NVRAM |
256 MB |
| Safety time |
≥ 20 ms, application dependent |
|
| Parameter |
Value |
| Operating temperature |
0 °C to +60 °C |
| Storage temperature |
-40 °C to +85 °C |
| Humidity |
Max. 95%, non-condensing |
| Protection |
IP20 |
| Dimensions |
Approx. 310 × 29.2 × 236 mm |
| Weight |
Approx. 1.3 kg |
| Date/time buffer |
Gold capacitor |
|
|
NETWORK STRUCTURE
Four-Port Ethernet Switching
The processor module provides four Ethernet interfaces through the connector board. The interfaces form a 10/100/1000 Base-T switch and support half- and full-duplex operation, auto negotiation and auto crossover.
|
|
ETH 1
RJ-45
|
ETH 2
RJ-45
|
ETH 3
RJ-45
|
ETH 4
RJ-45
|
Supported communication includes safeethernet and connection to the PADT. The Ethernet ports are internally connected through the module's switch.
|
|
02
|
Where X-CPU 01 Matters
The X-CPU 01 is intended for HIMax applications where safety-related processing, dependable communication and continuous diagnostic capability are important. It safely processes the user program and communicates with I/O modules and external units.
|
|
SYSTEM ROLE
Safety Processing
The processor executes the user program and coordinates data transfer between the safety-related processor system, system buses and Ethernet interfaces.
|
|
|
WHEN ENGINEERS SEARCH FOR THIS PART
It is commonly relevant when a HIMax processor module fails to start correctly, enters a fault condition, loses expected processor operation, or shows abnormal processor, watchdog, redundancy or communication status. The built-in LEDs, self-tests and event handling support structured diagnosis.
|
|
|
DOWNTIME CONSIDERATION
Control Continuity
A processor fault in a safety control platform can interrupt execution of the intended control strategy and may place the process into a defined safe condition. For critical installations, having a correctly matched replacement available can reduce recovery time.
|
|
|
DIAGNOSTIC DESIGN
Built Around Continuous Checking
Two synchronous processors operate as a 1oo2 safety-related processor system. Processor data is compared by hardware, a watchdog supervises both processors, and continuous self-tests support the safe operating state.
|
Processor comparison
Hardware comparator |
Watchdog
Processor supervision |
Event memory
Up to 5,000 stored events |
Status LEDs
Operational state indication |
Non-volatile memory
CRC-protected storage |
Gold capacitor
Date/time buffering |
|
|
PROCESSOR
X-CPU 01
|
CONNECTOR
X-CB 001 01
|
COMMUNICATION
X-COM / Ethernet
|
I/O SIDE
HIMax I/O Modules
|
|
RELATED HIMax PLATFORM MEMBERS
System-Level Compatibility Context
The HIMax platform includes processor, communication, power and I/O modules. Related processor and platform modules include X-CPU 31, X-COM 01, X-COM 01 E, X-SB 01, X-DI 64 01, X-DO 32 01, X-AI 32 01 and X-AO 16 01. These are different functional positions within the HIMax architecture, so replacement selection should follow the installed system configuration rather than appearance alone.
|
Key distinction
X-CPU 01 is the processor module. X-CB 001 01 is the connector board required for the processor module to operate as a functional unit. |
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
CONDITION
Brand New
|
PAYMENT
T/T
|
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
|
|
QUOTE REQUEST
Prepare These Details
For a faster quotation, provide the exact part number together with the machine or system context.
|
| Part Number |
Quantity |
Destination |
| Required Date |
Machine / System |
Current fault status if available |
|
|
AFTER-SALES ARRANGEMENT
Please contact us within 7 days after receipt if an issue occurs. Returned items should remain in their original condition and include the specific reason for return. After the returned unit is received, an applicable return or replacement arrangement can be processed. Shipping costs arising from the return are the buyer's responsibility.
|
|
