A Compact Safety-Related Digital Output Platform

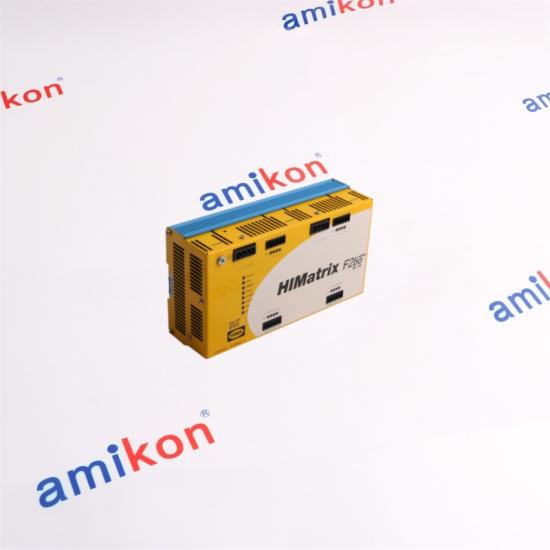

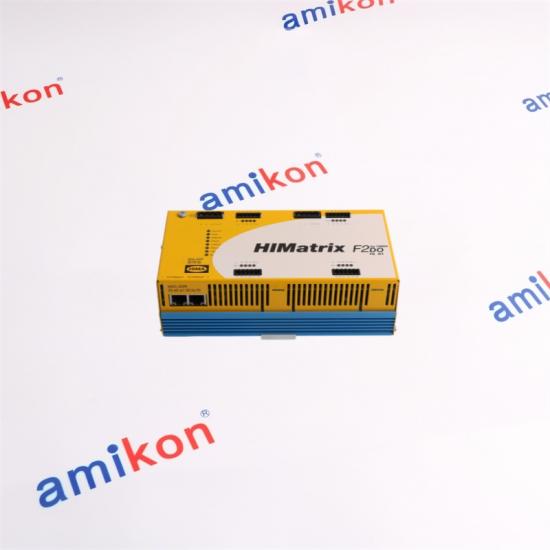

The HIMA F2 DO 16 01 is a HIMatrix remote I/O device providing 16 digital outputs for safety-related automation architectures. It communicates with the associated controller through SafeEthernet and is intended to operate together with a controller rather than as a standalone control device. The module provides two Ethernet interfaces with an integrated switch and is designed for DIN-rail installation. Its output architecture is suited to applications where distributed digital actuator signals need to be connected to a HIMatrix safety system. Distributed I/O Without Losing the Safety Architecture
F2 DO 16 01 places 16 digital output channels close to the field equipment while exchanging data with the associated controller through the HIMatrix communication architecture.
|
|
A / OUTPUT CHANNELS
16 Digital Outputs
The module provides 16 non-galvanically separated digital outputs. The output voltage is specified as at least L+ minus 2 V. |
B / OUTPUT CAPABILITY
Load Handling
Each output can be loaded up to 2 A below 40°C and up to 1 A from 40°C to 60°C. The total permissible current is limited by the specified group and module values. |
|
C / NETWORK
Dual Ethernet Interface
Two RJ-45 interfaces support 10BASE-T and 100BASE-Tx communication with an integrated switch. Auto negotiation and auto crossover simplify network connection requirements. |
D / SERVICEABILITY
LED & Diagnostic Visibility
Operating, system, communication and I/O LEDs provide local status indication. Diagnostic history can also be read through the applicable programming environment. |
|
03 / ENGINEERING DATA
Technical

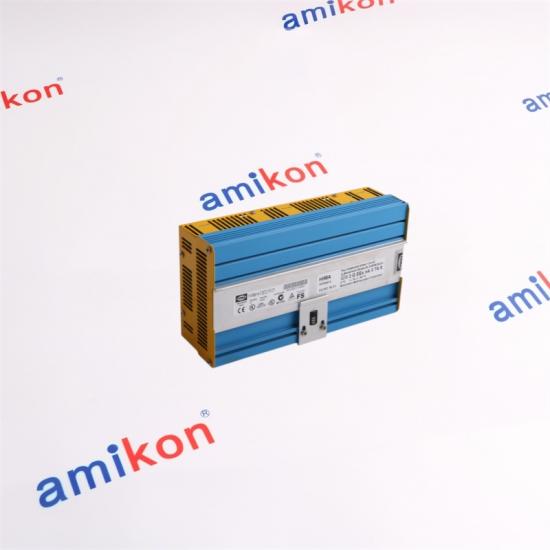

Profile The F2 DO 16 01 is designed for distributed installation on a 35 mm DIN rail. The compact enclosure provides field-level output connectivity while the controller remains responsible for the associated safety application.
MECHANICAL SIZE
207 × 114 × 66 mm
Width × Height × Depth
 |
|
|
PRIMARY DEVICE
F2 DO 16 01

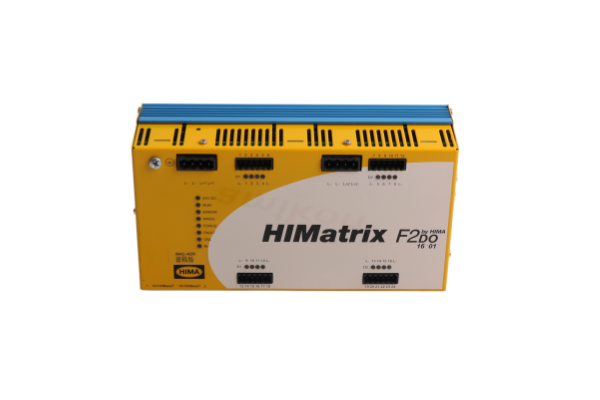

16 digital outputs with 24 VDC operation and two Ethernet interfaces. The standard F2 DO 16 01 is specified for an operating temperature of 0…+60°C. Use when: sixteen distributed digital output channels are required within the HIMatrix architecture.
|
+
|
RELATED VARIANTS
F2 DO 16 014
The F2 DO 16 014 variant is intended for railway applications, with an extended temperature range of -25…+70°C and additional railway vibration and shock requirements. Other HIMatrix Output Options
F2 DO 16 02 provides relay outputs up to a contact potential of 60 V. F2 DO 8 01 provides relay outputs up to 230 V. F2 DO 4 01 supports loads up to 5 A. |
|
Controller
HIMatrix Safety System
|
→ |
F2 DO 16 01
Remote Digital Outputs
|
→ |
Actuators
Distributed Field Loads
|
SafeEthernet |
|
Distributed Actuation
The F2 DO 16 01 can be positioned close to distributed digital loads while the associated safety controller handles the application logic. |
System Replacement
For replacement projects, channel count, output load, wiring arrangement, controller compatibility and temperature conditions should be checked before the existing unit is exchanged. |
Communication Diagnosis
Communication LEDs, I/O indicators and diagnostic history can help maintenance personnel distinguish network, module and output-related problems. |
If an output is overloaded, the affected output is switched off and cyclically switched on again. If communication with the controller is lost, the outputs assume their configured initial values. Inductive loads should be considered carefully, and HIMA recommends using a protective diode directly at the actuator.
|
06 / PROCUREMENT
HIMA F2 DO 16 01
Request availability, quotation and replacement support.
|
|
| Delivery 3–5 days |
Warranty 12 months |
Packaging Brand New |
Delivery Way E-packing / FedEx / EMS / TNT / DHL / UPS |
Payment Term T/T |
|
01 — Is F2 DO 16 01 a suitable replacement when the existing system requires sixteen digital safety outputs?
It can be considered when the replacement application requires the same basic HIMatrix remote-I/O role, sixteen digital outputs, 24 VDC operation and compatible SafeEthernet communication. The existing controller configuration, output loads and wiring should be checked before replacement. |
02 — What should be checked before ordering F2 DO 16 01 for a high-current actuator application?
The output load is critical. The specified maximum is 2 A per output below 40°C and 1 A from 40°C to 60°C, with a maximum 8 A per group. Lamp and inductive loads also have specified limits, so the actual actuator characteristics should be confirmed before purchase. |
|
03 — Is F2 DO 16 01 appropriate for an installation exposed to temperatures above 60°C?
The standard F2 DO 16 01 has an operating range of 0…+60°C. Applications requiring a different environmental class should be evaluated against the available HIMatrix variants rather than assuming that the standard module has the same rating. |
04 — How can F2 DO 16 01 help when a remote output channel repeatedly trips?
The module's specified overload behavior switches the affected output off and cyclically switches it on again. Maintenance should therefore examine the connected load, wiring and current demand rather than treating repeated output shutdown as a simple communication fault. |
|
05 — Should F2 DO 16 01 or F2 DO 16 014 be selected for a railway replacement project?
The F2 DO 16 014 is the railway-oriented variant, with -25…+70°C operation and additional vibration and shock testing requirements. The standard F2 DO 16 01 is specified for 0…+60°C. For railway applications, the environmental and certification requirements should therefore be checked against the exact replacement variant. |
|
|
AFTER-SALES
Return &
Replacement |
