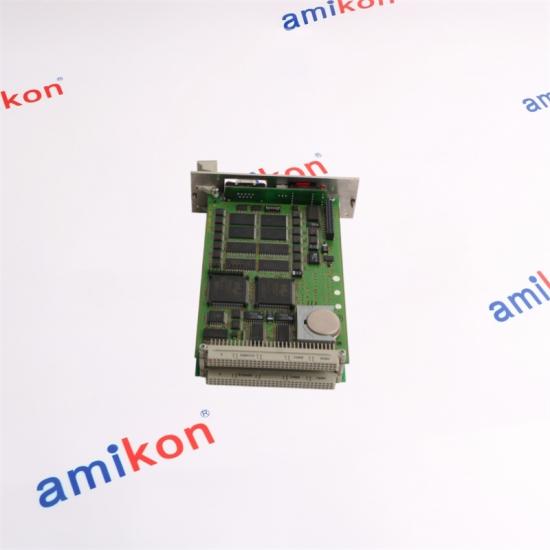

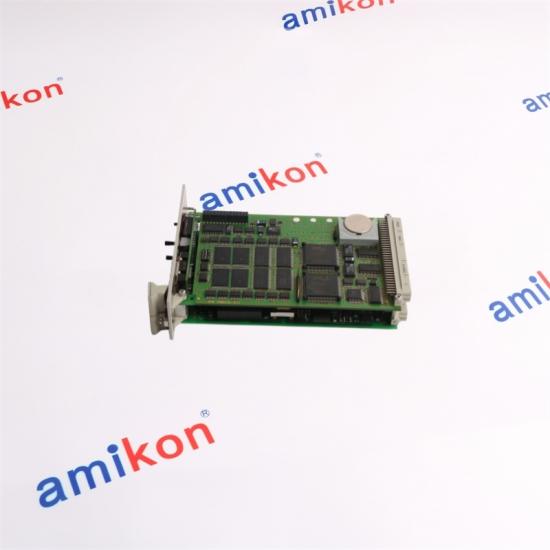

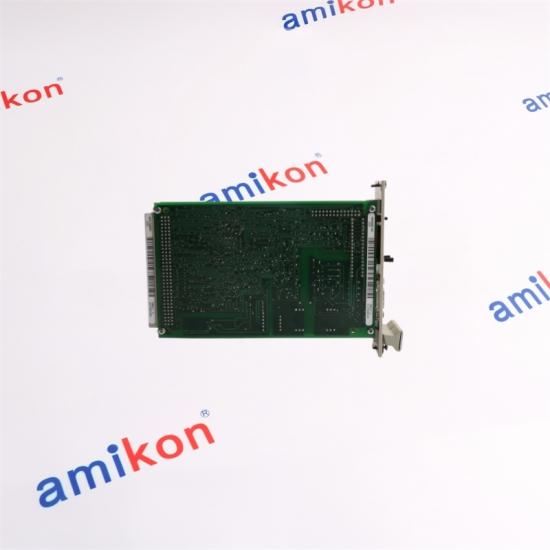

The HIMA F8651X is a central processing module for the H51q-M safety platform. Its architecture combines clock-synchronized processing, protected memory, isolated RS-485 communication and hardware diagnostics in a compact 8-SU module.
DESIGN NOTECompact central processing architecture for safety-related H51q control arrangements.
01 / CORE SPECIFICATION
25
MHz CLOCK FREQUENCY
Intel 386EX, 32-bit microprocessor architecture.
2 ×
RS-485 INTERFACES
Electrically isolated serial interfaces for system communication.
5 V / 2 A
OPERATING DATA
Compact 8-SU construction for rack installation.
Processor
INTEL 386EX, 32-bit
OS Memory
1 MB Flash-EPROM
User Program
1 MB Flash-EPROM
Data Memory
1 MB SRAM
Diagnostic Display
4-digit matrix display
Space
8 SU
Watchdog
24 V output / up to 500 mA
Protection
Short-circuit protected shutdown
02 / ARCHITECTURE
Built around the central processing layer
The F8651X occupies the central-module position within the H51q-M architecture. It provides the processing, memory, diagnostic and watchdog functions required by the central control layer.
○Diagnostics Four-digit display plus status indicators.
△Watchdog Safety-related shutdown output.
COMMUNICATION
RS-485 × 2
Both serial interfaces are electrically isolated. The documented maximum transmission rate is 57,600 bps.
DIAGNOSTIC VIEW
4-DIGIT DISPLAY
Selectable diagnostic information is presented locally, supported by status indication and acknowledgement controls.
03 / RELATED FAMILY
F8650X
Central module in the same H51q/H41q hardware family.
F8651X
Central processing module featured on this page.
F8652X
Another central-module variant within the same hardware family.
SELECTION POINT
CHECK COMPLETE MODEL
Central-module variants are not automatically interchangeable.
04 / APPLICATION FIT
Where F8651X matters
Safety-related control
Designed for the central processing role of H51q-M safety control arrangements.
Industrial process protection
Suitable where deterministic processing, diagnostics and fault-response functions are central to system operation.
Legacy system maintenance
Useful when maintaining established HIMA H41q/H51q installations and replacing compatible central-module hardware.
FAULT / SERVICE SCENARIOS
BATI indication
Check battery condition and maintenance interval before treating the indication as a processing fault.
Communication issue
Verify station addressing, transmission-rate configuration and RS-485 connections.
CPU / system fault
Use the local diagnostic display and status indicators to narrow the fault condition before module replacement.
Module replacement
Confirm the complete model designation and system compatibility before removing or inserting a central module.
05 / INDUSTRIAL SPARE PART SUPPORT
KEEP CRITICAL SYSTEMS MOVING.
Amikon supports industrial automation maintenance with a broad multi-brand inventory approach, helping customers reduce equipment downtime and shorten the search cycle for hard-to-source control components.
Can HIMA F8651X replace an older central module without checking the complete system configuration?
No. The complete system arrangement, module position, operating-system compatibility and exact hardware designation should be verified before replacement. The F8651X is associated with H51q/H41q central-module architectures.
02
What should buyers check when HIMA F8651X shows a battery-related indication?
The module uses battery-backed SRAM and a monitored buffer battery. Battery condition and maintenance timing should therefore be checked before assuming that the processor itself has failed.
03
Why is HIMA F8651X useful when troubleshooting an intermittent communication problem?
It provides two electrically isolated RS-485 interfaces, while the station address and transmission-rate settings are configurable. Checking these parameters together with field wiring can help isolate communication-related faults.
04
What makes HIMA F8651X different from simply adding another I/O module?
The F8651X occupies the central processing role rather than an ordinary I/O position. It combines processor, program memory, data memory, diagnostics, communication interfaces and watchdog functionality.
05
What should be confirmed before purchasing a HIMA F8651X as a maintenance spare?
Confirm the exact part number, required quantity, installed system, module position, operating-system environment and destination. Providing these details helps prevent a visually similar but incompatible central-module selection.
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
Brand New
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
PAYMENT TERM
T/T
07 / REQUEST A QUOTATION
Send the right details — get a faster quotation.
Part Number
Quantity
Destination
Required Date
Machine / System
Please include Part Number, Quantity, Destination, Required Date, and Machine/System when requesting a quotation.
AFTER-SALES
Return / Replacement
Please contact us within 7 days after receiving the items if any issue occurs. Returned items must remain in their original condition and include the specific reason for return. A return or replacement will be processed after the returned goods are received and checked. The buyer is responsible for the shipping costs incurred for the return.
