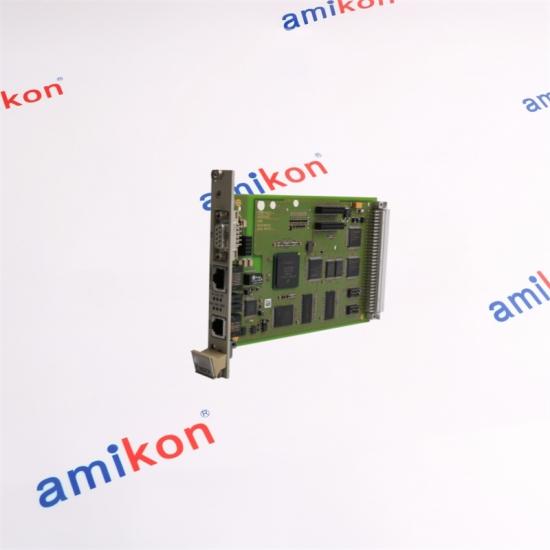

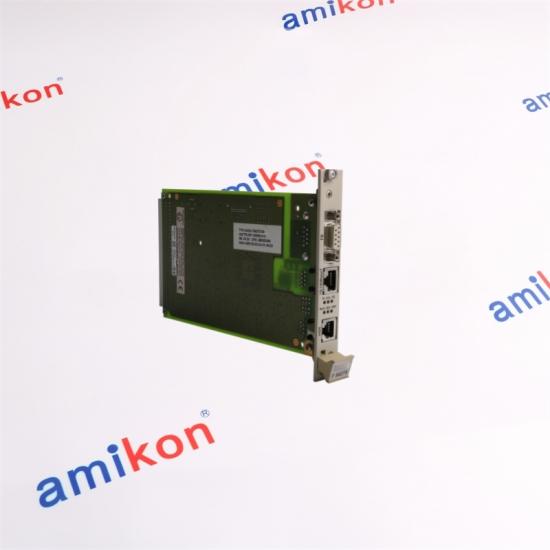

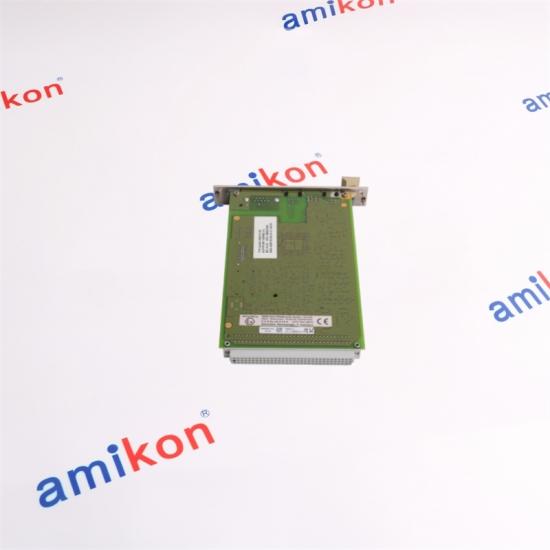

The HIMA F8627X is a communication module for H41q and H51q systems, providing Ethernet-based communication for safeethernet and higher-level industrial communication functions. It provides a 100 Base-T interface with RJ45 connection and supports communication between HIMA systems and Ethernet-based partners.
MODULE PROFILE
F 8627X
System
H41q / H51q
Interface
100 Base-T / RJ45
Form factor
19-inch module
01 / INTERFACE
100 Base-T
RJ45 Ethernet connection
02 / POWER
5 V
Approx. 1 A current consumption
03 / FORMAT
3 HU × 4 WU
19-inch H41q / H51q module
COMMUNICATION LAYER
Built for Ethernet-based HIMA integration
F8627X transfers communication between the H41q/H51q central module and Ethernet network partners through the backplane and Ethernet interface.
Safe Communication
Supports safe communication between H41q/H51q systems through safeethernet in mono or redundant configurations.
Ethernet Services
Depending on the operating-system version, the module supports MODBUS-TCP slave, OPC functions and Ethernet-based ELOP II programming.
Diagnostic Visibility
Six diagnostic LEDs provide operating-status indication, while DIP switches are provided for module-function settings.
HSR Connectivity
A high-speed serial interface is provided for connection to the redundant HSR communication module.
TECHNICAL SNAPSHOT
F8627X at a glance
The communication architecture combines the H41q/H51q backplane with Ethernet connectivity, allowing safety and non-safety communication functions to be handled through the appropriate communication paths.
Processor
32-bit Motorola MPC860T
Operating voltage
5 V
Current consumption
Approx. 1 A
Ethernet
10BaseT or 100Base-TX, IEEE 802.3, RJ45
HSR interface
High-speed serial connection, RJ12
Diagnostic display
6 LEDs
Module size
3 HU × 4 WU
SYSTEM FAMILY
H41q / H51q
The F8627X belongs to the communication architecture used with H41q/H51q programmable electronic systems.
Related H41q / H51q CPU family
F8650X
Safe CPU
F8652X
Safe CPU
F8651X
Non-safe CPU
F8653X
Non-safe CPU
The F8627X communication module can be used with these H41q/H51q CPU families for Ethernet-based communication and programming functions.
APPLICATION LOGIC
Where F8627X adds value
Ethernet system communication
Connects the H41q/H51q communication architecture with Ethernet network partners.
Controller programming
ELOP II TCP can provide Ethernet-based access for supported operating-system versions.
Safeethernet networks
Supports mono or redundant safe communication between compatible H41q/H51q systems.
TROUBLESHOOTING VIEW
Practical fault scenarios
Ethernet link issue
Check the RJ45 connection, network path and corresponding Ethernet configuration.
Communication mismatch
Verify that the required protocol and operating-system capabilities match the installed module.
HSR connection issue
Inspect the HSR connection and the associated redundant communication path.
Diagnostic indication
Use the module's diagnostic LEDs to narrow down the operating condition.
PURCHASE / ENGINEERING FAQ
F8627X questions that matter before replacement
Can F8627X restore Ethernet communication on an existing H41q/H51q installation?
It is intended for Ethernet communication within H41q/H51q architectures. Before replacement, verify the installed system configuration, operating-system version and required communication functions.
Does F8627X support both safe and non-safety communication functions?
Yes. Its functions include safeethernet communication as well as Ethernet-based non-safety functions such as OPC and MODBUS-TCP, subject to the applicable operating-system version.
Which F8627X feature should be checked when upgrading an older system?
Check the operating-system generation because newer capabilities, including MODBUS-TCP slave and ELOP II programming via Ethernet, depend on the applicable software version.
Can F8627X be used in a redundant communication arrangement?
Yes. The module supports safe communication in mono or redundant configurations, with the HSR interface used for connection to the redundant HSR communication module.
What should be checked before ordering a replacement F8627X?
Confirm the exact F8627X designation, H41q/H51q system architecture, required Ethernet functions, operating-system capability and whether the installation uses a redundant HSR communication path.
