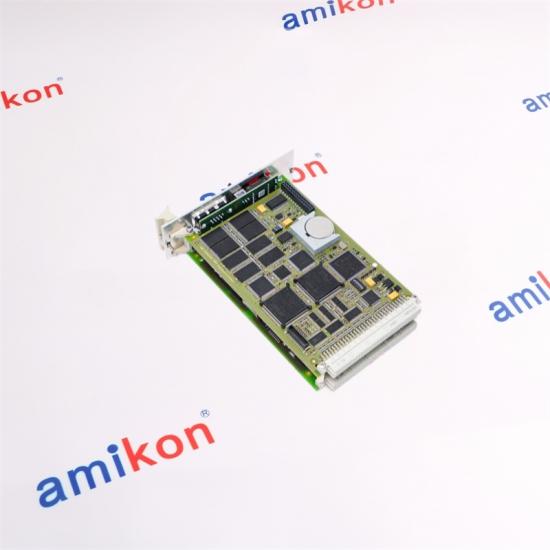

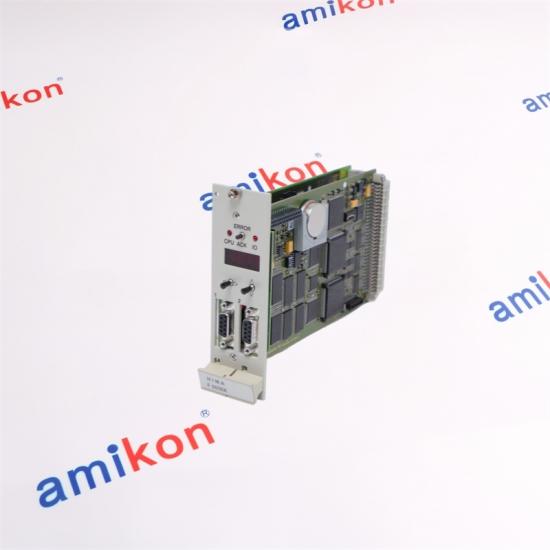

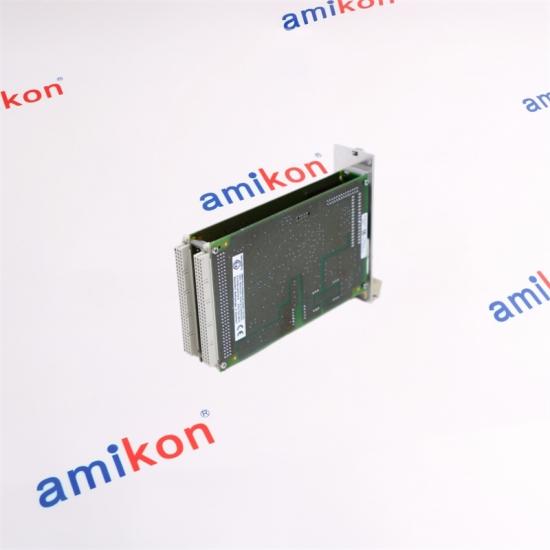

The F8650E is a central processing module designed for the HIMA H51q safety system family. Its dual clock-synchronized processor architecture, isolated serial interfaces and dedicated diagnostic functions are intended for safety-related process control applications where dependable processing and controlled fault response are essential.
PROCESSING
2 × 386EX
32-bit processors
CLOCK
25 MHz
synchronized
POWER
5 V / 2 A
operating supply
SAFETY PROCESSING CORE
F8650E
CENTRAL CPU
RS-485 2 isolated interfaces
DIAGNOSTICS 4-digit matrix display
01 / CORE ARCHITECTURE
Built Around Redundancy
Two clock-synchronized microprocessors provide the central computing architecture of the F8650E. The design is intended for safety-related control within the H51q family.
PROCESSOR
Intel 386EX
32-bit · 25 MHz · two clock-synchronized processors
MEMORY
1 MB + 1 MB
Flash-EPROM and SRAM allocation per microprocessor
COMMUNICATION
2 × RS-485
Galvanically isolated serial interfaces
DIAGNOSTICS
4-Digit
Matrix display with selectable diagnostic information
SAFETY WATCHDOG
24 VDC
MAX. LOAD
500 mA
Safety-related watchdog output with short-circuit protection for controlled fault response.
02 / SYSTEM FAMILY
H51q Architecture
The F8650E belongs to the HIMA H51q family of modular safety automation systems. The architecture separates the central processing section from associated I/O subracks, allowing the control system to be expanded according to the application.
H51q-MS
Modular safety-system configuration
H51q-HS
High-availability system configuration
H51q-HRS
High-reliability system configuration
The H51q system architecture can combine a central rack with associated I/O subracks; the referenced HIMA system configuration allows up to 16 associated I/O subracks.
MECHANICAL
8 TE
Space requirement
OPERATING SUPPLY
5 V
2 A
DISPLAY
4 DIGIT
Matrix diagnostic display
INTERFACE
RS-485 ×2
Galvanically isolated
03 / APPLICATION
Where F8650E Fits
The F8650E is suited to safety-related process automation in H51q installations where central processing, diagnostic visibility and controlled response to detected faults are important.
PROCESS INDUSTRIES
Safety-oriented process control and shutdown functions
PLANT AUTOMATION
Central processing within modular H51q architectures
MAINTENANCE REPLACEMENT
Suitable for existing-system spare-part and lifecycle requirements
DIAGNOSTIC THINKING
Typical Maintenance Triggers
01
Diagnostic display indicates a system condition Check the displayed diagnostic state and follow the established plant troubleshooting procedure.
02
RS-485 communication becomes unreliable Check the associated cabling, interface condition, station configuration and connected equipment.
03
Backup battery reaches its service interval Battery condition should be considered during planned maintenance because the module uses retained system data.
04
Replacement of an existing F8650-family module Verify hardware configuration, cooling arrangement and system compatibility before replacement.
AMIKON INDUSTRIAL AUTOMATION
Keeping critical automation moving.
Amikon supports industrial automation maintenance with access to PLC, DCS, safety-system, robot and monitoring-system components across major automation brands.
For quotation, please provide the exact part number together with quantity, destination, required date and the machine or system where the component will be used.
LEAD TIME
3–5 Days
WARRANTY
12 Months
CONDITION
Brand New
PAYMENT
T/T
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
04 / PURCHASING FAQ
F8650E Questions Before Purchase
Can F8650E replace an F8650 directly in an existing H51q installation?
F8650E is an F8650-family central module for H51q systems, but replacement should not be treated as a simple plug-in exchange. Existing system configuration, cooling arrangement and associated hardware should be checked before installation.
Why does F8650E use two clock-synchronized processors?
The two synchronized 32-bit processors form the central processing architecture of the module and are intended for safety-related operation rather than simply increasing conventional PLC processing speed.
What should buyers check when sourcing a replacement F8650E?
The most important checks are the exact part number, existing H51q configuration, associated rack and I/O arrangement, communication connections, physical installation conditions and required maintenance timing.
How does F8650E help during a system fault investigation?
Its four-digit matrix display and error indication provide local diagnostic visibility. Maintenance personnel can use the displayed state together with the established system troubleshooting procedure to narrow down the affected area.
What battery-related point should be considered when purchasing F8650E for long-term maintenance?
The F8650E uses a backup battery, so lifecycle planning should include battery condition and scheduled replacement. For an installed spare, buyers should also confirm storage and maintenance requirements appropriate to their plant environment.
