GE · MARK VIe CONTROL
CORE ANALOG TERMINAL ASSEMBLY
IS230TCATH1A
A field-side terminal interface for routing analog sensor signals to connected PCAA I/O packs in a Mark VIe control architecture.
|
 PART IDENTIFICATION · ORDER VERIFICATION · EXPORT SUPPORT
|
|
PLATFORM
Mark VIe
|
BOARD TYPE
TCAT Assembly
|
SIGNAL ROLE
Analog Termination
|
ORDER CHECK
Full Suffix Match
|
| 01 |
Product Overview
FIELD CONNECTIONS · ANALOG SIGNAL ROUTING
|

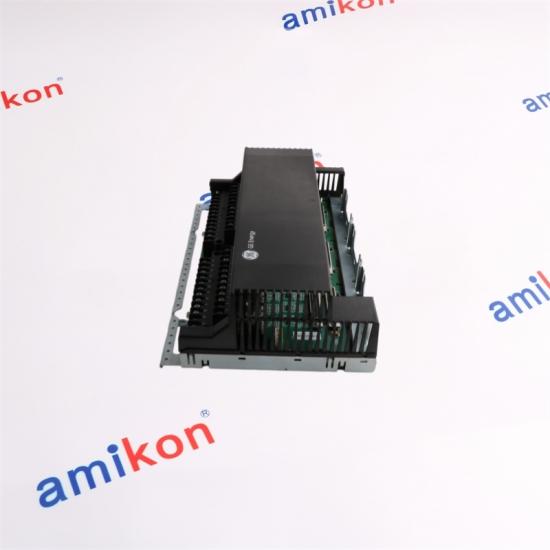

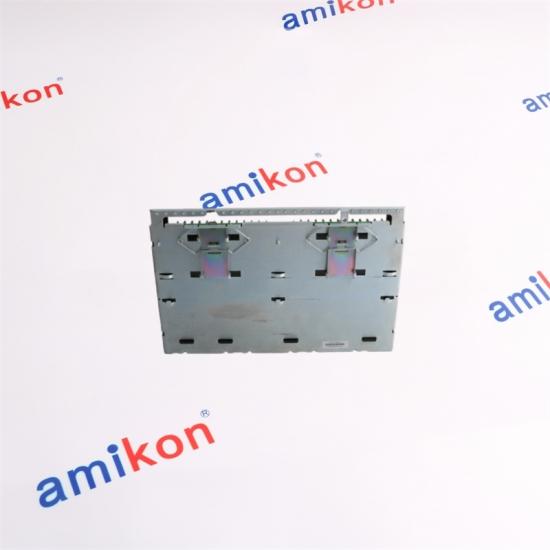

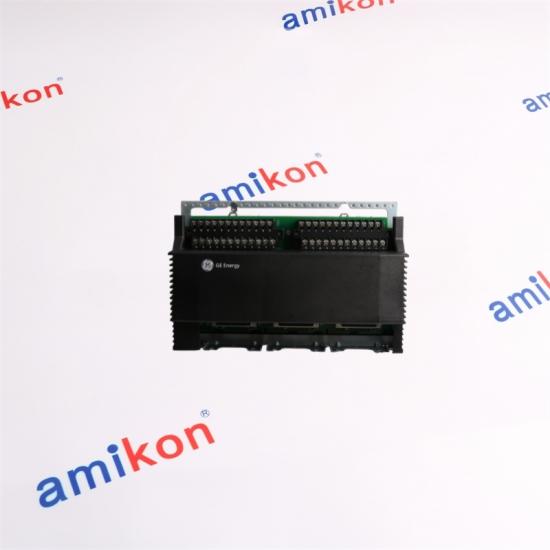

The GE IS230TCATH1A is identified as a TCAT Core Analog terminal board assembly for the Mark VIe platform. It provides field termination points and routes supported signals toward one or more connected PCAA modules. Its role is the physical signal interface rather than a standalone programmable controller.
The board is relevant where a maintenance team needs to preserve the existing terminal layout, signal allocation, and PCAA connection arrangement. Before ordering a replacement, compare the full part number, board labels, connector arrangement, terminal layout, and the installed system configuration.
| Manufacturer | GE (General Electric) |
| Part Number | IS230TCATH1A |
| Product Type | TCAT Core Analog Terminal Board Assembly |
| Control Platform | Mark VIe |
| Signal Groups | 4–20 mA, seismic, LVDT and magnetic pulse-rate inputs |
| Connection Role | Field terminals connected to PCAA I/O packs |
| 02 |
How It Fits the Control System
TERMINAL BOARD · I/O PACK · FIELD DEVICE
|
|
FIELD SENSORS
Signal Source
Transmitter, position sensor, seismic sensor or pulse-rate source, according to the configured application.
|
→ |
IS230TCATH1A
TCAT Interface
Provides field termination points and signal routing to connected PCAA hardware.
|
→ |
CONNECTED I/O
PCAA Modules
Receive routed signals for processing within the configured Mark VIe system.
|
| 03 |
Inspection & Replacement Checklist
CHECK BEFORE YOU PLACE AN ORDER
|
| 01 · Identity
Read the complete IS230TCATH1A label and any visible revision or assembly markings.
|
02 · Terminals
Compare terminal groups, labels, cable connections and the existing field wiring plan.
|
| 03 · System Match
Confirm the Mark VIe configuration and connected PCAA hardware.
|
04 · Application
Check signal type, wiring, shielding, power arrangement and the intended input channel mapping.
|
|
PART MATCHING & AVAILABILITY
Need IS230TCATH1A?
Send the full part number, required quantity, destination and a photo of the installed nameplate if available. Our team can help check the order details before quotation.
|
