GE · LS2100 SERIES
VOLTAGE FEEDBACK SCALING BOARD
DS200NATOG2A
A G2 voltage feedback scaling board designed to attenuate AC and DC voltage signals associated with an SCR bridge in an LS2100 static starter arrangement.
|
 PART NUMBER CHECK · BOARD CONDITION · ORDER CONFIRMATION
|
|
SERIES
LS2100
|
BOARD FUNCTION
Voltage Scaling
|
VARIANT
G2
|
OUTPUT
20-pin Ribbon
|
| 01 |
Product Overview
AC/DC VOLTAGE ATTENUATION · FEEDBACK SIGNAL PATH
|

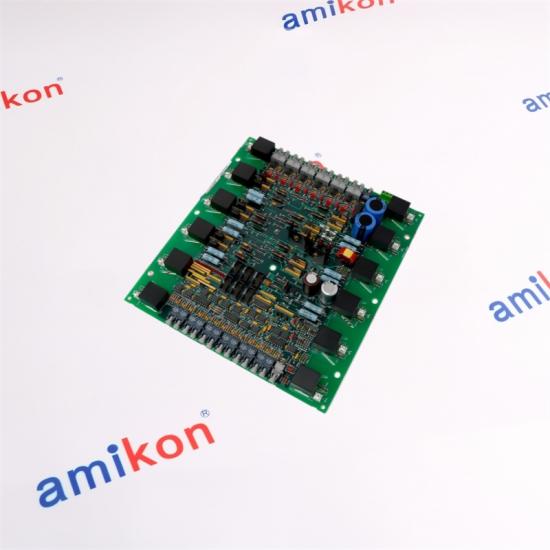

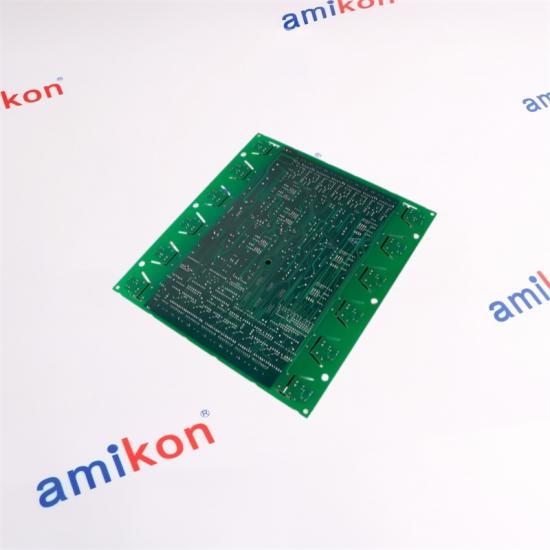

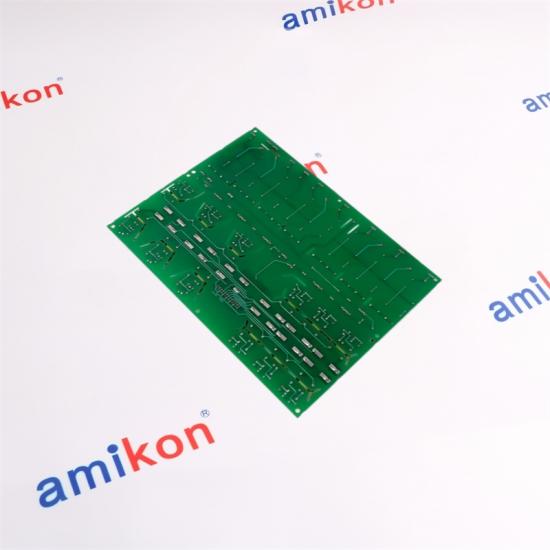

The GE DS200NATOG2A, commonly identified as a NATO voltage feedback scaling board, is associated with the LS2100 static starter control series. Its role is to attenuate AC and DC voltage signals from an SCR bridge so that bridge-voltage feedback can be derived through the intended control circuit.
The G2 variant has a distinctive resistor-and-jumper arrangement. Each of its five resistor strings uses four resistors, with two lower resistor positions replaced by jumpers compared with the G1 arrangement. The five output strings connect through a single 20-pin ribbon header. Metal-oxide varistors are used in the board's output protection arrangement.
| Manufacturer | GE (General Electric) |
| Part Number | DS200NATOG2A |
| Functional Name | Voltage Feedback Scaling Board (NATO) |
| Associated Series | LS2100 Static Starter Control |
| Board Variant | G2 |
| Resistor Network | Five strings; four resistors per string in the G2 arrangement |
| Output Connection | 20-pin ribbon connector |
| Associated Hardware | VME backplane board and gate distribution status board |
| 02 |
Function in the LS2100 System
SCR BRIDGE · NATO BOARD · FEEDBACK CONNECTION
|
|
VOLTAGE SOURCE
SCR Bridge
AC/DC voltage signals are presented to the configured feedback-sensing circuit.
|
→ |
DS200NATOG2A
Voltage Scaling
Attenuates voltage signals through five resistor strings and the configured jumper arrangement.
|
→ |
BOARD CONNECTIONS
Control Feedback Path
The 20-pin ribbon interface connects the five output strings into the associated control arrangement.
|
| G1 comparison
The G1 arrangement is described with six resistors per string.
|
G2 identification
The G2 arrangement substitutes two jumpers for the corresponding lower resistors, leaving four resistors per string.
|
| 03 |
Replacement & Inspection Checklist
IDENTIFY THE VARIANT BEFORE DISPATCH
|
| 01 · Full model
Confirm the DS200NATOG2A marking and compare the full suffix with the removed board.
|
02 · G2 network
Check the resistor count and jumper arrangement against the required G2 configuration.
|
| 03 · Connector
Inspect the 20-pin ribbon header and associated cable condition.
|
04 · System pairing
Verify the VME backplane, gate distribution status board and intended LS2100 configuration.
|
This board is part of a voltage feedback circuit. Installation, testing and configuration should be handled by qualified personnel using the procedures applicable to the specific equipment.
|
PART MATCHING & AVAILABILITY
Sourcing DS200NATOG2A?
Send the full model number, quantity, destination and required date. If possible, include a photo showing the board label and resistor/jumper arrangement for a more accurate part check.
|
