Main-control to bridge-personality coordination in Innovation Series drives

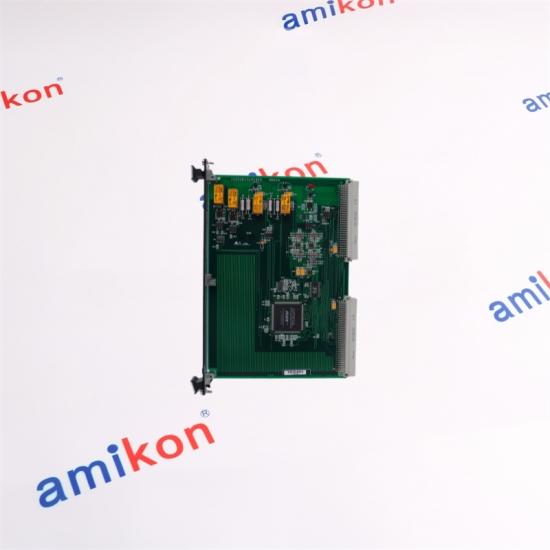

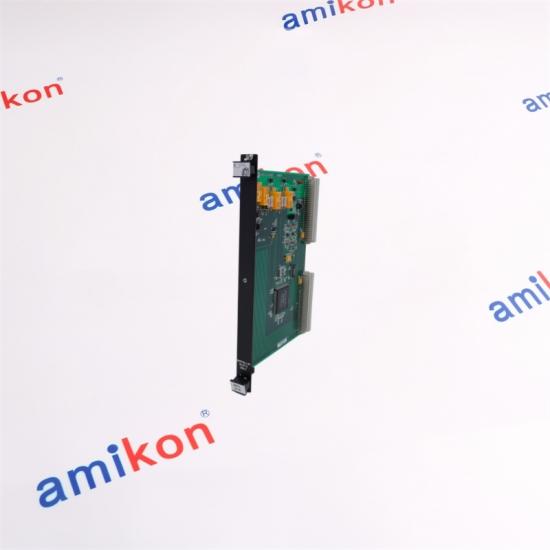

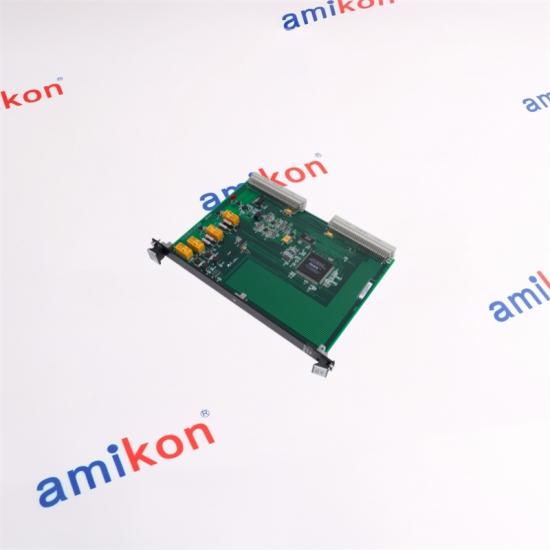

IS200BICLH1B is an IGBT Drive/Source Bridge Interface Board for compatible GE Innovation Series drive assemblies. It forms the control interface between the drive main-control board and a supported bridge-personality board such as BPIA, BPIB or SCNV. Its programmable logic is configured by the main-control CPU during power-up or a hard reset.
Bridge-command path The BICL transfers bridge-control and status signals between the main-control layer and the selected bridge-personality interface. It does not operate as a stand-alone gate driver.
Programmable logic The onboard EPLD receives its operating configuration from the main-control CPU at power-up or after a hard reset. The loaded personality must match BPIA/BPIB or SCNV hardware.
Backplane relationship P1 and P2 connect the board to the control-assembly backplane. Proper seating and the assigned rack position are essential because bridge commands and protective states cross this path.
Contactor and fault handling The interface participates in contactor-control, bridge-fault and status relationships implemented by the supported drive assembly. These paths must be validated before enabling the bridge.
Thermal support The BICL participates in cabinet or bridge thermal coordination, including ambient sensing and variable fan-speed functions where implemented by the drive design.
No live adjustment The board has no routine user-adjustable hardware, test points or field-replaceable fuses. Do not insert, remove or disturb board connections while control power is present.
◈ CONTROL PATH◎ SYSTEM NODE
SYSTEM RELATIONSHIP
Where IS200BICLH1B Fits
Main control board Supplies the correct programmable-logic image and drive commands
IS200BICLH1B Translates control, status and protection paths
BPIA / BPIB / SCNV Matches the installed bridge-power hardware
CABP backplane Provides the rack connection through P1 and P2
A valid replacement requires the full hardware suffix, correct rack position, matching companion boards, preserved cabling and the compatible application configuration.
Amikon's large stock is the core of our supply.
More than 400,000 electronic products across PLC, HMI, drives, servo, CNC, IPC and PG categories.
Current and long-unavailable industrial products are coordinated through strategic purchasing.
A preferred supplier network supports urgent searches when an item is temporarily unavailable.
Worldwide service, multilingual support and order tracking help reduce production interruption.
Seven-day contact window Notify us promptly if an issue is found after receipt.
Original condition Keep the unit unchanged and provide the specific return reason.
Return freight Shipping costs arising from the return are borne by the buyer.
PURCHASING QUESTIONS
IS200BICLH1B FAQ
01
Can IS200BICLH1B work with either BPIA/BPIB or SCNV without configuration checks? No. The programmable-logic image differs between the BPIA/BPIB and SCNV arrangements. Confirm the installed bridge personality and main-control software.
02
What should be checked before replacing IS200BICLH1B? Confirm the complete suffix, dedicated rack position, CABP revision, P1/P2 condition, companion bridge board, drive serial configuration and programmable-logic compatibility.
03
Why might IS200BICLH1B remain inactive after a board exchange? Check whether the main-control CPU completed the EPLD load, whether the board is in the assigned position, and whether companion-board and backplane connections are correct.
04
Can IS200BICLH1B be tested or adjusted while the drive is energized? No routine field adjustment is provided. De-energize the drive, verify stored energy is discharged and apply electrostatic controls before handling the board.
05
What commissioning checks are important for IS200BICLH1B? Verify logic loading, contactor behavior, bridge status, fault feedback, fan or thermal functions and correct communication with the selected BPIA, BPIB or SCNV board.
