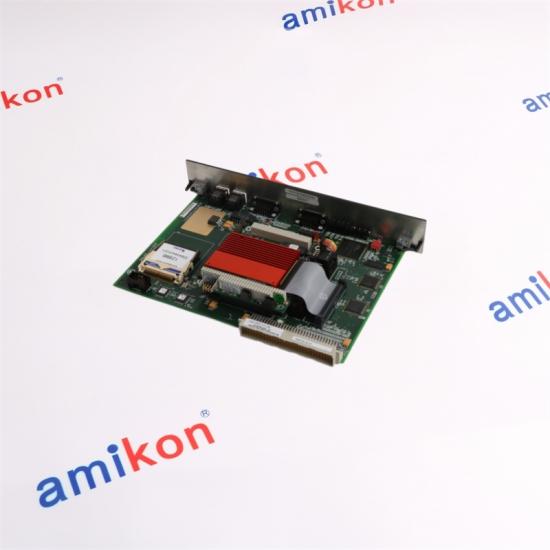

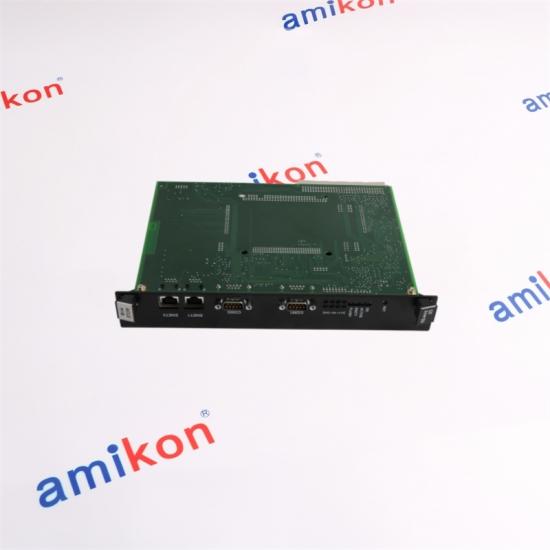

Microprocessor control and Ethernet coordination for compatible GE control racks
IS200ACLEH1A belongs to the Application Control Layer hardware family used in compatible GE drive and excitation-control rack arrangements. The ACL performs microprocessor-based master-control duties across Ethernet and internal rack communication paths. Exact interchangeability depends on the complete assembly code, application, rack slot, attached hardware and configured control release.
Compatible Innovation Series / excitation-control rack
Network interface
Ethernet communication
Serial access
COM1 and COM2 service interfaces
Operating environment
QNX-compatible control architecture
Memory functions
DRAM, flash BIOS, flash code and nonvolatile storage in the ACL family
Backplane path
P1 rack connection
Companion processing
DSPX communication through rack/backplane path
Front diagnostics
OK, ACTIVE, ENET, FLASH and boot/status indications
Configuration access
Ethernet and serial setup paths
Handling
Static-sensitive; de-energized board exchange
FUNCTIONAL DETAIL
Signal Path, Configuration and Service Boundaries
Master-control layer The ACL executes application-level tasks and coordinates communication with the associated control hardware. It is not a field I/O terminal card and must be commissioned as part of the complete rack.
Ethernet and setup Ethernet supports engineering access and controller communication. COM1 participates in early boot and setup activity, while COM2 supports the installed serial arrangement.
Backplane coordination The P1 connection carries the internal rack relationship. In supported assemblies, communication with the DSPX control board occurs through the rack path and dual-port memory functions.
Flash protection The module must not be reset or powered down while the FLASH indication is active. Interrupting a flash write can corrupt stored content and prevent a normal restart.
Status interpretation OK indicates watchdog health, ACTIVE reflects processor memory activity, ENET shows network transmission and the status indications display boot or application fault patterns.
Replacement discipline Match the complete IS200ACLEH1A marking, attached assembly, slot allocation, jumper positions, operating image and project configuration. Similar ACL hardware is not automatically interchangeable.
◈ CONTROL PATH◎ SYSTEM NODE
SYSTEM RELATIONSHIP
Where IS200ACLEH1A Fits
Application layer Runs supervisory control tasks and communication services
DSPX board Performs high-speed digital control processing
CABP backplane Routes power and internal rack signals
Ethernet / serial paths Engineering, boot, setup and external communication
A valid replacement requires the full hardware suffix, correct rack position, matching companion boards, preserved cabling and the compatible application configuration.
Amikon's large stock is the core of our supply.
More than 400,000 electronic products across PLC, HMI, drives, servo, CNC, IPC and PG categories.
Current and long-unavailable industrial products are coordinated through strategic purchasing.
A preferred supplier network supports urgent searches when an item is temporarily unavailable.
Worldwide service, multilingual support and order tracking help reduce production interruption.
Seven-day contact window Notify us promptly if an issue is found after receipt.
Original condition Keep the unit unchanged and provide the specific return reason.
Return freight Shipping costs arising from the return are borne by the buyer.
PURCHASING QUESTIONS
IS200ACLEH1A FAQ
01
Can IS200ACLEH1A be installed in any free rack position? No. ACL hardware is assigned to a specific compatible rack position. An incorrect position can damage electronics or prevent initialization.
02
What should be preserved before an IS200ACLEH1A exchange? Preserve the complete assembly code, current configuration, network settings, operating image, jumper positions, companion-board arrangement and fault state.
03
Why should IS200ACLEH1A not be powered down while FLASH is active? The active indication means a flash write is underway. Interrupting that operation can corrupt stored content and require recovery before the controller can restart.
04
What do the front indications on IS200ACLEH1A help verify? They support checks of watchdog health, processor activity, Ethernet transmission, flash activity and boot or application fault stages.
05
What should be checked if IS200ACLEH1A communicates over serial but not Ethernet? Check the Ethernet cable type, shielding jumper arrangement, IP configuration, link state, rack power and the installed control configuration.
