Drive LAN communication, local display and programmer interface

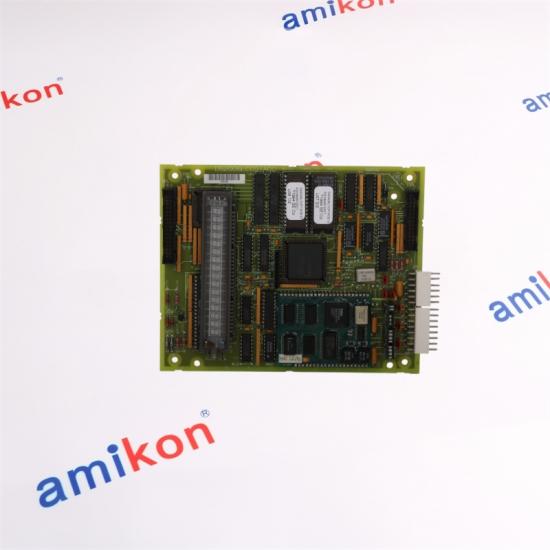

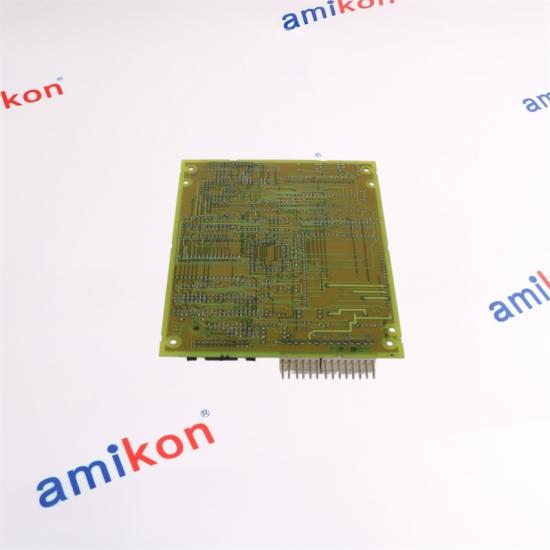

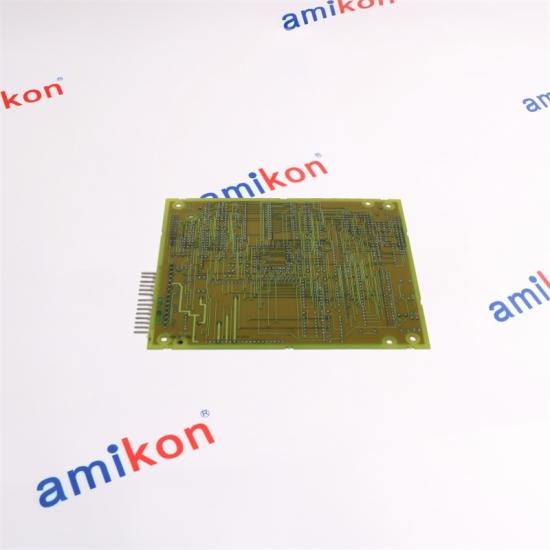

DS200SLCCG2A is a LAN Communications Card used in compatible GE drive and exciter control assemblies. Group 2 provides DLAN communication circuitry without the ARCNET network circuitry used by Group 1. The board carries isolated and non-isolated communication circuits, a LAN Control Processor, replaceable program EPROMs and the interface for the programmer module.
Power and I/O among supply/interface, terminal, SDCC and SLCC
3PL path
Inputs from the DS200SDCC
10PL path
LAN I/O terminal-board connection
Configuration
Application-specific hardware jumpers
FUNCTIONAL DETAIL
Signal Path, Configuration and Service Boundaries
DLAN-only Group 2 Group 2 is intended for DLAN service. It does not carry the ARCNET network circuitry of Group 1, so a replacement must match the installed network architecture rather than relying only on the SLCC name.
LAN Control Processor The LCP manages board-level communication functions. Its operating code resides in the U6 and U7 EPROM devices, making the installed software set an important part of replacement matching.
SDCC relationship The SLCC mounts directly on four standoffs on the Drive Control Card. Connector 3PL carries SDCC input signals, while the board-to-board mechanical alignment protects the mating connectors.
Local programmer path The programmer module connects through KPPL. Its keypad and cover fit over the SLCC, and the sixteen-position alphanumeric display presents operating and diagnostic characters.
External LAN path Connector 10PL links the SLCC with the compatible LAN I/O terminal board. Cable orientation, terminal-board type and DLAN topology must remain consistent with the installed drive.
Power/interface path Connector 2PL carries regulated supply and interface signals among the associated power/interface board, terminal board, SDCC and SLCC. The complete card group must be de-energized before separation.
◈ CONTROL PATH◎ SYSTEM NODE
SYSTEM RELATIONSHIP
Where DS200SLCCG2A Fits
DS200SDCC Drive Control Card and physical host for the SLCC
DS200SLCCG2A DLAN communication processing and programmer display
531X307LTB LAN I/O terminal path through 10PL
Programmer module Keypad and local alphanumeric operating interface
A valid replacement requires the full hardware suffix, correct rack position, matching companion boards, preserved cabling and the compatible application configuration.
