01 / NETWORK SIDE
10/100 Mbps
RJ45 Ethernet interface for connecting compatible serial devices to an Ethernet network.
|
02 / SERIAL SIDE
RS-232 / 485
Serial communication options support integration with compatible legacy equipment.
|
03 / POWER
12/24 VDC
External DC supply; confirm the existing panel supply and wiring before replacement.
|
|
Bridge Existing Serial Equipment to Ethernet

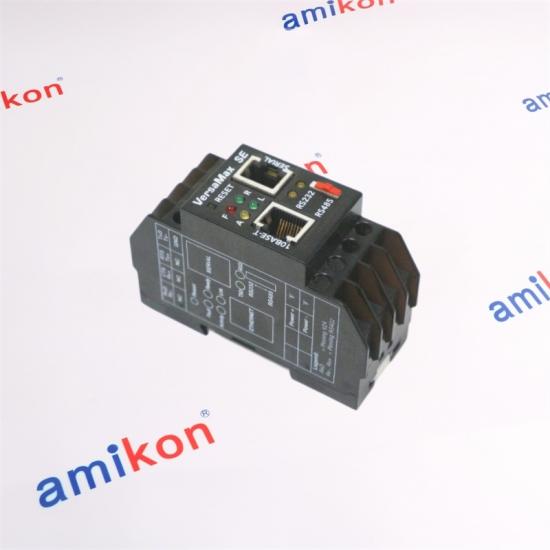

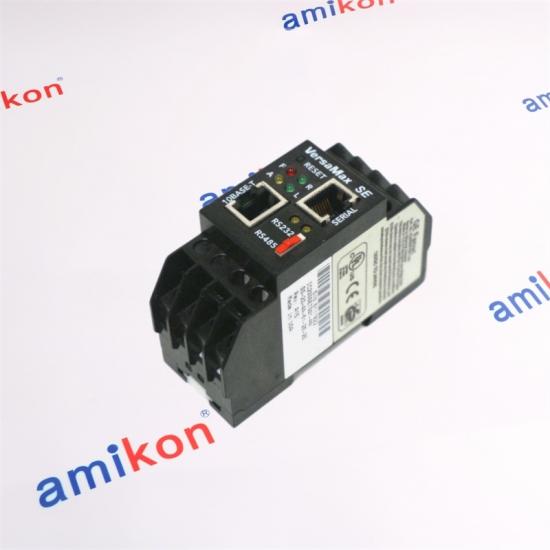

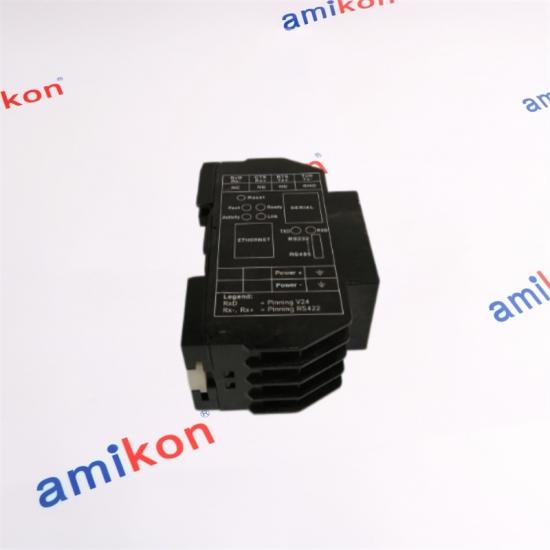

The IC200SET001 family provides a communication path between compatible serial devices and an Ethernet network. It is useful where an installation needs network access for supported controller communications without replacing every serial-side device. Communication configurations include Ethernet SRTP to SNP and Modbus TCP to a Modbus serial slave, depending on the loaded firmware and application configuration. The serial interface selection and protocol must match the connected equipment. BEFORE YOU ORDER
Confirm the complete suffix (-HE), installed firmware/protocol, serial wiring mode, external supply, and the equipment you intend to connect.
|
APPLICATION CHECKPOINTS
◆ Ethernet connection through RJ45
◆ Serial communication using supported RS-232 or RS-485/422 configuration
◆ Compatible SRTP/SNP or Modbus communication setup
◆ DIN-rail or panel mounting in a suitable enclosure
Protocol availability depends on firmware and configuration. Do not assume every protocol is active simultaneously.
|
| MODEL | PRIMARY ROLE | WHEN TO CONSIDER IT |
| IC200SET001-HE | Serial-to-Ethernet adapter | For compatible serial devices requiring an Ethernet communication path. |
| IC200PNS001-AC | PROFINET remote I/O scanner | For a VersaMax remote I/O node managed by a PROFINET IO controller. |
| IC200PWR102K | Expanded AC power supply | For providing 5 VDC and 3.3 VDC backplane power to compatible modules. |
|
