01 / NETWORK PORTS
2 × RJ45
Two 10/100 Mbps copper Ethernet interfaces.
|
02 / I/O DATA
2,880 bytes
Up to 1,440 bytes of input and 1,440 bytes of output data per station.
|
03 / NODE CAPACITY
8 Modules
Supports up to eight VersaMax I/O modules in one station.
|
|
A Remote I/O Node on PROFINET

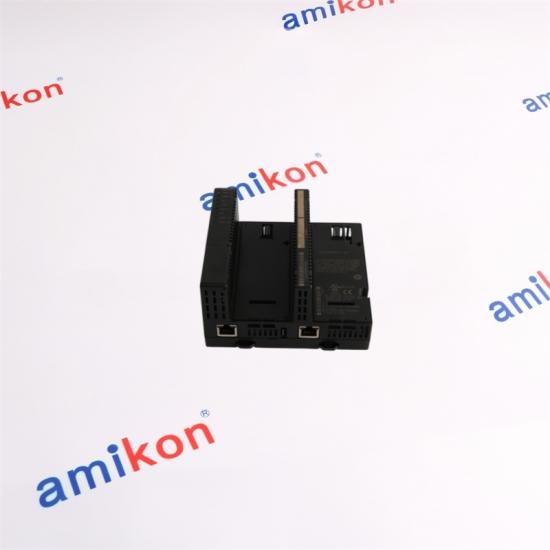

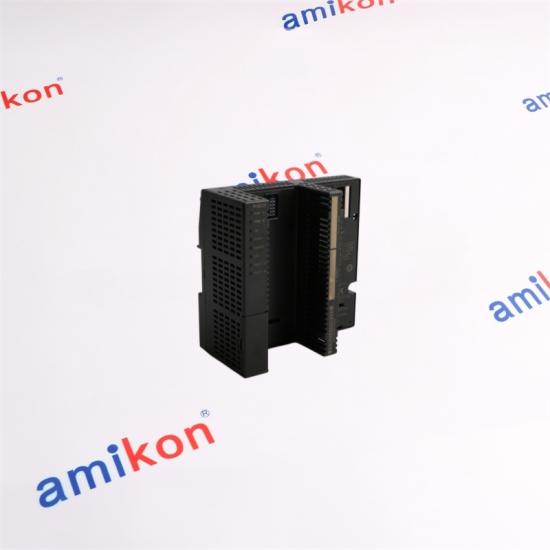

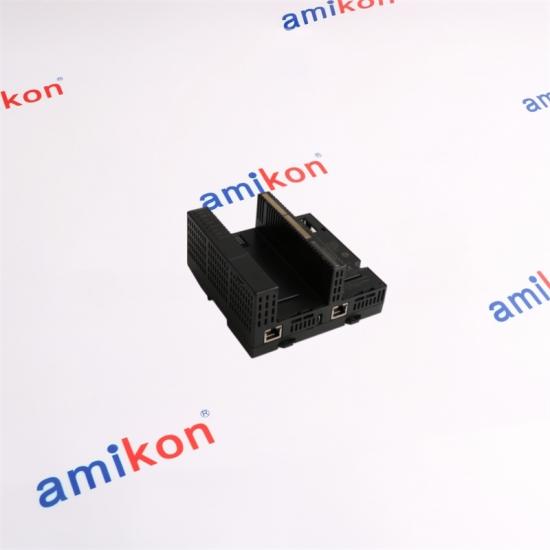

The IC200PNS001-AC connects a VersaMax remote I/O station to a PROFINET IO controller. It scans the station's modules, collects input data, transfers output data and manages communication between the controller and the remote node. The AC revision corresponds to firmware release 2.00, which adds support for hot-standby CPU redundancy through PROFINET I/O. The system must use compatible controller hardware, firmware and engineering software for this feature. ENGINEERING CHECK
Verify the PROFINET controller, firmware versions, I/O module mix, power-supply compatibility, network topology and configured I/O sizes before ordering or commissioning.
|
NETWORK DESIGN NOTES
◆ Linear, star or ring network arrangements, subject to the design
◆ Media Redundancy Protocol (MRP) client operation
◆ Standard PROFINET alarm and diagnostic reporting
◆ Maintenance mode and firmware upgrade through the USB port
The USB connector is intended for firmware updates, not permanent connection. The PNS module manages the configured I/O state if network communication is lost.
|
| PART NUMBER | FUNCTION | SELECTION PRIORITY |
| IC200PNS001-AC | PROFINET remote I/O scanner | PROFINET controller, station modules, firmware and I/O capacity. |
| IC200SET001-HE | Serial-to-Ethernet adapter | Serial protocol, wiring mode, Ethernet setup and firmware option. |
| IC200PWR102K | Expanded AC power supply | AC input selection, backplane load and 3.3 V / 5 V current demand. |
|
