01 / AC INPUT
120/240 VAC
85–132 VAC or 176–264 VAC input range.
|
02 / BACKPLANE OUTPUT
5 V + 3.3 V
Provides DC power to compatible VersaMax station modules.
|
03 / OUTPUT LIMIT
1.5 A Total
Maximum combined output current; 3.3 V output up to 1.0 A.
|
|
Powering the VersaMax Backplane

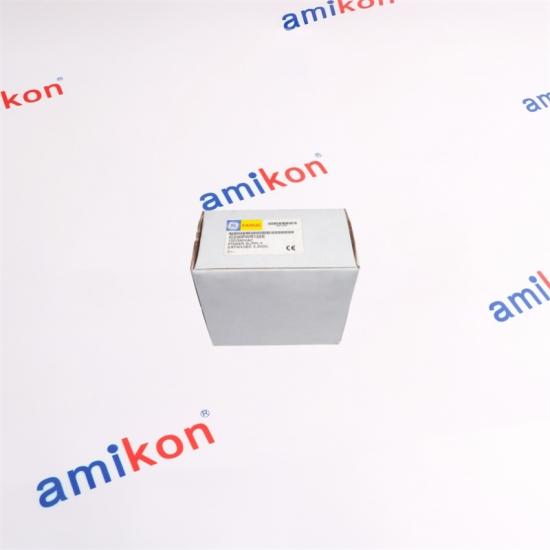

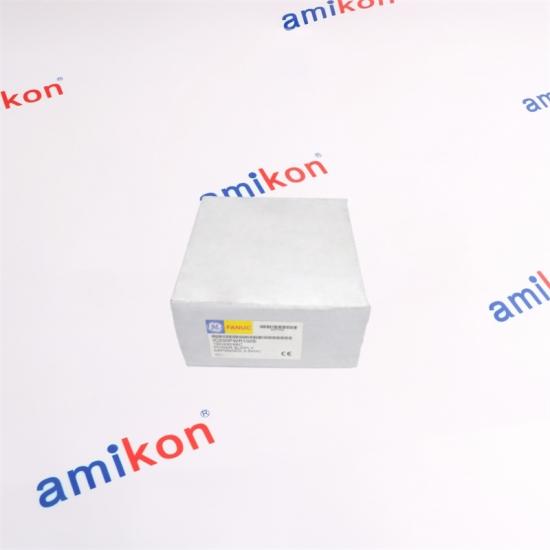

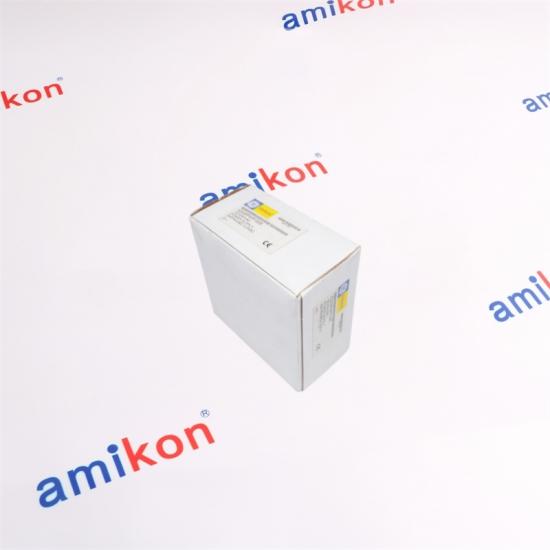

The IC200PWR102K is an expanded AC power supply for compatible VersaMax stations. It converts the selected AC input into 5 VDC and 3.3 VDC outputs for the backplane and connected modules. The unit operates at 47–63 Hz and has a 27 VA input-power rating. Its specified hold-up time is 20 ms. Short-circuit and overload protection are provided, but these features do not replace correct load calculation and installation practices. IMPORTANT INPUT-VOLTAGE CHECK
A jumper selects nominal 120 VAC operation. For nominal 240 VAC operation, the jumper must be removed. Confirm the actual supply and jumper setting before energizing the unit.
|
LOAD & INSTALLATION NOTES
◆ 5 VDC and 3.3 VDC outputs
◆ 1.5 A maximum total output current
◆ 1.0 A maximum on the 3.3 VDC output
◆ 20 ms specified hold-up time
The combined 5 V and 3.3 V load must remain within the 1.5 A total limit. Check the current demand of every installed module and follow safe isolation procedures before replacing the supply.
|
| MODEL | FUNCTION | WHAT TO VERIFY |
| IC200PWR102K | Expanded AC power supply | AC range, jumper selection, total output current and module load. |
| IC200PNS001-AC | PROFINET remote I/O scanner | Controller compatibility, firmware, network type and I/O capacity. |
| IC200SET001-HE | Serial-to-Ethernet adapter | Serial protocol, wiring, Ethernet settings and external supply. |
|
CUSTOMER SUPPORT
Responsive assistance for urgent automation parts enquiries.
|
Fast, Reliable Industrial Parts Supply
AMIKON sources new and discontinued automation parts to help customers address equipment needs and reduce avoidable downtime.
|
WAREHOUSE & DELIVERY
Order coordination with an emphasis on reliability and timely dispatch.
|
|
Sales Manager
Miya zheng
|
✉ Email Sales | sales@amikon.cn 86-18020776792 |
|
Returns & Replacement
Please contact us within 7 days after receipt if an issue occurs. Returned items must remain in original condition, with the reason for return stated clearly. A refund or replacement can be arranged after the returned item is received and checked. The buyer is responsible for return shipping costs.
|
Order Preparation
Include the full model suffix, input voltage, station load details, quantity, destination and required date when enquiring.
|
