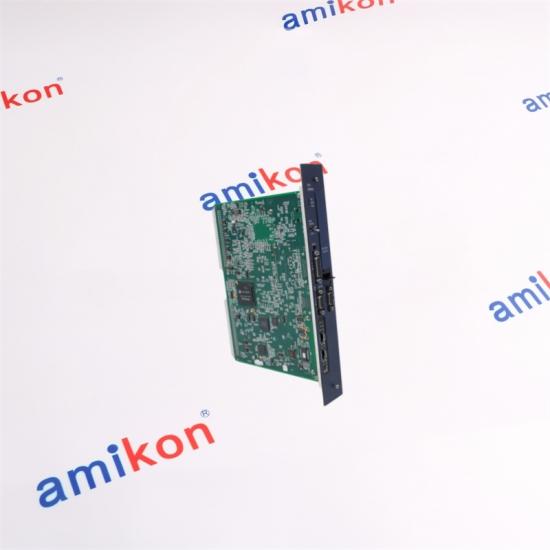

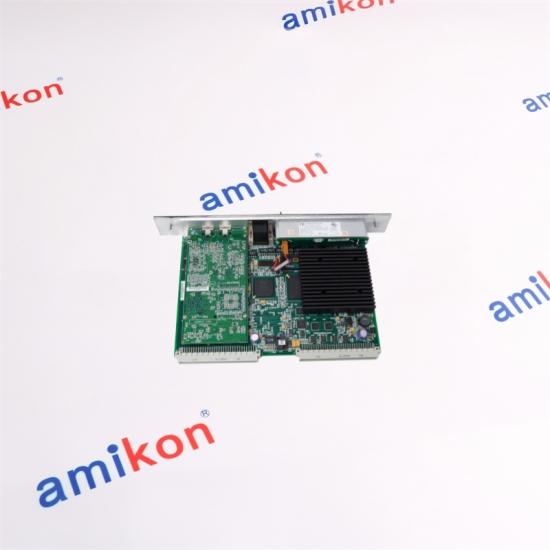

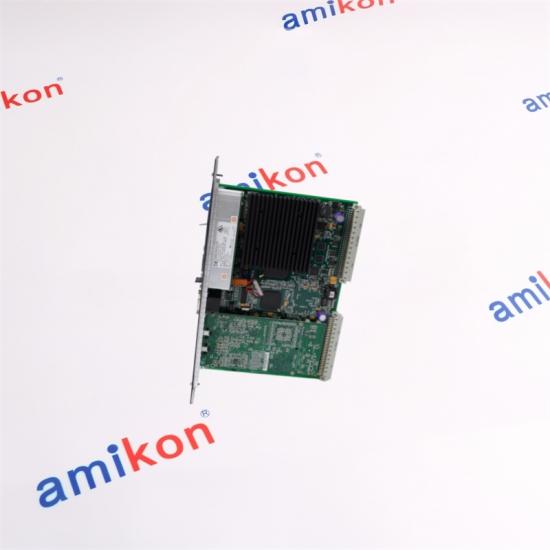

The GE IC698CPE030 is a PACSystems RX7i Central Processing Unit designed for real-time control of machines, processes and material-handling systems. The CPU uses a 600 MHz Pentium-M processor and provides 64 Mbytes of battery-backed user memory together with 64 Mbytes of non-volatile flash user memory for program, configuration and user data storage. The controller communicates with I/O and smart option modules through the rack-mounted VME64 backplane and provides embedded Ethernet plus independent serial communications for programming, HMI and device connectivity. |
CORE PLATFORM
RX7i
|
|
01
600 MHz Processing
The IC698CPE030 uses a 600 MHz Pentium-M processor for real-time control tasks within the RX7i platform. |
02
High-Capacity Memory
64 MB of battery-backed user memory and 64 MB of non-volatile flash user memory support substantial application and data requirements. |
03
Integrated Communications
Two Ethernet ports and three independent serial ports provide multiple communication paths for control, programming, HMI and device connectivity. |
|
VME64
Rack Backplane
|
10/100 Mbps
Embedded Ethernet
|
Floating Point
Supported
|
512 Blocks
Maximum Program Blocks
|
| Product Family | PACSystems RX7i |
| Product Type | Central Processing Unit |
| Processor | 600 MHz Pentium-M |
| Battery-Backed User Memory | 64 Mbytes |
| Non-Volatile Flash User Memory | 64 Mbytes |
| Ethernet Interface | 2 × RJ45, 10/100 Mbps Ethernet |
| Serial Ports | 3 independent on-board serial ports |
| Serial Interfaces | RS-232 / RS-485 / dedicated Ethernet Station Manager RS-232 |
| Serial Protocols | Modbus RTU Slave, SNP, Serial I/O |
| Backplane Architecture | VME64 standard |
| Boolean Execution Speed | 0.069 ms per 1,000 Boolean contacts/coils, typical |
| Program Blocks | Up to 512; maximum block size 128 KB |
| Discrete %I / %Q | 32 Kbits |
| %AI / %AQ | Configurable up to 32 Kwords |
| Web / FTP Connections | Up to 16 combined connections |
| Time Synchronization | SNTP |
| 5 VDC Current | 3.2 A nominal |
| +12 VDC Current | 0.003 A nominal |
| -12 VDC Current | 0.003 A nominal |
| Operating Temperature | 0°C to 50°C without fan tray; up to 60°C with fan tray |
| Storage Temperature | -40°C to +85°C |
The IC698CPE030 is part of the PACSystems RX7i CPU family. Within the CPE030/CPE040 group, the CPE030 uses a 600 MHz processor while the CPE040 provides a higher 1.8 GHz processing level.
The CPE030 is intended for RX7i systems where substantial user memory, integrated Ethernet communications, serial connectivity and VME64 rack integration are required.
For an existing RX7i installation, replacement selection should consider the installed CPU family, application memory requirements, firmware compatibility, communication configuration and rack environment.
|
IC698CPE030
600 MHz Pentium-M CPU
|
IC698CPE040
1.8 GHz Pentium-M CPU
|
|
REAL-TIME CONTROL
IC698CPE030 is suited to RX7i control architectures used for machine control, process control and material-handling applications. Its processing capacity and memory architecture support larger control programs and data requirements within the RX7i environment. The integrated Ethernet interfaces can support programmer, HMI and network communication functions, while the serial interfaces provide additional connectivity for external equipment and service functions. |
REPLACEMENT CHECKPOINTS
|
Maintenance point: The IC698CPE030 uses battery-backed user memory. Battery condition should therefore be considered during long-term maintenance planning, particularly where retained user program and data are required after loss of rack power.
|
AMIKON SUPPLY SERVICE
Delivery: 3–5 days |
REQUEST A QUOTATION
Please provide the following details when requesting a quotation: Part Number, Quantity, Destination, Required Date, Machine/System. |
IC698CPE030 provides 64 Mbytes of battery-backed user memory and 64 Mbytes of non-volatile flash user memory. For replacement planning, the installed application should also be checked for CPU family, firmware and communication configuration rather than relying only on memory capacity.
Yes. IC698CPE030 has two RJ45 Ethernet ports and three independent on-board serial ports. The serial interfaces support RS-232 and RS-485 functions, including a dedicated RS-232 Ethernet Station Manager port.
The IC698CPE030 uses a 600 MHz Pentium-M processor, while IC698CPE040 uses a 1.8 GHz Pentium-M processor. Selection should therefore be based on the installed application's processing requirements, existing configuration and required compatibility rather than processor speed alone.
Because IC698CPE030 uses battery-backed user memory, battery condition is an important maintenance consideration. The battery system and memory-retention requirements should be checked before replacing the CPU itself.
The specified operating range for IC698CPE030 is 0°C to 50°C without a fan tray, with operation up to 60°C when the required fan tray arrangement is provided. Thermal conditions should therefore be verified before installing a replacement CPU in a high-temperature cabinet.
