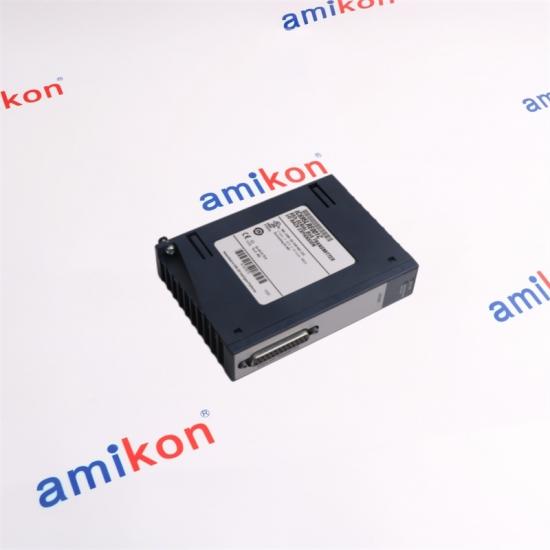

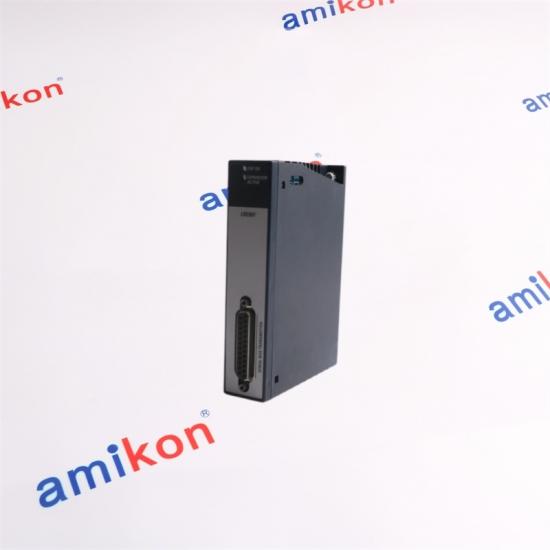

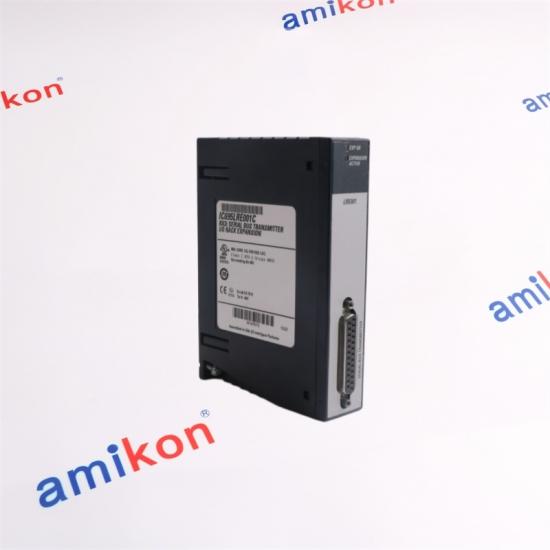

The GE IC695LRE001 is a Serial Bus Transmitter Module for the PACSystems RX3i platform. It provides the communication interface between an RX3i Universal Backplane and serial expansion or remote backplanes based on IC694 or IC693 hardware. The module translates the signal levels present on the Universal Backplane to the levels required by the serial expansion backplane. It is installed in the dedicated expansion connector at the right end of the RX3i Universal Backplane. Two green status indicators provide a direct visual indication of backplane power and expansion-bus communication activity. |
KEY ROLE
Serial Expansion
RX3i Universal Backplane
↓
IC695LRE001
↓
Serial Expansion / Remote Backplane
|
|
01
RX3i Expansion Interface
Provides the dedicated link between an RX3i Universal Backplane and compatible serial expansion or remote backplanes. |
02
Long-Distance Expansion
Supports total expansion cable lengths up to 15 m for expansion backplanes and up to 213 m for remote backplanes. |
03
Status Monitoring
EXP OK and Expansion Active LEDs provide local indication of module power and expansion-bus activity. |
| Product Type | Serial Bus Transmitter Module |
| Product Family | PACSystems RX3i |
| Backplane Current | 5.0 Vdc: 132 mA; 3.3 Vdc: 0 mA |
| Effective Data Rate | 500 kB/s when the expansion bus includes remote backplanes |
| Expansion Cable Length | 15 m (50 ft) for expansion backplanes; 213 m (700 ft) for remote backplanes |
| Electrical Interface | Non-isolated differential communications |
| Station Manager Port | RS-232 DCE, 1200 to 115200 bps |
| Status LEDs | EXP OK; Expansion Active |
| Installation Position | Dedicated expansion connector at the right end of the RX3i Universal Backplane |
The IC695LRE001 belongs to the PACSystems RX3i expansion architecture and performs a dedicated transmission function rather than serving as a conventional discrete or analog I/O module.
Its role is particularly relevant in installations that retain serial expansion or remote backplanes based on IC694 or IC693 hardware while using an RX3i Universal Backplane as the main control platform.
When replacing an existing unit, the backplane architecture, expansion method, cable arrangement and required transmission distance should be checked together rather than selecting the part by appearance alone.
|
SYSTEM EXPANSION
IC695LRE001 is suited to RX3i architectures where serial expansion or remote backplanes must remain connected to the Universal Backplane. The available cable distance makes it practical for distributed rack arrangements within the specified limits. |
FAULT / REPLACEMENT SCENARIOS
A replacement should be considered when the expansion link no longer establishes communication, the module does not show the expected EXP OK or Expansion Active indication, or the existing transmitter is suspected after cable and backplane checks. |
Installation note: The IC695LRE001 must not be hot-inserted. Power must be removed before installing or removing the module. Expansion cables must not be attached or removed while the expansion rack is powered.
|
AMIKON SUPPLY SERVICE
Delivery: 3–5 days |
QUOTE REQUEST
For a quotation, please provide: Part Number, Quantity, Destination, Required Date, Machine/System. |
Yes. IC695LRE001 is specifically designed to provide communication between an RX3i Universal Backplane and serial expansion or remote backplanes using IC694 or IC693 hardware, subject to the applicable expansion architecture and cable limits.
Check the Universal Backplane arrangement, the dedicated expansion position, expansion-cable condition and the connected expansion or remote backplane configuration. The module is not intended for hot insertion, so power must be removed before replacement.
The specified maximum differs by application. The maximum total expansion cable length is 15 m for expansion backplanes and 213 m for remote backplanes. The actual system arrangement should therefore be confirmed before selecting the replacement configuration.
The Expansion Active LED indicates expansion-bus communication activity. When the module is communicating with expansion backplanes, the indicator is on. The EXP OK LED separately indicates that 5 Vdc backplane power is present at the module.
No. The specified communication interface is non-isolated differential communications. This should be considered when evaluating a replacement for an existing installation and when reviewing the overall grounding and communication arrangement.
Please contact us within 7 days after receiving the items if any issue occurs. Returned items should remain in their original condition and include the specific reason for the return. After the returned goods are received, we can arrange a return or replacement according to the case. The buyer is responsible for shipping costs incurred during the return process.
