| IC693CPU323 | Overview | Specifications | Series | FAQ | Related Models |
| Parameter | IC693CPU323 Specification |
| CPU type | 10-slot baseplate with embedded CPU |
| Total baseplates per system | 1 |
| Processor | 80188 |
| Processor speed | 10 MHz |
| Typical scan rate | 0.6 ms per 1K of logic (boolean contacts) |
| User program memory | 12 KB maximum; 6 KB prior to release 7 |
| Discrete input points %I | 320 maximum, combined input/output limitation |
| Discrete output points %Q | 320 maximum, combined input/output limitation |
| %G global memory | 1280 bits |
| %M internal coils | 1024 bits |
| %T temporary coils | 256 bits |
| %S system status references | 128 bits |
| %R register memory | 1024 words |
| %AI analog input memory | 64 words |
| %AQ analog output memory | 32 words |
| Timers / counters | 340 |
| Shift registers | Yes |
| Built-in port | 1 port through the PLC power-supply connector; supports SNP slave and SNP-X slave protocols |
| Communication options | LAN multidrop; supports Ethernet, FIP, Profibus, GBC, GCM and GCM+ option modules |
| Operating temperature | 0 to 60°C ambient / 32 to 140°F |
| Power requirement | 430 mA from +5 VDC supply |
| Memory storage | RAM with optional EPROM or EEPROM |
| Battery-backed clock | No |
| Interrupts | No |
|
Embedded CPU Architecture

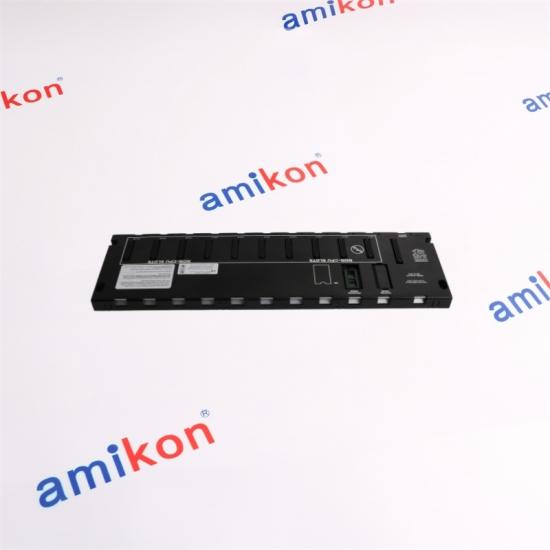

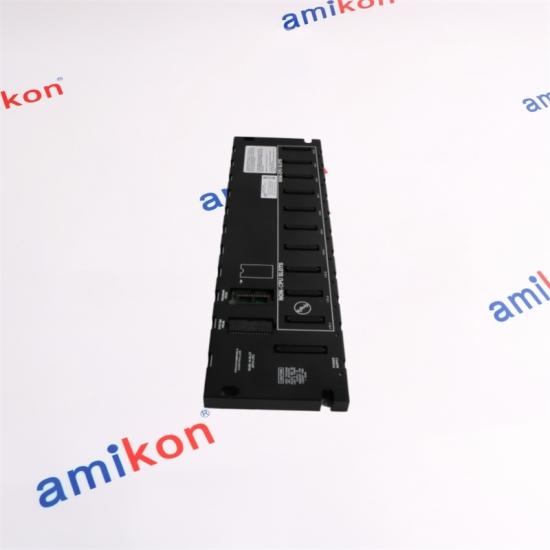

The CPU is integrated into the 10-slot baseplate rather than occupying a separate plug-in CPU slot. This leaves the numbered slots available for I/O and option modules.
|
Compact I/O-Oriented Control
With a maximum combined discrete I/O capacity of 320 points and 12 KB maximum user program memory, the CPU323 is suited to control architectures within these limits.
|
|
|
Communication Expansion
The architecture supports a built-in serial interface and a range of Series 90-30 communication option modules, allowing the controller to participate in broader control networks.
|
Memory and Control Resources
The CPU provides %R register memory, %M internal coils, %T temporary coils, %G global memory, system-status references, analog memory areas, timers/counters and shift-register capability.
|
IC693CPU323 belongs to the embedded-CPU portion of the GE Fanuc Series 90-30 architecture. The CPU311 and CPU313 use 5-slot baseplates, while CPU323 uses a 10-slot baseplate. Modular CPU models such as CPU331, CPU340, CPU341, CPU350 and later models move the processor into a separate CPU module and provide different memory and performance levels.
For an existing installation, the key selection points are the baseplate architecture, required I/O count, user program size, communication arrangement and existing control configuration. IC693CPU323 is particularly relevant when the system is built around its 10-slot embedded-CPU architecture.
|
Existing 10-Slot System
A replacement is most straightforward when the existing control system already uses the IC693CPU323 embedded architecture and the application remains within its memory and I/O limits.
|
Control Downtime
For an installed machine where the controller has become unreliable, a correctly matched CPU/baseplate assembly can be important for restoring the original control architecture without redesigning the entire system.
|
Before Ordering
Verify the exact catalog number, installed baseplate arrangement, program-memory requirement, I/O quantity and communication modules. These details are important when replacing an installed CPU323 system.
|
