PACSystems RX3i · COMMUNICATION
REFLECTIVE MEMORY / REDUNDANCY

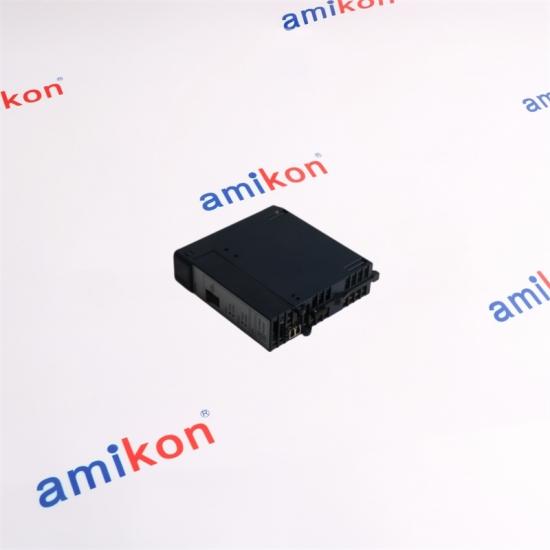

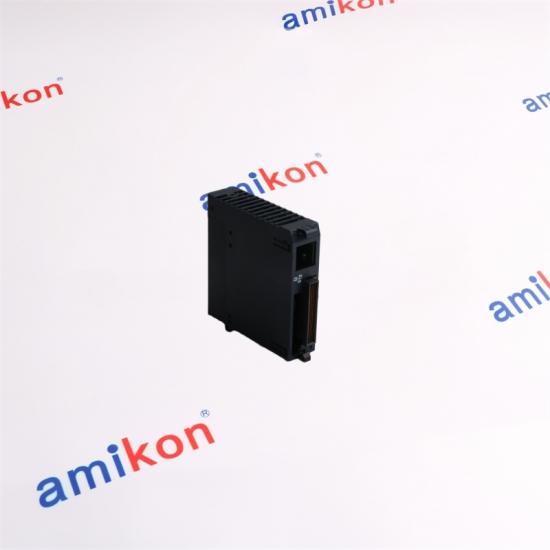

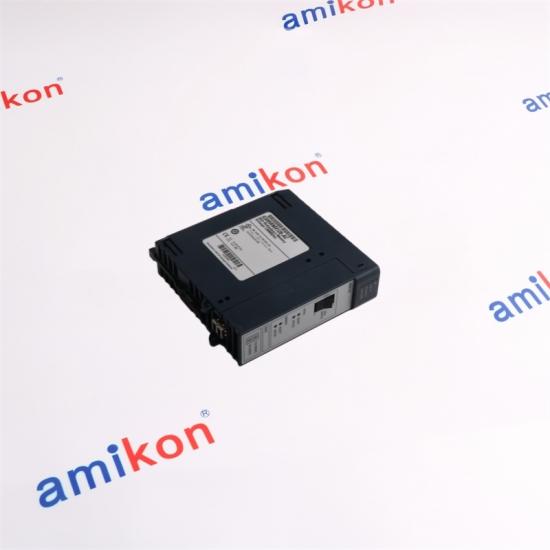

IC695RMX128
Redundancy Memory Xchange Module
A PACSystems RX3i module designed to operate as a node on a reflective memory network or as a dedicated link between CPUs in an RX3i Hot Standby CPU redundancy system.
|
CORE PLATFORM
128 MB
User Reflective Memory
NETWORK
2.12 Gbaud
FIBER
MULTIMODE
|
|
02 / TECHNICAL CORE
IC695RMX128
The RMX128 combines reflective-memory network operation with RX3i redundancy capability. In network operation, data written to one node is automatically propagated to other nodes on the reflective-memory network.
PRIMARY ROLE
Reflective memory / CPU redundancy communication
|
|
|
01 / NODE
RX3i System
The RMX128 occupies a single RX3i module slot and interfaces with the system through the PCI backplane.
|
02 / LINK
Fiber Optic
Multimode fiber connects reflective memory nodes in the network.
|
03 / MEMORY
Shared Data
Data written to one node is automatically updated across the reflective-memory network.
|
04 / SCALE
Up to 256 Nodes
The reflective-memory network supports up to 256 nodes in network operation.
|
|
HOT STANDBY
CPU Redundancy Role
The RMX128 can serve as a dedicated redundancy link between CPUs in an RX3i Hot Standby CPU redundancy system. In this operating mode, the module's redundancy function takes priority over the features available during normal reflective memory network operation.
|
|
|
IC695RMX128 / SALES SUPPORT
Checking a Replacement or RX3i Configuration?
For an RMX128 inquiry, please provide the exact part number, quantity, destination, required date and machine/system. If the module is part of an RX3i redundancy system, hardware revision and firmware details are especially useful for compatibility checking.
|
| 01 |
What should be checked before replacing an IC695RMX128 in an existing RX3i system?
The replacement should be checked against the existing RX3i rack location, PCI backplane, CPU firmware, programming software version and RMX128 hardware/firmware revision. For a redundancy application, the system should also use the required CRU320 CPU redundancy architecture.
|
| 02 |
Can IC695RMX128 operate as a normal reflective memory node as well as a redundancy link?
Yes. The RMX128 is designed to operate as a node on a reflective memory network or as a dedicated link between CPUs in an RX3i Hot Standby CPU redundancy system. The available functions differ according to the operating mode.
|
| 03 |
Does IC695RMX128 require a specific RX3i rack position for replacement?
Yes. The RMX128 must be installed in the main RX3i rack. It requires an RX3i PCI backplane, which is not available on IC694CHSxxx expansion bases. This makes rack location an important replacement check rather than a simple part-number substitution.
|
| 04 |
Why does the IC695RMX128 hardware revision matter when matching firmware?
For RMX128 hardware revisions -Cx and later, firmware 2.00 or later is required. Firmware 2.00 or later must not be installed on earlier -Ax or -Bx hardware because the combination is not compatible. Conversely, firmware earlier than 2.00 is not compatible with -Cx and later hardware.
|
| 05 |
Can IC695RMX128 connect directly to any reflective memory equipment?
The RMX128 is network-compatible with reflective memory devices in the Abaco Systems 5565 family. It uses multimode fiber and LC-type connectors. Compatibility should therefore be checked against the existing network hardware rather than assuming that every reflective-memory device can be connected.
|
