PACSYSTEMS RX3i · ENERGY BACKUP

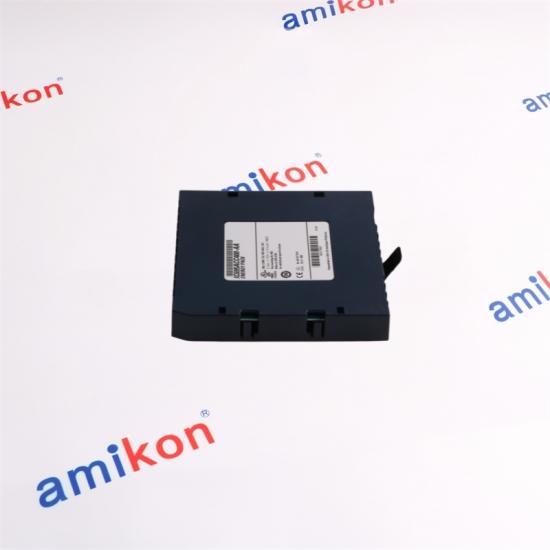

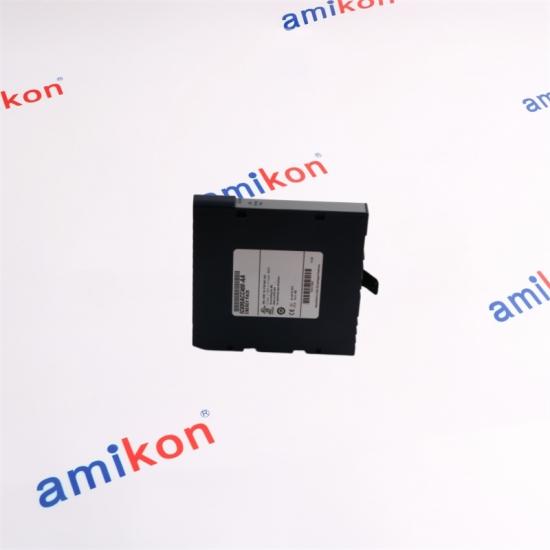

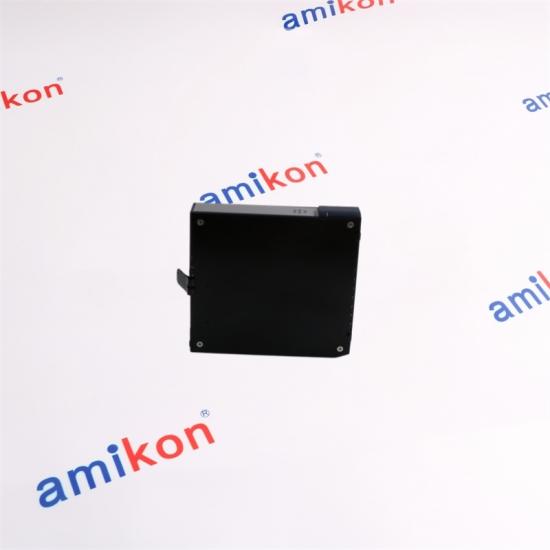

IC695ACC400-AA
RX3i CPU Energy Pack
POWER-LOSS MEMORY PROTECTION
The Energy Pack provides temporary power support during system power loss so the compatible RX3i CPU can write user memory to non-volatile flash storage.
|
◇
+
APPLICATION POSITION
RX3i CPU POWER-LOSS SUPPORT
Compatible CPUs
CPE302 · CPE305 · CPE310 Connection
IC695CBL001 Energy Pack cable Mounting
Left side of an RX3i module Status states
Charging · Charged · Low Capacitance · Fault |
|
Energy Support for CPU Memory Retention
IC695ACC400-AA is an RX3i Energy Pack designed to support compatible RX3i CPU shutdown behavior when system power is lost. It maintains power long enough for the CPU to write its user memory contents to non-volatile flash storage.
During normal operation, the Energy Pack charges from the RX3i 24 VDC rail through the connection to the CPU. When system power is interrupted, the stored energy supports the required memory-write sequence.
Key purchasing point: IC695ACC400-AA should be matched to a compatible RX3i CPU and connected with the specified IC695CBL001 cable.
|
CORE ROLE
ENERGY
PACK Catalog family
PACSystems RX3i Product type
CPU Energy Pack Cable
IC695CBL001 |
| Product | IC695ACC400-AA | Series | PACSystems RX3i |
| Compatible CPUs | CPE302 / CPE305 / CPE310 | Charging Rail | RX3i 24 VDC rail |
| Connection Cable | IC695CBL001 | Cable Length | 3 ft / 0.91 m |
| Dimensions | 140 × 124 × 25.4 mm | Operating Temperature | 0 to 60°C |
| Mounting Position | Left side of RX3i module | Slot-Saving Installation | Can be mounted on the slot-0 module |
|
01 · CPU
CPE302 / CPE305 / CPE310
The compatible RX3i CPU performs the memory-write sequence when system power is lost.
|
→ |
02 · ENERGY PACK
IC695ACC400-AA
Supplies the temporary energy support required for the CPU memory-retention sequence.
|
→ |
03 · CONNECTION
IC695CBL001
Connects the Energy Pack to the compatible CPU and carries the required 24 VDC charging connection.
|
|
CHARGING
The Energy Pack has not yet reached its minimum operating voltage.
|
CHARGED
The Energy Pack is above its minimum operating voltage and ready to support CPU operation.
|
LOW CAPACITANCE
The Energy Pack is approaching the end of its service life and replacement is indicated.
|
FAULT
A hardware fault exists within the Energy Pack.
|
|
SERVICE LIFE
TEMPERATURE
MATTERS Published typical life expectancy is temperature dependent. At 0°C through 50°C, the stated typical life is 10+ years; at 60°C, the stated typical life is 4.5 years.
|
|
| 01 |
Can IC695ACC400-AA be used with an RX3i CPU outside the CPE302, CPE305 or CPE310 group?
No. The specified compatible CPU group is CPE302, CPE305 and CPE310. For replacement purchasing, the CPU catalog number should be checked before ordering the Energy Pack.
|
| 02 |
Is IC695ACC400-AA a suitable choice when the existing RX3i installation already has an IC695CBL001?
Yes. IC695CBL001 is the specified 3 ft (0.91 m) Energy Pack cable used to connect the Energy Pack to the compatible CPU. The cable connection should be checked as part of replacement planning.
|
| 03 |
What should buyers consider when replacing an IC695ACC400-AA in a warm control cabinet?
Ambient temperature is important because the published typical life expectancy changes with temperature. The stated estimate is 10+ years from 0°C through 50°C, while the stated estimate at 60°C is 4.5 years.
|
| 04 |
How can a maintenance team determine whether IC695ACC400-AA is approaching replacement time?
The Energy Pack reports a Low Capacitance state when it is near the end of its life. The CPU can use Energy Pack status information for LED indications and fault messages, making this status useful during maintenance planning.
|
| 05 |
Does IC695ACC400-AA require a dedicated backplane slot when installed on an RX3i rack?
The Energy Pack is mounted on the left side of an RX3i module rather than occupying a separate backplane slot. The installation guidance recommends mounting it on the module in slot 0, usually the power supply, to avoid consuming another backplane slot.
|
|
QUOTE REQUEST
Please provide:
|
Part Number | Quantity | Destination | Required Date | Machine / System |
|
