GE PACSYSTEMS RX3i / GENIUS COMMUNICATIONS
IC695GCG001

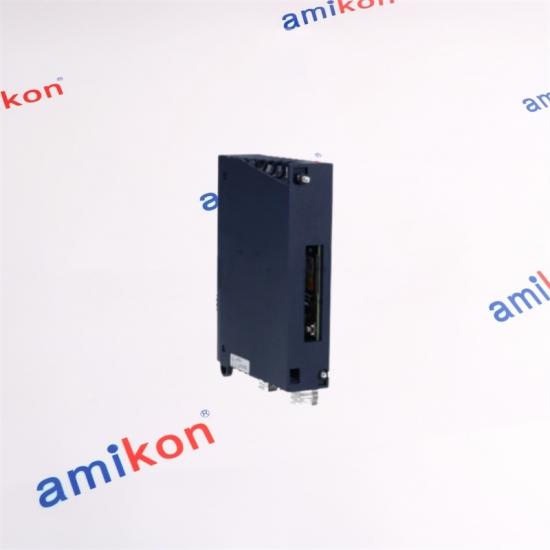

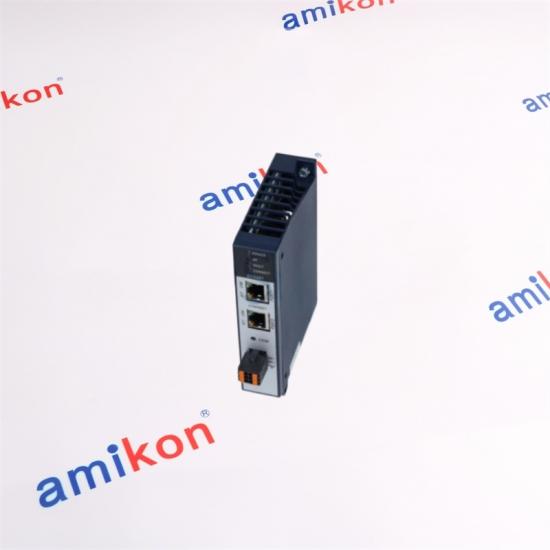

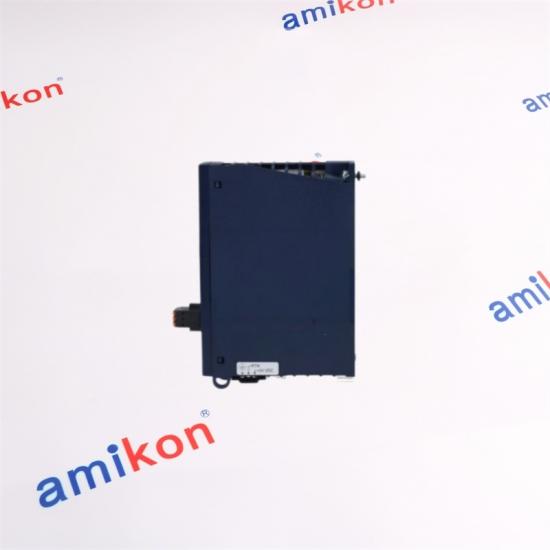

PACSystems RX3i Genius Communications Gateway
IC695GCG001 provides the communication bridge between a Genius I/O network and a PACSystems RX3i PROFINET control environment. It operates as a Genius Bus Controller, scans configured Genius I/O devices, and exchanges their I/O data with the configured PROFINET IO Controller.
|
KEY CONFIGURATION
Part Number: IC695GCG001
PROFINET: Version 2.3 Class A IO-Device
Ethernet: 2 × RJ45, 10/100 Mbps
Genius: 1 Genius Bus
Power: External 24 VDC
|
|
Genius Bus Controller
The gateway scans configured Genius I/O devices and exchanges their input and output data with the PROFINET control environment.
|
PROFINET IO-Device
IC695GCG001 supports PROFINET version 2.3 Class A IO-Device operation for integration with the RX3i PROFINET control architecture.
|
Dual Ethernet Ports
Two RJ45 Ethernet ports support 10/100 Mbps operation and allow star or linear network arrangements through the integrated Ethernet switching function.
|
Redundancy Support
Genius Hot Standby and Duplex redundancy are supported for architectures where communication availability is an important system requirement.
|
| Parameter | IC695GCG001 |
| Product Type | PACSystems RX3i Genius Communications Gateway |
| Part Number | IC695GCG001 |
| PROFINET Support | PROFINET version 2.3 Class A IO-Device |
| Ethernet Ports | 2 × RJ45 |
| Ethernet Speed | 10/100 Mbps |
| Ethernet Standard | IEEE 802.2 Logical Link Control Class I; IEEE 802.3 CSMA/CD |
| Genius Bus | 1 Genius Bus |
| Genius Device Capacity | Up to 29 additional devices on the supported Genius Bus |
| Status Data | 64 bits, arranged as two banks of 32 bits |
| Power Requirement | External 24 VDC |
| Operating Temperature | 0 to 60 °C |
| Hand-Held Monitor | IC660HHM501 compatible |
| Redundancy | Genius Hot Standby and Duplex supported |
| PROFINET Controller | RX3i PROFINET control environment | Gateway | IC695GCG001 |
| Ethernet Side | 2 × RJ45, 10/100 Mbps | Genius Side | 1 Genius Bus |
|
Genius I/O Migration
The gateway is suitable where existing Genius I/O devices need to participate in an RX3i PROFINET control architecture. It provides the communication path between the Genius serial bus and the PROFINET controller.
|
Redundant Communication
In applications using Genius Hot Standby or Duplex redundancy, the gateway can be part of an architecture intended to tolerate loss of a single gateway when the system is configured for the corresponding redundancy mode.
|
|
PROFINET Communication Fault
Check the Ethernet link, controller assignment, device configuration and applicable firmware compatibility before replacing the gateway.
|
Genius Bus Fault
Check Genius bus wiring, device addressing, termination and the condition of the connected Genius devices when the Ethernet side remains available but Genius I/O data is abnormal.
|
Replacement Situation
Confirm the complete IC695GCG001 part number, controller environment, firmware compatibility, Genius bus arrangement and external 24 VDC supply before replacing an installed unit.
|
|
SALES MANAGER
Miya zheng
|
EMAIL SALES sales@amikon.cn |
PHONE / WHATSAPP 86-18020776792 |
| Part Number | IC695GCG001 | Quantity | Required quantity |
| Destination | Shipping destination | Required Date | Required delivery date |
| Machine/System | Installed machine or control system | ||
| Delivery | 3–5 days | Warranty | 12 months | Packaging | Brand New |
| Delivery Way | E-packing / FedEx / EMS / TNT / DHL / UPS | Payment | T/T | ||
| 01 |
Q1. Is GE IC695GCG001 suitable when an existing Genius I/O network needs to connect to an RX3i PROFINET system?
Yes. IC695GCG001 is specifically designed as a Genius Communications Gateway for this architecture. It operates as a Genius Bus Controller on the Genius side and as a PROFINET Class A IO-Device on the PROFINET side, allowing configured Genius I/O data to be exchanged with the PROFINET controller.
|
| 02 |
Q2. What should be verified before ordering GE IC695GCG001 as a replacement for an installed gateway?
Verify the complete IC695GCG001 part number, RX3i controller type, applicable controller and PROFINET firmware requirements, Genius bus arrangement, network topology and the external 24 VDC supply. Matching the connector appearance alone is not sufficient for a replacement decision.
|
| 03 |
Q3. Can GE IC695GCG001 support a redundant Genius communication architecture?
IC695GCG001 supports Genius Hot Standby and Duplex redundancy. The actual behavior depends on how the redundant system is configured. In a Hot Standby arrangement, the system can be designed to tolerate the loss of a single gateway when the corresponding redundancy configuration is implemented.
|
| 04 |
Q4. Why might GE IC695GCG001 be required when the Ethernet link is active but Genius I/O data is not updating correctly?
The Ethernet connection and Genius bus are separate communication paths. A healthy Ethernet link does not by itself confirm healthy Genius communication. Genius bus wiring, device addressing, bus termination, connected device status and the gateway configuration should therefore be checked when PROFINET remains available but Genius I/O data is abnormal.
|
| 05 |
Q5. Does GE IC695GCG001 require power from the RX3i backplane?
No. IC695GCG001 uses an external 24 VDC power supply and does not draw its operating power from the RX3i backplane. This is an important replacement consideration because the gateway's external power connection must be isolated before the unit is removed or replaced.
|
