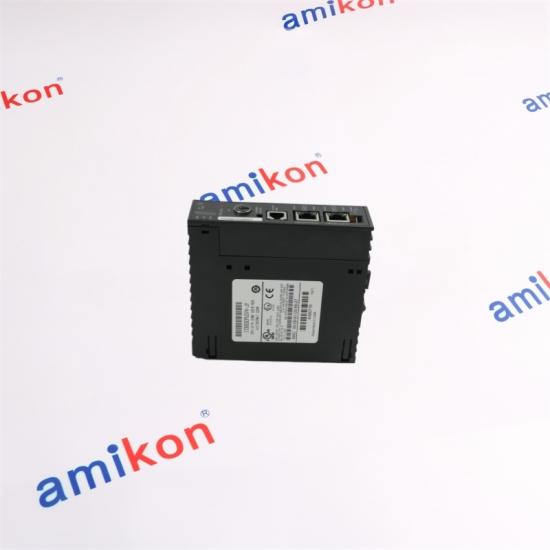

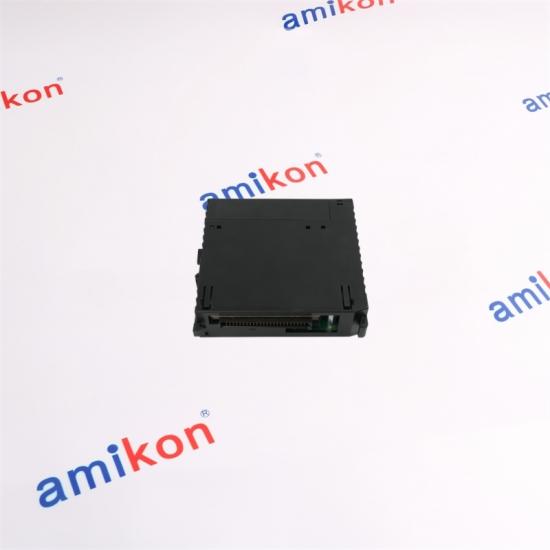

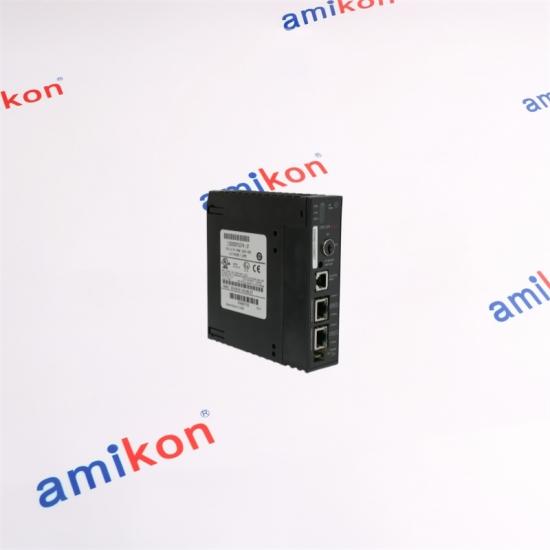

GE IC693CPU374-KZ Single-Slot CPU with Embedded Ethernet

GE IC693CPU374-KZ
GE IC693CPU374-KZ
GE IC693CPU374-KZ

GE IC693CPU374-KZ Single-Slot CPU with Embedded Ethernet

Calculate shipping
Quotation Request
SERIES 90-30
IC693CPU374-KZ

High-speed CPU module with embedded Ethernet communications for Series 90-30 control systems.
◆ 586 PROCESSOR
◆ DUAL ETHERNET PORTS
CPU SPEED
133 MHz
USER MEMORY
240 KB
ETHERNET
10/100 Mbps
Embedded Ethernet communications are provided through two Ethernet ports with an integrated switch architecture.
◇ FAST CONTROL   ◇ ETHERNET   ◇ SERIES 90-30
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
✉ Email: sales@amikon.cn ☎ WhatsApp: 86-18020776792
Sales manager: Miya zheng
◇ ◇ ◇





SERIES 90-30 / CPU374 PLUS
IC693CPU374-KZ
Single-Slot CPU with Embedded Ethernet
CPU374 PLUS processing and Ethernet platform
A 133 MHz CPU with 240 KB user memory and integrated dual-port 10/100 Ethernet switching for Series 90-30 control architectures.
REVISION: CPU 12.71 / Ethernet 6.20
PROCESSOR
133 MHz
AMD SC520
USER MEMORY
240 KB
RAM + Flash
ETHERNET
2 × 10/100
Auto-sensing RJ-45

EMBEDDED NETWORK CORE
The CPU374 PLUS provides two auto-sensing 10/100Base-T/TX Ethernet ports through a built-in Ethernet switch and uses one IP address. Ethernet services include SRTP, Ethernet Global Data and Modbus/TCP client/server functions.
IC693CPU374-KZ / TECHNICAL PROFILE
Model IC693CPU374-KZ
CPU Family Series 90-30 CPU374 PLUS
CPU Type Single-slot CPU with embedded Ethernet
Processor AMD SC520, 133 MHz
Boolean Execution 0.15 μsec per Boolean instruction
Memory 240 KB / 245,760 bytes
Storage Type RAM and Flash
Discrete Inputs 2,048 fixed %I points
Discrete Outputs 2,048 fixed %Q points
Register Memory 128–32,640 configurable words
Analog Memory %AI / %AQ: 128–32,640 words
Baseplates 8 total: CPU + 7 expansion/remote
Power Requirement 1.48 A @ +5 VDC / 7.4 W
Power Supply High-capacity power supply required
◇
DUAL-PORT ETHERNET ARCHITECTURE
CONTROL CPU
IC693CPU374-KZ
 →
EMBEDDED SWITCH
2 × 10/100Base-T/TX
One IP address
 →
NETWORK SERVICES
SRTP / EGD / Modbus TCP
Communication scope: The CPU374 PLUS supports SRTP communication, Ethernet Global Data, SRTP client channels and Modbus/TCP client/server operation. It also provides basic PLC reference and fault-table monitoring through its Ethernet web server.
COMMUNICATION
Up to 16 SRTP client channels are supported, with up to 36 SRTP/TCP connections in total, consisting of up to 20 SRTP server connections and 16 client channels.
DATA HANDLING
The CPU provides fixed %I, %Q, %G, %M, %T and %S reference areas together with configurable %R, %AI and %AQ word memory.
PROGRAM STORAGE
The CPU supports PLC Program Download Device and EZ Program Store Device functions, providing additional options for transferring and storing PLC programs.

CPU374 FAMILY / RELATED REVISION CONTEXT
IC693CPU374
Base CPU374 family with embedded Ethernet, 133 MHz processing, 240 KB user memory and two 10/100 Ethernet ports.
IC693CPU374-KZ
CPU374 PLUS revision associated with CPU firmware 12.71 and Ethernet firmware 6.20 in the KZ revision listing.
CPU374 PLUS
Enhanced Ethernet platform supporting EGD, SRTP client channels, Modbus/TCP and additional Ethernet services.
PROGRAMMING COMPATIBILITY
Machine Edition Logic Developer PLC 2.60 or later, VersaPro 2.03 or later, or Control software 2.50 or later can be used to configure and program the CPU374. Newer CPU374 PLUS functions require appropriate Machine Edition versions.
INSTALLATION REQUIREMENT
The CPU374 requires a high-capacity Series 90-30 power supply. Supported examples include IC693PWR330, IC693PWR331 and IC693PWR332.
OPERATING
0–60°C
STORAGE
−40–85°C
FLOATING POINT
Hardware Math
BASEPLATES
8 Total

AMIKON INDUSTRIAL AUTOMATION
Need IC693CPU374-KZ?
Send the exact part number, quantity and system requirements for a faster quotation.
✉ EMAIL · sales@amikon.cn ☎ WHATSAPP · 86-18020776792
Sales Manager: Miya zheng
IC693CPU374-KZ / BUYER FAQ
Q1. Can IC693CPU374-KZ replace another CPU374 revision without checking the Ethernet firmware?
The CPU374 family contains multiple hardware and firmware revisions, so the revision should be checked before a replacement is finalized. The KZ revision is associated with CPU firmware 12.71 and Ethernet firmware 6.20 in the revision listing. Older CPU374 hardware does not automatically gain newer PLUS functions simply because the catalog number family is the same. For a replacement, confirm the existing revision and the Ethernet functions used by the application.
Q2. Is IC693CPU374-KZ appropriate when the existing control system depends on Modbus/TCP?
The CPU374 PLUS Ethernet interface supports Modbus/TCP client and server operation. However, the required programming environment matters: the PLUS documentation specifies a suitable Machine Edition Logic Developer PLC version for Modbus TCP functions. When replacing an older CPU374, verify the software version and the actual Modbus/TCP configuration before ordering.
Q3. What should be checked before using IC693CPU374-KZ with a large Series 90-30 rack?
The CPU374 supports up to eight baseplates in a system: one CPU baseplate plus up to seven expansion and/or remote baseplates. The CPU itself also requires a high-capacity power supply. The total rack configuration should therefore be checked for both baseplate count and available +5 VDC capacity rather than evaluating the CPU in isolation.
Q4. Can IC693CPU374-KZ communicate with other controllers through Ethernet Global Data?
Yes. CPU374 PLUS supports Ethernet Global Data and EGD command functions. The Ethernet interface also supports SRTP communication and SRTP client channels. For an existing EGD installation, the exchange configuration, producer and consumer relationships, network addressing and the functions used by the application should be checked when moving to another CPU revision.
Q5. Does IC693CPU374-KZ need a separate Ethernet communication module?
No separate Ethernet interface is required for the CPU's built-in Ethernet functions. IC693CPU374-KZ has two auto-sensing 10/100Base-T/TX RJ-45 ports connected through an integrated Ethernet switch and uses one IP address. The CPU can therefore provide its supported Ethernet services directly from the embedded interface.
