GE FANUC / SERIES 90-30 / COMMUNICATION
FIP BUS CONTROLLER
GE IC693BEM340-DEThe IC693BEM340 is a Series 90-30 PLC FIP Bus Controller designed to connect a Series 90-30 PLC with a FIP I/O network. It operates as a rack-mounted module and connects to one or two FIP buses, supporting a simplex arrangement or a redundant dual-bus arrangement. SERIES 90-30 FIP NETWORK REDUNDANT BUS
|
CORE PROFILE
FIP COMMUNICATION • SERIES 90-30 • FIELD NETWORK INTERFACE
|
|
NETWORK ROLE
IC693BEM340 provides the FIP interface between a Series 90-30 PLC and devices on a FIP I/O network. The network can include FIP Bus Interface Units, remote I/O arrangements, generic FIP devices and variable-speed drives. |
BUS ARCHITECTURE
Two identical FIP bus connectors are provided. A single-bus installation may use either connector. For a dual-media redundant arrangement, both Channel 1 and Channel 2 are connected. |
FRONT INTERFACE

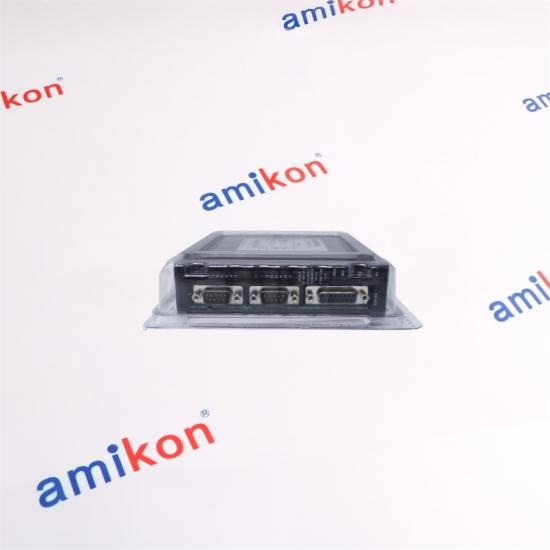

The front panel provides six status indicators, a 15-pin RS-485 serial connector and two 9-pin FIP fieldbus connectors. |
|
PLC MEMORY
FIP data can use Series 90-30 PLC memory areas including %I, %Q, %G, %AI, %AQ, %R, %M and %T. |
DIAGNOSTIC HANDLING
The controller provides status bits and fault reporting to the Series 90-30 PLC. The six front-panel LEDs indicate module status and FIP communication activity. |
|
| IC693BEM340 — ENGINEERING PARAMETERS | |
| Catalog Number | IC693BEM340 |
| Module Function | FIP communications for Series 90-30 PLC |
| Typical Current | 800 mA |
| Maximum Current | 1.2 A |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| FIP Connectors | Two 9-pin D-type connectors |
| Serial Interface | 15-pin RS-485 |
| Installation Position | Series 90-30 I/O slot; main rack recommended for best performance |
| PLC Base | Series 90-30 PLC baseplate and power supply |
| CPU Range | CPU models 311 through 351 |
| CPU Firmware | Release 5.0 or later |
| Control 90 | Release 1.5 or later |
The IC693BEM340 belongs to the communication-oriented option-module group of the Series 90-30 platform. Its specific role is FIP network connection, rather than general PLC CPU processing or Genius bus control.
| IC693BEM340 FIP Bus Controller |
IC693BEM330 FIP Remote I/O Scanner |
IC693BEM331 Genius Bus Controller |
|
SALES MANAGER
Miya Zheng
|
EMAIL SALES@AMIKON.CN | PHONE / WHATSAPP |
| 01 |
Can IC693BEM340-DE be used when the existing system requires redundant FIP bus operation?
Yes. The IC693BEM340 provides two FIP bus connectors. In a redundant dual-media arrangement, both Channel 1 and Channel 2 are connected. A replacement should therefore be checked against the existing dual-bus wiring and system configuration before installation.
|
| 02 |
What should be checked before replacing IC693BEM340-DE in an older Series 90-30 rack?
The CPU model, CPU firmware release, Control 90 software release, rack position, FIP topology and available power capacity should be checked. The stated compatibility requires Series 90-30 CPU models 311 through 351 with CPU firmware release 5.0 or later, and Control 90 release 1.5 or later.
|
| 03 |
Why does IC693BEM340-DE have two FIP connectors when only one network cable may be installed?
The controller supports both simplex and redundant FIP arrangements. In a single-bus installation, either connector may be used. The second connector becomes relevant when the installation uses dual FIP media for redundancy.
|
| 04 |
Does IC693BEM340-DE use the same role as an IC693BEM331 Genius Bus Controller?
No. IC693BEM340 is the FIP Bus Controller for a Series 90-30 PLC, while IC693BEM331 serves as the Genius Bus Controller. They address different field-network architectures and should not be treated as direct functional substitutes.
|
| 05 |
Is IC693BEM340-DE suitable for a replacement where cabinet temperature can reach 55°C?
The specified operating range for IC693BEM340 is 0°C to +55°C. A cabinet operating at the upper limit should still be evaluated for actual enclosure conditions, airflow and the heat contribution of neighboring modules.
|
