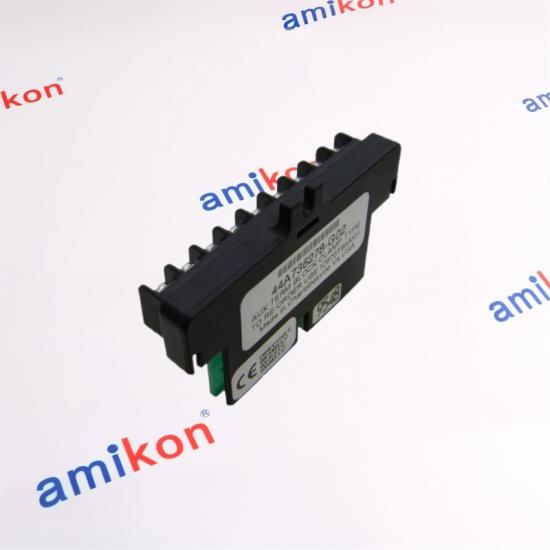

GE IC670TBM001 Auxiliary Terminal Block

GE IC670TBM001
GE IC670TBM001
GE IC670TBM001

GE IC670TBM001 Auxiliary Terminal Block

Calculate shipping
Quotation Request

GE FIELD CONTROL
IC670TBM001

TERMINAL TYPE
BARRIER STYLE

01
PRODUCT TYPE
Auxiliary
Terminal Block

02
TERMINAL COUNT
9
Barrier terminals

03
WIRE CAPACITY
1 or 2 wires
Up to AWG #14

CONTACT
Miya Zheng

EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792

GE FIELD CONTROL Overview Specifications Application FAQ Recommended Contact
FIELD CONTROL COMPONENT
IC670TBM001
Auxiliary Terminal Block


A barrier-style auxiliary terminal block for Field Control installations, providing additional wiring points for analog and high-density discrete I/O arrangements, together with extra ground, return, or common connections.
09
TERMINALS
#14
MAX WIRE GAUGE
Barrier-Type
Terminal construction
Auxiliary
Field Control use

01 / PRODUCT DETAILS
Connection
Made Practical


IC670TBM001 is the barrier-terminal version of the Field Control auxiliary terminal block family. Its nine terminals are electrically connected together internally, making the unit suitable where additional common connection points are required.
TERMINAL COUNT
9
Barrier terminals
INTERNAL CONNECTION
Commoned
All terminals connected internally
WIRE CAPACITY
1 or 2 wires
Up to AWG #14 per terminal
INSTALLATION
Field Control Base
Auxiliary terminal arrangement
02 / FIELD APPLICATION
Where the Extra
Connection Matters

The IC670TBM001 is used alongside Field Control I/O terminal arrangements when additional wiring points are needed. It can support extra ground, return, or common connections and can provide additional termination points for analog and high-density discrete I/O wiring.
WHEN IT IS NEEDED
Additional common or return points
WIRING WORK
Extra field termination points
!
WHY A REPLACEMENT MAY BE SEARCHED
Loose, damaged, or insufficient auxiliary termination points can complicate field wiring work and may require replacement of the terminal block to restore the intended connection arrangement.
03 / TECHNICAL SNAPSHOT
A Compact Wiring Interface

TYPE
Auxiliary Terminal Block

TERMINAL STYLE
Barrier

TERMINALS
9 internally commoned

WIRE
1 or 2 × AWG #14
Need IC670TBM001 for an existing Field Control station?
Send the part number, quantity, destination, required date, and machine/system for a quick quotation.
 REQUEST A QUOTE
04 / FAQ
Questions That Matter Before Replacement
Q1
Are the nine terminals electrically isolated from each other?
No. The terminals are internally connected together, so the unit is intended for common connection arrangements rather than independent isolated circuits.
Q2
What is the practical reason for adding this block to a Field Control station?
It adds termination points where the normal I/O terminal arrangement does not provide enough convenient connections for common, return, ground, or related field wiring.
Q3
What wire capacity should be checked when replacing an IC670TBM001?
Each of the nine barrier terminals can accommodate one or two wires up to AWG #14. The conductor arrangement should therefore be checked before transferring existing field wiring.                                   .
Q4
Can the same commoned terminal arrangement be used for unrelated circuits?
Because all terminals share an internal electrical connection, the circuits connected to the block must be suitable for a common electrical node. Separate blocks are appropriate where isolation is required.
Q5
What should be checked when replacing an existing terminal block in a running Field Control installation?
Confirm the terminal arrangement, shared electrical connection, conductor size, and the intended ground/return/common function before moving field wiring. The mounting arrangement should also be checked when vibration requirements apply.
Looking for a price on IC670TBM001?
Send your Part Number, Quantity, Destination, Required Date, and Machine/System. We will prepare the quotation according to your requirement.
 GET PRICE
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
New Packaging
PAYMENT
T/T
Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS
AFTER-SALES
Refund &
Replacement

01 Please contact us within 7 days if you have any question after you receiving the items.
02 The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we receive the returns.
03 The buyer is responsible for all the shipping costs incurred.
WHY WORK WITH US
Our Service Is
More Abundant.

Excellent service runs through every process of our operation. In addition, we also pay a lot of money to attract global talents and exclusive technology to provide customers with more high-quality services.

+  Exclusive Multilingual Support Team
+  Customized Customer Relation Management and Order Tracking System
+  No additional charges, handling charges or hidden charges are incurred.
Automation team
TEAMWORK

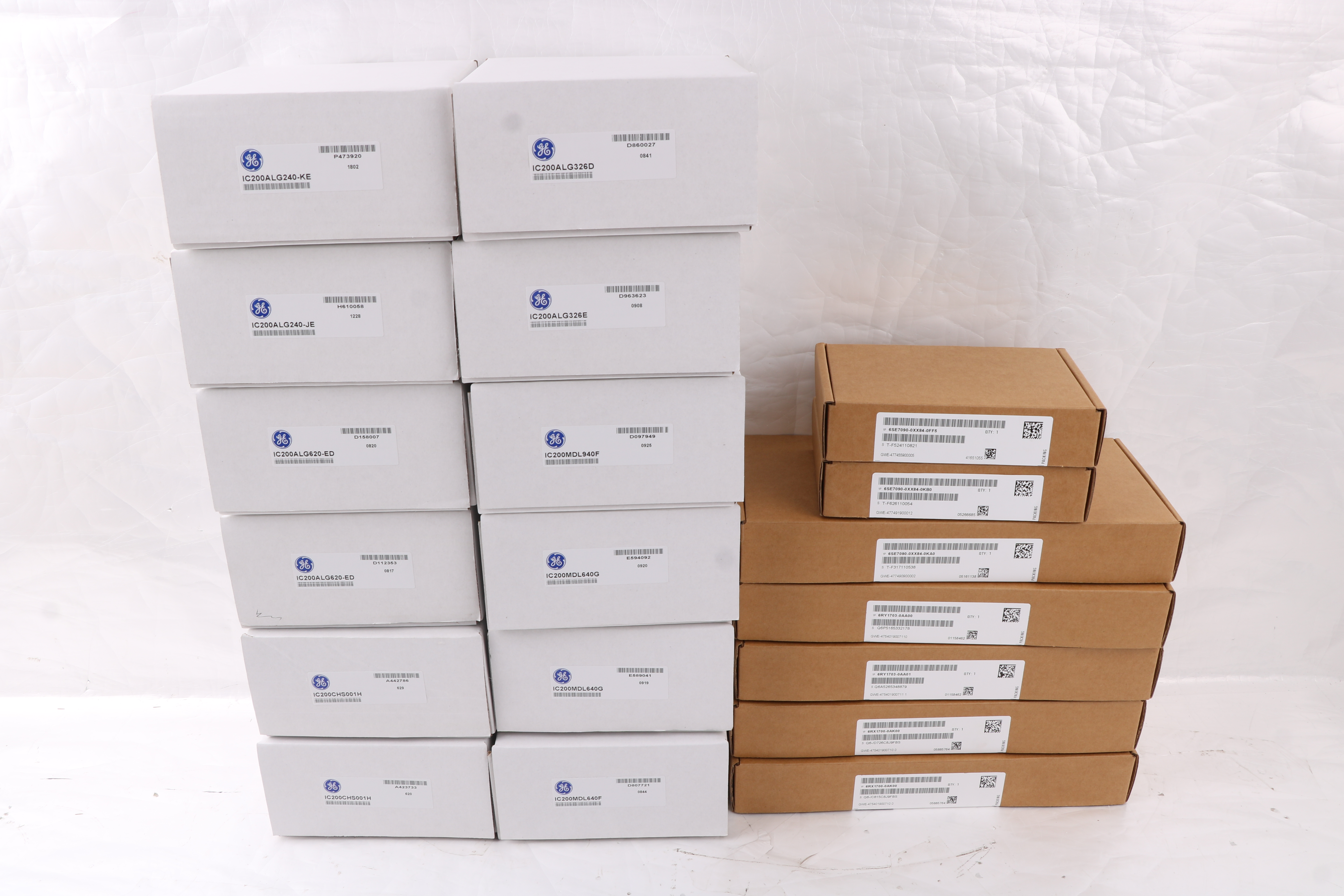

Automation warehouse
