 IC670CHS004 Overview Technical Application FAQ Contact
FIELD CONTROL • THERMOCOUPLE INTERFACE


IC670CHS004

Thermocouple Terminal Block

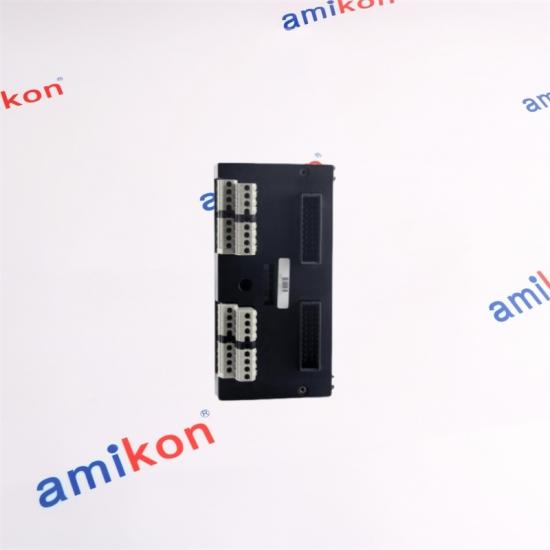

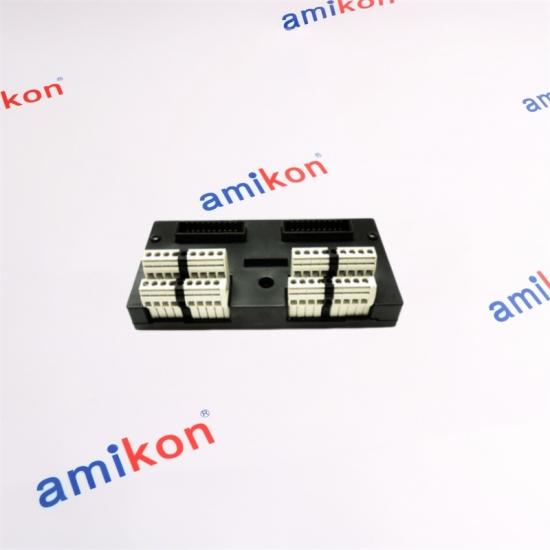

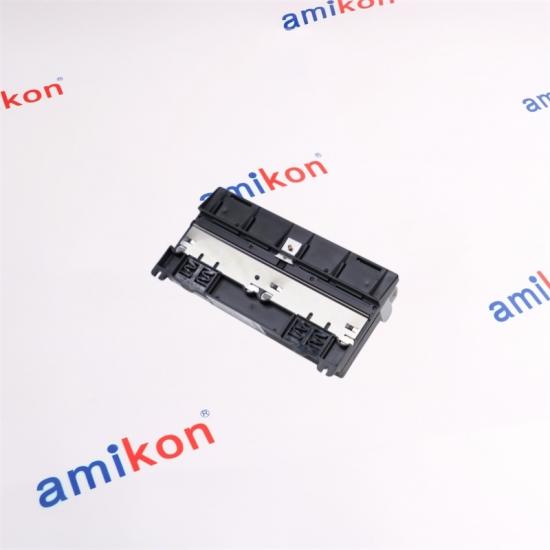

A Field Control thermocouple terminal block designed to provide screw-terminal connections for thermocouples and local reference-junction compensation through two built-in thermistors.
FIELD CONTROL   THERMOCOUPLE   2 BUILT-IN THERMISTORS
PRODUCT IC670CHS004
TYPE Thermocouple Terminal Block
COMPENSATION Local Reference-Junction Compensation

01 / Technical Structure
Built around the thermocouple connection

02
Built-in thermistors
Two thermistors provide local reference-junction temperature information.

02
Module connections
The terminal block supports connections for two thermocouple modules.
FIELD CONNECTION
Thermocouples connect through screw terminals

MODULE SIDE
Wire-to-board connections link the terminal block with the thermocouple modules

MOUNTING
Use with a grounded conductive DIN rail
02 / APPLICATION
When temperature signals need a stable junction point

IC670CHS004 is used with Field Control thermocouple modules when thermocouple wiring is brought to a dedicated terminal block and local reference-junction compensation is required.
01
Temperature measurement
Provides the field wiring point for thermocouple signals.

02
Local compensation
Two built-in thermistors support local reference-junction compensation.

03
Field Control station
Works as the thermocouple connection point associated with Field Control thermocouple modules.
03 / CONNECTION DETAILS
A compact interface between field wiring and the I/O module
FIELD SIDE
Screw terminals
Thermocouples are connected at the terminal block.

MODULE 01
Thermocouple module
One module connection is provided through the terminal block.

MODULE 02
Thermocouple module
A second module connection is provided for the other side of the block.

GROUND
DIN rail
Grounded conductive DIN rail required.
Need IC670CHS004 pricing?
Send the Part Number, Quantity, Destination, Required Date and Machine/System for a quotation.
 REQUEST A QUOTE
04 / RELATED SELECTION
More Automation Parts to Consider
866.13/05 SNV4063KL-A EER31500 MTN646704
TXS1.12F10 TX-I/O TRIO-PS/3AC/24DC/5 MTN646704 REG-K/4x/6 EER31600
8000-58520-000 MTL4541 Allen Bradley 1794-IB16 007302011
B&R X20CS1030 Allen Bradley 1738-IB8M12/A BMXDDI3202K DI32
B&R X20DI9371 QD75M4 750-430 NS-205
DI32 2862343 TWDAMO1HT PNOZ-10-24VDC-6S/4O 1738-IB8M12
B&R X20DO9322 B&R X20CS1030 RS485/RS422 8896940000 WAGO 750-530
BMXDDI3202K X80 PNOZ-10-24VDC-6S/4O Ask us for additional compatible automation parts.
05 / FAQ
Questions Engineers Usually Ask
Can IC670CHS004 provide local reference-junction compensation?
Yes. The terminal block contains two built-in thermistors for local reference-junction compensation when used with Field Control thermocouple modules.

How many thermocouple modules can the terminal block serve?
The terminal block is arranged for connections associated with two thermocouple modules.

Which Field Control terminal block can simplify the module connection?
IC670CHS003 provides a connector-to-connector arrangement when used with the thermocouple terminal block.

Why is the DIN rail requirement important?
The thermocouple terminal block is intended to be mounted on a grounded conductive DIN rail so the assembly is connected to chassis ground.

What type of field connection is used on IC670CHS004?
Thermocouples are connected to screw terminals on the terminal block, while the thermocouple modules connect through wire-to-board connections.
