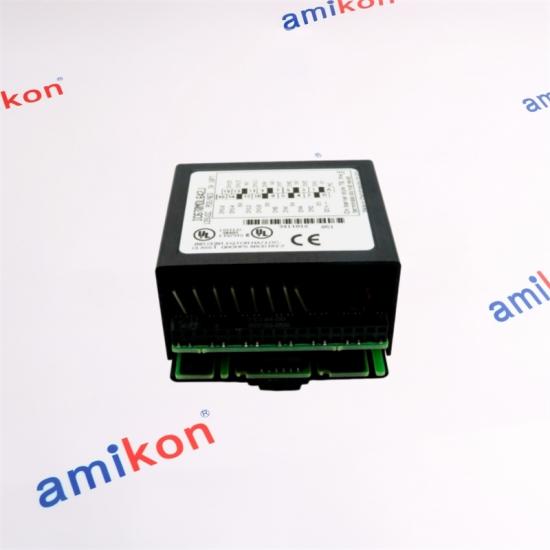

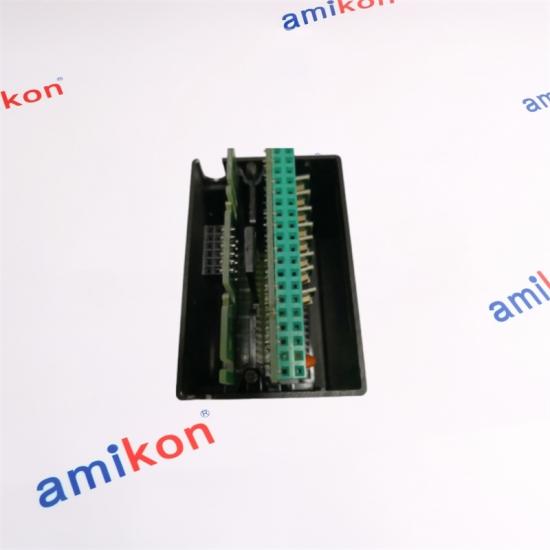

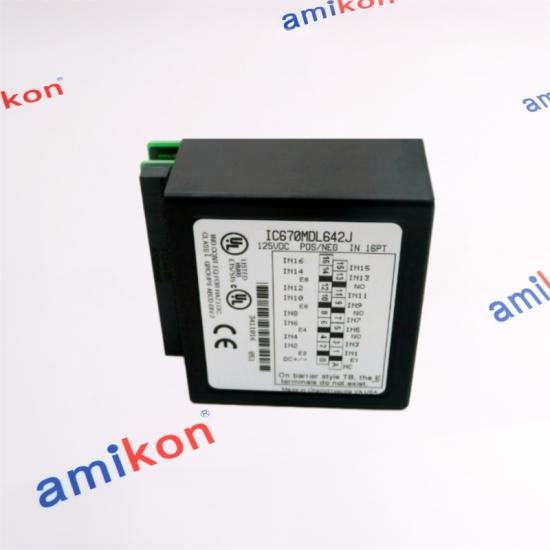

GE FANUC FIELD CONTROL
IC670MDL642
125 VDC Positive / Negative Discrete Input Module
A 16-point grouped discrete input module designed for 125 VDC field input applications within the GE Fanuc Field Control family.
|
GE
FIELD CONTROL
IC670MDL642
125 VDC Input Module
16 GROUPED INPUT POINTS
|
|
PRODUCT PROFILE
High-Voltage Discrete Input MonitoringThe IC670MDL642 is a 125 VDC discrete input module for GE Fanuc Field Control systems. It provides 16 grouped input points for monitoring DC field signals. Its input circuitry supports a 0 to 150 VDC input range, with a rated operating voltage of 125 VDC. The module uses grouped points rather than individually isolated input points. ENGINEERING FOCUS
125 VDC field signals · 16 grouped inputs · Positive / negative input capability
|
QUICK TECHNICAL SNAPSHOT
|
|
|
||||||||||||||||||||
|
FIELD APPLICATION
When a 125 VDC Input Point MattersThe module is intended for 125 VDC discrete field signals in a Field Control I/O architecture. Its 16 grouped points allow the control system to monitor multiple DC status signals through one input module. In an operating system, an input module becomes a practical replacement candidate when field status points stop changing correctly, input indications remain inactive, or the controller no longer receives expected DC state transitions. |
|
|
POSITIVE LOGIC
+79 to +150 V
|
NEGATIVE LOGIC
−79 to −150 V
|
ON CURRENT
0.3–3.0 mA
|
OFF CURRENT
0–0.5 mA
|
|
01 · What DC voltage range can the IC670MDL642 accept at its inputs?
The input voltage range is 0 to 150 VDC, with a rated voltage of 125 VDC.
|
|
02 · How many field input points are available on IC670MDL642?
It provides 16 grouped discrete input points.
|
|
03 · Is each input point individually isolated on this module?
No. The module uses grouped inputs; the individual points within a group are not separately isolated.
|
|
04 · What should be checked when a 125 VDC input remains inactive?
Check the field voltage, wiring, input polarity, terminal connections and the expected signal state before replacing the module. The specified input thresholds should also be considered during troubleshooting.
|
|
05 · How fast does IC670MDL642 respond to an input state change?
The ON response is 6 ms typical / 10 ms maximum, while the OFF response is 6 ms typical / 20 ms maximum.
|
|
