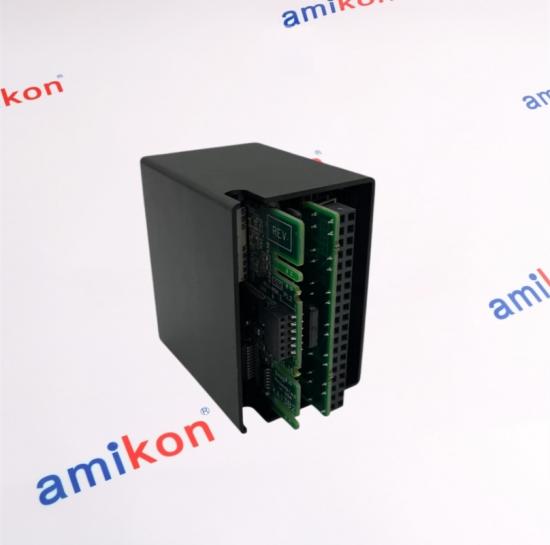

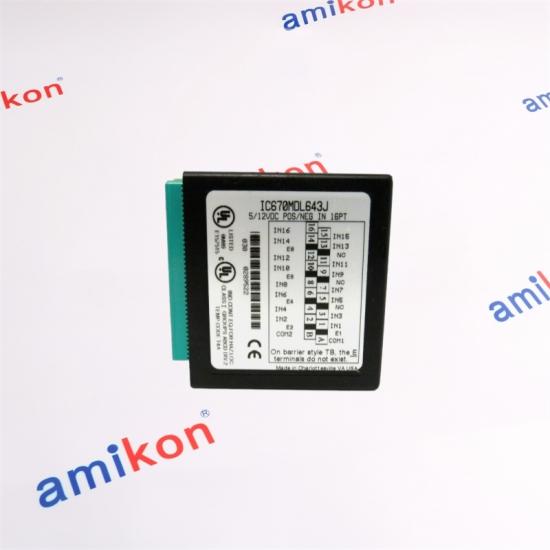

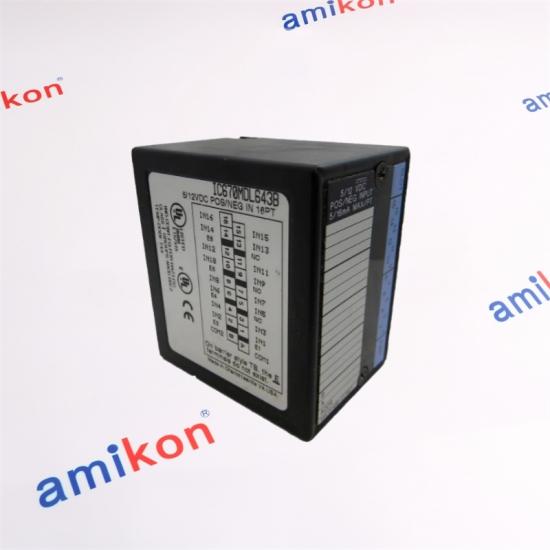

GE IC670MDL643

5/12 VDC Positive / Negative Logic Input Module
A 16-point Field Control discrete input module arranged in two groups of eight, designed for low-voltage DC input signals and capable of positive or negative logic operation.
Input Points
16
Rated Voltage
5 / 12 VDC
Logic
+/−
TECHNICAL SNAPSHOT

Signal Architecture at a Glance

Module type Discrete DC input
Input points 16
Group arrangement 2 groups × 8 points
Rated voltage 5 / 12 VDC
Input voltage range 0–15 VDC
Input impedance 1 kΩ typical
Bus current 80 mA maximum
ON response 300 μs typical
OFF response 1 ms typical
Logic modes Positive / Negative

TWO-GROUP FLEXIBILITY

16 Inputs, Arranged for Practical Field Wiring

The sixteen discrete inputs are organized as two separate groups of eight. This grouped arrangement is particularly useful where low-voltage control signals need to be handled in a compact Field Control station.

GROUP A
01 — 08
Eight discrete input points
GROUP B
09 — 16
Eight discrete input points

FIELD CONTROL APPLICATION

Where IC670MDL643 Becomes Critical

IC670MDL643 is intended for Field Control stations that need to acquire low-voltage DC discrete states. It is suited to electronic control signals where 5 VDC or 12 VDC logic is required rather than a conventional 24 VDC input.

01

Low-Voltage Signals

Designed around 5/12 VDC input levels with a 0–15 VDC input range.

02

Positive or Negative Logic

Positive and negative logic operation provides flexibility when interfacing field devices.

03

Compact I/O Acquisition

Sixteen discrete points provide a compact way to bring multiple field states into a station.

When Engineers Start Searching for IC670MDL643

Typical troubleshooting clues

A replacement search can become necessary when a Field Control station stops registering expected low-voltage input states, when an input point remains inactive despite a valid field signal, or when a failed module interrupts a group of discrete signals.

Because the module handles sixteen input states, a hardware problem can affect more than one monitored device and may prevent the control application from receiving the expected field conditions.

Signal not reaching the expected ON state
Check the field voltage against the applicable threshold.
Several points affected together
Review group wiring and the module's field-side conditions.
Unexpected production interruption
Loss of required discrete states can prevent downstream control logic from behaving as intended.

REAL PEOPLE · REAL PROJECTS

Automation Support That Stays Close to the Customer

From hard-to-find automation components to urgent replacement needs, our team works directly with customers to keep maintenance and production moving.

AMIKON customer team
AMIKON team
AMIKON warehouse
ENGINEERING FAQ

Questions That Matter Before Replacement

Focused on voltage, grouping, logic polarity and operating behavior.

01 · Can the two eight-point groups be treated as separate input groups?
Yes. IC670MDL643 is arranged as two groups of eight inputs, making the grouping a key part of field wiring and installation planning.
02 · What voltage range should be considered when checking an IC670MDL643 input?
The module has a 0–15 VDC input range and is rated for 5/12 VDC operation. For positive logic, the ON-state range begins at +3.6 VDC; for negative logic, the ON-state range is −3.6 to −15 VDC.
03 · How can positive and negative logic affect troubleshooting?
The expected polarity matters when verifying a field signal. A positive-logic input and a negative-logic input use opposite voltage directions for their ON states, so the measured signal should be checked against the intended logic arrangement.
04 · What response time should be considered when diagnosing a changing input?
The typical ON response is approximately 300 μs, while the typical OFF response is approximately 1 ms. Maximum values are approximately 550 μs for ON and 1.2 ms for OFF.
05 · What should be checked first if multiple input points stop behaving correctly?
Start with the shared field conditions for the affected eight-point group, including the external input supply, common wiring and signal polarity. The grouped architecture makes a shared wiring or supply issue an important early check before replacing individual field devices.

REQUEST A QUOTATION

Need IC670MDL643 for a Maintenance Window?

To help us check your requirement efficiently, please send the following details together with your inquiry:

Part Number
