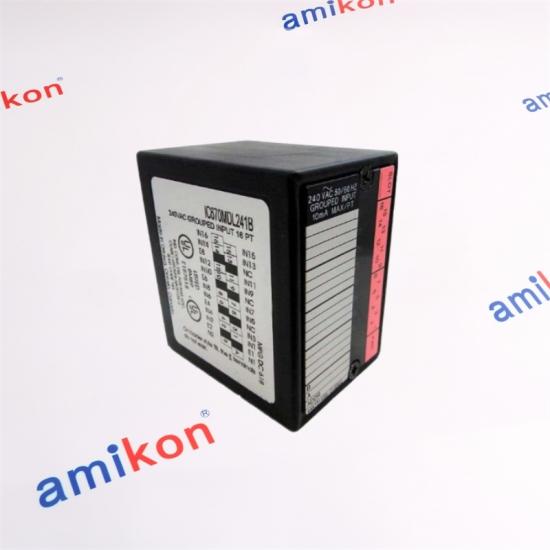

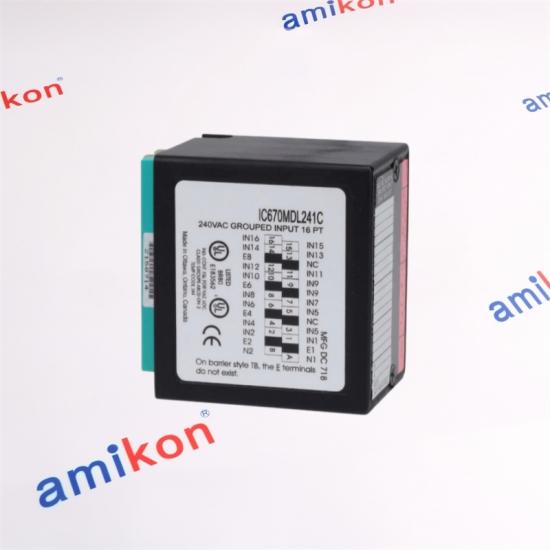

GE FANUC
IC670MDL241
Discrete Input Module
Field Control Series
CATALOG NUMBER
IC670MDL241
|
|
● |
| GE FIELD CONTROL | Overview Specifications Application FAQ Contact |
|
01
Input Capacity
16 Points
|
02
AC Input Range
0–265 VAC
|
03
Response
20 ms max.
|
04
Architecture
Grouped Input
|
|
ORDER DETAILS
Request a Quote With These Details
|
SUPPLY DETAILS
Simple Purchasing Arrangement
|
|
↺
Refund &
|
01 Please contact us within 7 days if you have any question after you receiving the items.
02 The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we receive the returns.
03 The buyer is responsible for all the shipping cost incurred.
|
Focused on the technical questions that matter when replacing or checking this module in an operating Field Control station.
|
01 What should be checked first when one IC670MDL241 channel no longer follows the expected AC state?
Start with the field voltage at the affected input, then compare the measured value with the module’s ON-state and OFF-state ranges. The expected ON range is 155–265 VAC, while 0–40 VAC represents the OFF range.
|
|
02 Why can the external AC supply remain present while the module itself appears inactive?
The field input supply and the module operating supply are separate functions. IC670MDL241 receives its own operating power through the Bus Interface Unit, while the field input group requires external 240 VAC. Both sides therefore need to be considered during troubleshooting.
|
|
03 How does the 2 × 8 input arrangement affect field wiring?
The module provides 16 discrete input points arranged as two groups of eight. Each isolated group uses its own external 240 VAC field supply, so replacement work should preserve the existing grouping and field-power arrangement.
|
|
04 Is a slow-changing AC input necessarily a failed IC670MDL241?
Not necessarily. The specified maximum ON and OFF response times are both 20 ms. Before replacing the module, the field device, wiring, actual AC level and the associated host-side processing should also be checked.
|
|
05 What makes IC670MDL241 a relevant replacement search when an existing Field Control station loses multiple AC inputs?
Because the module provides 16 AC discrete inputs in a two-group arrangement, a fault affecting several related points can make the module, its field supply arrangement, terminal connections or the Bus Interface Unit part of the replacement investigation. Matching the exact catalog number and existing station configuration is important before substitution.
|
