GE IC670MDL330Field Control 12–120 VAC, 16-Point Grouped Output

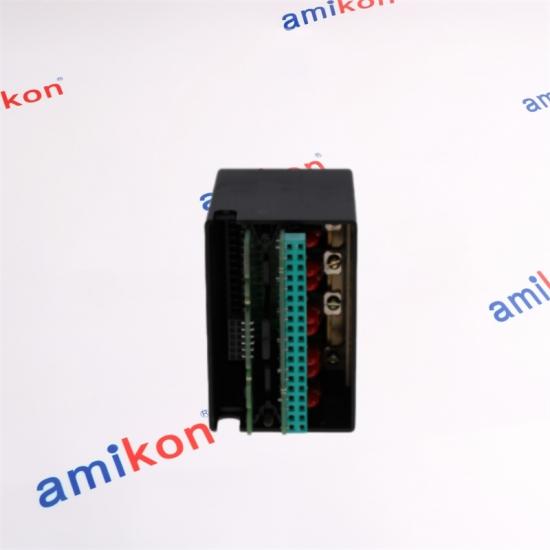

IC670MDL330 provides one group of 16 AC discrete outputs. Module electronics receive operating power from the Bus Interface Unit, while an external AC supply powers the connected field loads.
|
↗
Availability Desk
Confirm stock and lead time
SALES MANAGER
Miya Zheng
EMAIL
sales@amikon.cn PHONE / WHATSAPP
86-18020776792 |
|
01 / ELECTRICAL PROFILE
AC output capacity at a glance |
|
|
01
Host command
The host or local processor supplies 16 output bits through the Bus Interface Unit. |
→ |
02
Serial transfer
Output states are sent serially and looped back to the Bus Interface Unit for verification. |
→ |
03
Logic isolation
Opto-isolators separate the module logic from the field-side output circuits. |
→ |
04
Load switching
The external AC supply powers the switches that drive the connected loads. |
|
SWITCHING PERFORMANCE
Fast AC output response
|
ISOLATION & BIU LOAD
Field-side separationFIELD CIRCUIT TO LOGIC / FRAME GROUND
250 VAC continuous
1500 VAC for one minute
BIU CURRENT DRAW
275 mA
With all 16 outputs energized
The 16 outputs share one group. Individual output points are not isolated from one another. |
|
03 / FIELD USE
When this output module becomes critical |
IC670MDL330 is used in GE Field Control stations where a host controller must switch groups of AC-powered field loads. Typical duties include contactor coils, pilot devices, annunciators and other compatible AC loads operating within the module’s electrical limits.
Loss of this module or its shared fuse can stop multiple AC loads at the same time, potentially interrupting a machine sequence or an entire process section. |
|
1 A
Long-term point limit
|
4 A
Maximum module total
|
10 A
One-cycle surge limit
|
5 A
Shared slow-blow fuse
|
The shared 5 A fuse protects the complete module against excessive total current. It does not provide separate overcurrent protection for each output point. Replacement requires a 5 A, 5 × 20 mm slow-blow fuse.
|
05 / INSTALLATION
Terminal-block compatibility |
Disconnect field power before fuse replacement or wiring work. Apply normal electrostatic-discharge precautions whenever the module is removed from its base.
|
| 01 | How many outputs does IC670MDL330 provide?It provides 16 discrete AC outputs arranged as one electrical group. |
| 02 | What AC voltage can the module switch?Its rated voltage is 12–120 VAC, with an operating output range of 10–132 VAC at 47–63 Hz. |
| 03 | Can every output carry 1 A simultaneously?Each point is rated for up to 1 A, but the complete module is limited to 4 A with the required temperature derating. |
| 04 | What does an unlit PWR LED indicate?It can indicate loss of appropriate module power or a blown shared output fuse. A blown-fuse diagnostic is also delivered to the Bus Interface Unit. |
| 05 | Does IC670MDL330 power the attached loads?No. The Bus Interface Unit powers the module electronics, but the field loads require a separate external AC supply. |
|
