GE FIELD CONTROL · RTD TEMPERATURE INPUT

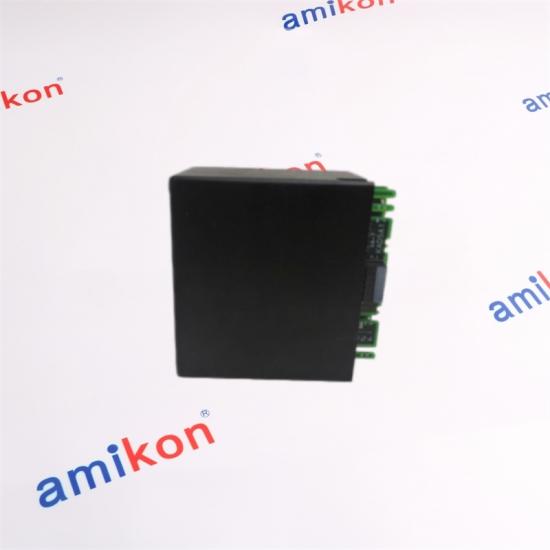

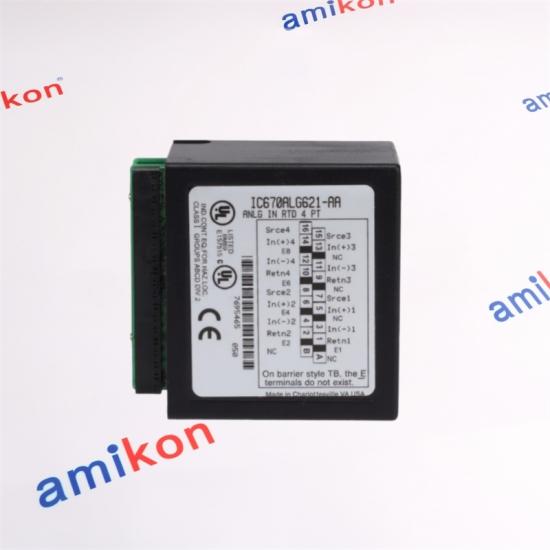

GE IC670ALG621Four-Channel RTD Analog Input Module
A Field Control temperature-input module for acquiring four independent resistance-temperature signals. Each channel can be configured separately for supported platinum, nickel, nickel/iron or copper RTDs and can return temperature or resistance values to the Bus Interface Unit. |
◇
PART NUMBER
IC670ALG621
REQUEST A QUOTE → |
|
INPUTS
4 independent
|
FIELD WIRING
3-wire / 4-wire
|
RESOLUTION
15 bits + sign
|
OPERATING RANGE
0°C to 55°C
|
|
SIGNAL PATH
Four measurements.
|
HOW THE MODULE OPERATES
RTD resistance converted into usable control values
|
| Module family | Field Control | Input capacity | 4 independent RTD inputs |
| RTD construction | 3-wire or 4-wire | Resistance selections | 0–500 Ω / 0–3000 Ω |
| Reported units | 0.1 Ω / 0.1°C / 0.1°F | Line-frequency setting | 50 Hz or 60 Hz |
| Scan period | Approx. 210 ms/point at 60 Hz; 230 ms/point at 50 Hz | Digital resolution | 15 bits plus sign |
| Accuracy at 25°C | ±0.15% of reading; temperature result depends on RTD type | Lead resistance | 5 Ω maximum per lead |
| Channel isolation | 250 VAC continuous | BIU current draw | 190 mA maximum |
|
SENSOR FLEXIBILITY
Multiple RTD families on one stationChannel-by-channel setup supports mixed temperature points without requiring every input to use the same RTD construction. |
|
|
CHANNEL SUPERVISION
Conditions reported to the controller
|
CALIBRATION BEHAVIOR
Automatic correction during operationA/D calibration runs at power-up and repeats every minute to compensate for ambient-temperature changes. Each input can be activated separately and assigned its own RTD type, units and high/low alarm thresholds.
|
|
Typical placement
Field Control stations monitoring bearings, vessels, process equipment, heat exchangers, ovens and other RTD-equipped machinery. |
Why maintenance teams search
Unstable temperature values, an open sensor circuit, repeated range alarms, lost channel data or a module-status fault may trigger replacement checks. |
Operational exposure
Loss of a required temperature point can interrupt supervision, force conservative operation or stop a process whose interlocks depend on that measurement. |
|
INSTALLATION FRAMEWORK
Grounding and field wiring matterField Control terminal blocks mount on a conductive 35 × 7.5 mm DIN rail. The rail forms part of the grounding path and should remain unpainted. |
|
|
◎
Operating environment
0°C to 55°C ambient
5% to 95% RH, non-condensing −40°C to 85°C storage |
↔
Control exchange
4 analog input words
Optional 32 channel-status bits Optional 8 fault-clearing bits |
△
Status indicator
On: normal operation
Intermittent flash: module fault Off: no backplane power or fatal fault |
