VERSAMAX POWER ARCHITECTURE
IC200PWR101
120/240 VAC Power Supply

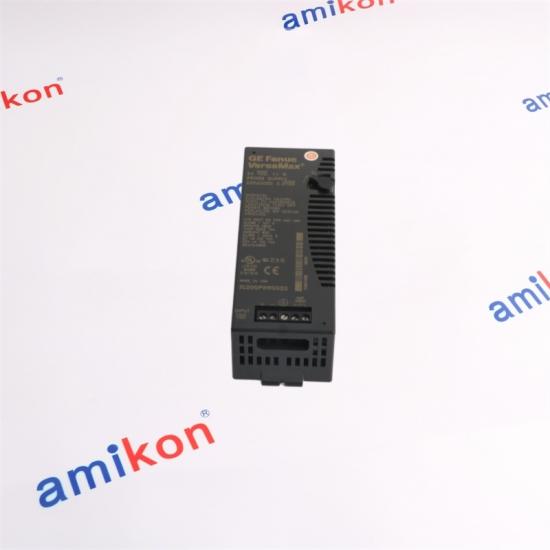

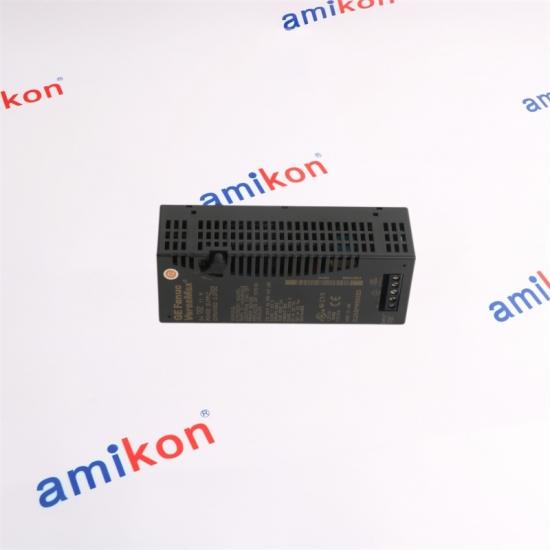

The IC200PWR101 is a VersaMax power supply designed to provide backplane power for CPU, Network Interface Unit and I/O modules. It accepts nominal 120 VAC or 240 VAC input and provides 5 VDC and 3.3 VDC outputs for the VersaMax station.
|
POWER PROFILE
120 / 240
VAC nominal input
VersaMax power supply architecture for rack backplane power distribution.
|
|
DESIGN ROLE
Station Power
When mounted on a VersaMax CPU or NIU, the IC200PWR101 serves as the main power supply for the station. It can also be used as a supplemental source when mounted on a Power Supply Booster Carrier. OUTPUT STRUCTURE
+5 VDC | +3.3 VDC
SYSTEM POSITION
The supply is part of the VersaMax modular power architecture, supporting the electrical requirements of modules connected to the station backplane. |
ELECTRICAL SPECIFICATION
IC200PWR101 / CORE DATA
|
|
INSTALLATION LOGIC
Input Selection & Power Use
Important installation point
A jumper must not be used for 240 VAC operation. For 120 VAC nominal operation, the jumper is installed as designated on the power supply. |
WHERE IT FITS
CPU / Controller station
Network Interface Unit station
Booster Carrier supplemental power arrangement
VMX
|
|
MAINTENANCE VIEW
|
| Model | Input | 3.3 VDC Output | Application Position |
| IC200PWR001 | 24 VDC | 0.25 A max. | Standard 24 VDC power supply |
| IC200PWR002 | 24 VDC | 1.0 A max. | Expanded 3.3 VDC power |
| IC200PWR101 | 120/240 VAC | 0.25 A max. | AC-input station power |
| IC200PWR102 | 120/240 VAC | 1.0 A max. | Expanded 3.3 VDC power |
|
AMIKON INDUSTRIAL SUPPORT
Need IC200PWR101
for your system? Send the exact part number together with your quantity and system details. Our sales team can assist with availability, delivery and replacement requirements. |
| Part Number | Quantity | Destination | Required Date | Machine / System |
| Delivery 3–5 Days |
Warranty 12 Months |
Packaging Brand New |
Payment T/T |
|
Q1. Is IC200PWR101 suitable for a 120 VAC VersaMax installation?
Yes. IC200PWR101 supports 120 VAC nominal input within the 85–132 VAC range when the designated 120 V jumper is installed. Q2. Can IC200PWR101 replace a 24 VDC VersaMax power supply?
Not as a direct input-voltage equivalent. IC200PWR101 is a 120/240 VAC-input unit, while models such as IC200PWR001 and IC200PWR002 use 24 VDC input. The existing station supply arrangement must therefore be checked before replacement. Q3. What should be checked when replacing IC200PWR101 with another VersaMax power supply?
Check the required input type, the 5 VDC and 3.3 VDC loading, and whether the application needs the standard or expanded 3.3 VDC capability. |
Q4. Does IC200PWR101 provide enough 3.3 VDC current for every VersaMax configuration?
IC200PWR101 provides up to 0.25 A on the 3.3 VDC output. Applications requiring greater 3.3 VDC capacity should use an appropriate expanded-power model rather than assuming the standard unit is interchangeable. Q5. Is IC200PWR101 appropriate as supplemental station power?
Yes. The IC200PWR101 can serve as a supplemental power source when mounted on a VersaMax Power Supply Booster Carrier. This arrangement is intended for applications where additional station power is required. |
 |
