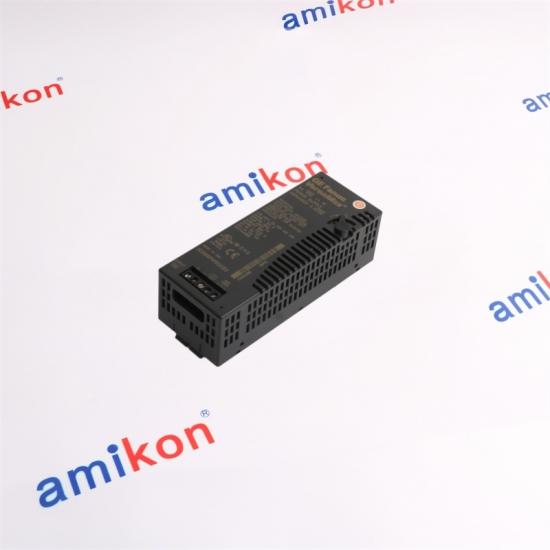

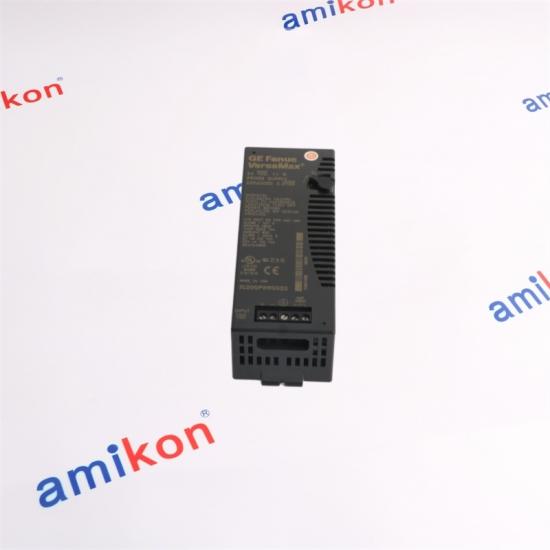

GE IC200PWR002 24 VDC Expanded 3.3 V Power Supply

GE IC200PWR002
GE IC200PWR002
GE IC200PWR002

GE IC200PWR002 24 VDC Expanded 3.3 V Power Supply

Calculate shipping
Quotation Request
❖ GE FANUC  • - • - •  VersaMax Power Supply ✦ MODEL: IC200PWR002
VERSAMAX SYSTEM
Power Supply Module
IC200PWR002
24 VDC Expanded Input
Power Supply Unit
⚡ High Efficiency Power
Reliable System Gateway
■ KEY SYSTEM PARAMETERS
▲ Input Voltage: 24 VDC Nominal (Accepts 18 to 30 VDC Input Range)
▲ Output Capacity: Provides 5 VDC @ 1.5A to Backplane Expansion Bus
▲ Module Type: Expanded Power Supply Module for Expansion Racks
Sales Manager: Miya zheng
✉ Email: sales@amikon.cn ☎ WhatsApp: 86-18020776792
✦ We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world. ✦






GE INTELLIGENT PLATFORMS
IC200PWR002

24 VDC Expanded 3.3 V Power Supply
The IC200PWR002 provides backplane power for VersaMax CPU, NIU and I/O modules. It can serve as the main power supply when mounted on a CPU or NIU, and can also provide supplemental power when mounted on a Power Supply Booster Carrier.
24 VDC NOMINAL 1.5 A TOTAL 11 W








POWER SUPPLY
VERSAMAX
01 / PRODUCT PROFILE
Power where the VersaMax station needs it

IC200PWR002 is a 24 VDC expanded 3.3 V power supply for the VersaMax platform. It supplies the station backplane through 5 VDC and 3.3 VDC outputs and supports the power requirements of CPU, NIU and I/O modules.
INPUT RANGE
18–30 VDC
24 VDC nominal
OUTPUT
5 VDC + 3.3 VDC
Total output current: 1.5 A max.
3.3 V OUTPUT
1.0 A max.
INPUT POWER
11 W

02 / TECHNICAL
Specifications

Input Power 11 W
Holdup Time 10 ms
Inrush Current 20 A @ 24 VDC
At 30 VDC 25 A
Protection Short circuit / overload / reverse polarity
Dimensions 49 × 133.4 × 39 mm
03 / ENGINEERING ROLE
Designed around the VersaMax backplane
The expanded 3.3 V design allows the available 1.5 A total backplane current to be shared between the 3.3 V and 5 V outputs. When 3.3 V current is used, the available 5 V current is reduced accordingly.
MAIN SUPPLY
Mounted on a VersaMax CPU or NIU
Used as the station's main power supply.
SUPPLEMENTAL SUPPLY
Mounted on a Power Supply Booster Carrier
Provides supplemental station power.
GROUNDING
DC− must be grounded
The power supply is internally grounded to frame.
PROTECTION
Built-in protective functions
Short circuit, overload and reverse polarity protection.
04 / SERIES
VersaMax Power Supplies

The VersaMax power-supply family includes 24 VDC, AC input and 12 VDC variants, with standard, isolated and expanded 3.3 V configurations.
IC200PWR001
24 VDC Power Supply
IC200PWR002
24 VDC Expanded 3.3 V
IC200PWR101
120/240 VAC Power Supply
IC200PWR102
120/240 VAC Expanded 3.3 V
IC200PWR201
12 VDC Power Supply
IC200PWR202
12 VDC Expanded 3.3 V
05 / REPLACEMENT CONSIDERATIONS
When replacement becomes necessary
When a VersaMax station loses its expected backplane power, replacement evaluation should focus on the exact part number, input range, output requirements and total 5 V / 3.3 V current demand.
For IC200PWR002, the combined 3.3 V and 5 V output current must remain within the 1.5 A total limit. This is especially important when the station has a significant 3.3 V load.
CHECK BEFORE ORDERING
01 Confirm IC200PWR002 part number.
02 Confirm 18–30 VDC input compatibility.
03 Check the station's combined 5 V and 3.3 V load.
04 Verify the intended CPU, NIU or booster-carrier arrangement.

06 / SALES CONTACT
Need IC200PWR002?
Send the exact part number together with your quantity and destination.
Sales manager: Miya zheng
EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792
QUOTE CHECK
Prepare these details
Part Number Quantity Destination Required Date Machine/System
GLOBAL SERVICE
Delivery: 3–5 days
Warranty: 12 months
Condition: Brand New
Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS
Payment term: T/T
RETURN / REPLACEMENT
Please contact us within 7 days if you have any question after receiving the items.
Returned items should remain in their original condition and include the specific reason for return.
After the returned items are received, we will arrange a return or replacement as applicable.
The buyer is responsible for shipping costs incurred in the return.











07 / FAQ
IC200PWR002
Buyer Questions
Five practical checks for sourcing, replacement and system compatibility.
Can IC200PWR002 replace a standard VersaMax 24 VDC power supply when the station requires more 3.3 V capacity?
IC200PWR002 is the expanded 3.3 V version of the 24 VDC VersaMax power supply family. It provides up to 1.0 A on the 3.3 V output, while the combined 3.3 V and 5 V output current remains limited to 1.5 A.
Is IC200PWR002 suitable when the incoming DC supply can vary across the normal 24 VDC range?
The specified input range is 18 to 30 VDC, with 24 VDC as the nominal input. A replacement should therefore be checked against the actual external DC supply before ordering.
Can IC200PWR002 be used as supplemental power for a larger VersaMax I/O station?
Yes. The unit can be mounted on a VersaMax Power Supply Booster Carrier for supplemental station power. This arrangement should be evaluated together with the station's backplane current requirements.
What should be checked before ordering IC200PWR002 for a replacement project?
Confirm the exact part number, 18–30 VDC input range, required 3.3 V and 5 V loads, and whether the unit will be mounted on the CPU/NIU or on a booster carrier.
What should be investigated if an IC200PWR002 replacement does not restore station power?
Check the external DC supply, polarity and grounding, then review the station's total 5 V and 3.3 V load. The unit includes short-circuit, overload and reverse-polarity protection, so the surrounding power and load conditions should also be examined.
