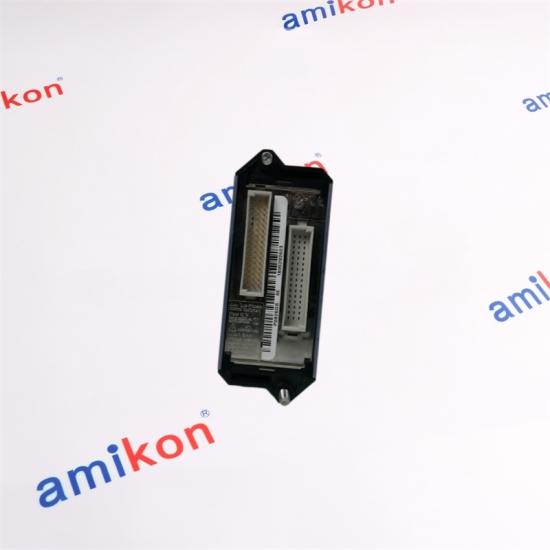

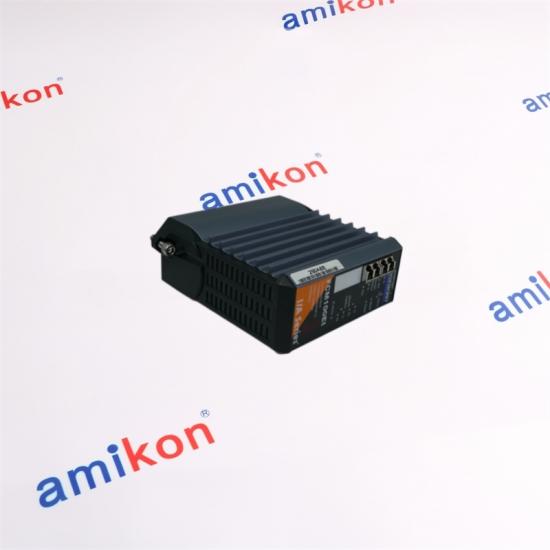

FOXBORO FCM100E Redundant Fieldbus Communications Module

Calculate shipping

Quotation Request

FOXBORO DCS · FIELDBUS

FCM100E

Redundant Fieldbus Communications Module connecting the control network with Foxboro fieldbus modules.

NETWORK BRIDGE

100 Mbps control network interface

COMMUNICATION LAYERS

CONTROL NETWORK 100 Mbps	200 SERIES BUS 2 Mbps
100 SERIES FIELD BUS 268 Kbps

CAPACITY · Up to 32 × 200 Series FBMs or up to 64 × 100 Series FBMs

AMIKON CONTACT

Miya zheng

Sales Manager

EMAIL WHATSAPP

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

FOXBORO / FIELD COMMUNICATION

FCM100E

Redundant Fieldbus Communications Module

Part Number: P0972ZA ◆ 100 Mbps Ethernet ◆ 2 Mbps / 268 Kbps Fieldbus

COMMUNICATION BRIDGE

FCM100E provides the communication interface between the ZCP270, 200 Series FBMs, 100 Series FBMs and supported migration equipment.

100 Mbps Ethernet ↔ Module Fieldbus

Single module or redundant pair

01 / ROLE

Network
Interface

The Foxboro FCM100E is designed to bridge high-speed Ethernet communication with the Module Fieldbus used by Foxboro 200 Series or 100 Series FBMs. It communicates with the ZCP270 through a 100 Mbps network and provides either a 2 Mbps connection for 200 Series FBMs or a 268 Kbps connection for 100 Series FBMs.

↔

100 Mbps Ethernet

Fast Ethernet communication toward the control-network side.

2 Mbps Fieldbus

For 200 Series DIN rail mounted FBMs and supported migration modules.

268

268 Kbps Fieldbus

For 100 Series FBMs and selected migration equipment through the appropriate fieldbus interface.

↺

Redundant Operation

A pair can provide FBM-level redundancy with automatic role reversal after detected failures.

FCM100E ARCHITECTURE

From Control Network to Fieldbus

ZCP270 / CONTROL NETWORK

100 Mbps Ethernet

Fiber optic connection

→

FCM100E

P0972ZA

Ethernet ↔ Module Fieldbus

→

FBM GROUP

200 Series / 100 Series

Redundant Fieldbus paths

02 / CAPACITY

Communication Scale

Maximum 200 Series FBMs per FCM100E

Maximum 100 Series FBMs per FCM100E

Actual module count remains subject to control-processor sizing constraints.

FIELD BUS DISTANCE

60 m 2 Mbps Fieldbus maximum cable length	1830 m 268 Kbps Fieldbus maximum cable length
2 km Maximum fiber distance to Ethernet switch	62.5/125 µm Multimode fiber material

03 / TECHNICAL PROFILE

FCM100E at a Glance

Product Number	P0972ZA
Ethernet Communication	100 Mbps
Module Fieldbus	2 Mbps for 200 Series FBMs / 268 Kbps for 100 Series FBMs
Input Voltage	21 to 42 V dc
Maximum Consumption	5 W
Operating Temperature	0 to +70°C
Operating Humidity	5 to 95% RH, noncondensing
Operating Altitude	-300 to +3,000 m
Storage Temperature	-40 to +70°C
Contamination Protection	Class G3, harsh environment
Vibration	0.75 g from 5 to 500 Hz
Approx. Mass	0.6 kg per module
Dimensions	103 mm H × 51.5 mm W × 147 mm D; 114 mm H including mounting lugs
Fiber Connector	LC type; multimode fiber, 62.5/125 µm

04 / MOUNTING

Baseplate Integration

FCM100E mounts on a Modular Baseplate. The baseplate can be installed on a DIN rail or on a 19-inch rack using the appropriate mounting arrangement. Horizontal and vertical 2-, 4- and 8-position baseplates are supported.

Redundant pair positioning:
odd slot + adjacent even slot — positions 1/2, 3/4, 5/6 or 7/8.

REDUNDANCY LOGIC

FCM100E A

Active communication path

↔

FCM100E B

Redundant communication path

In redundant operation, both modules are active. When a module failure is detected, the remaining module provides backup coverage, and role reversal occurs automatically.

05 / COMPATIBILITY SCOPE

Designed Around the Foxboro Fieldbus Environment

200 Series Path

200 Series DIN rail mounted FBMs, FDSI modules, ISCM and supported migration equipment including Siemens APACS+ and Westinghouse WPDF systems.

100 Series Path

100 Series FBMs, Fieldbus Cluster I/O through the FBP10, Foxboro Hydrostatic Interface Units, Mass Flowmeters and Panel Display Stations.

Migration Path

The 268 Kbps path also supports selected Honeywell TDC 2000/TDC 3000, Bailey Net90/Infi90 and Fisher PROVOX migration equipment.

◎

A practical replacement checkpoint

When replacing an FCM100E, confirm the exact Fieldbus architecture, baseplate position, Ethernet fiber arrangement and whether the application uses the 2 Mbps or 268 Kbps Fieldbus. This is particularly important when the installation contains mixed generations of FBMs or migration equipment.

06 / PROCUREMENT DESK

Ready to Check FCM100E Availability?

Send the part number and application details so the required configuration can be checked before quotation.

EMAIL SALES
sales@amikon.cn

PHONE / WHATSAPP
86-18020776792

SALES MANAGER
Miya zheng

DELIVERY

3–5 Days

WARRANTY

12 Months

PACKAGING

Brand New

PAYMENT

T/T

DELIVERY WAY

E-packing / FedEx / EMS / TNT / DHL / UPS

For a faster quotation, please provide:

Part Number

Quantity

Destination

Required Date

Machine/System

07 / PURCHASE QUESTIONS

FCM100E FAQ

Q1 — Can FCM100E replace a single module in a redundant pair? Yes. The FCM100E supports single-module use as well as redundant installation. In a redundant arrangement, one module can be replaced while the other continues providing communication coverage. The replacement must match the actual baseplate, network and Fieldbus arrangement.		Q2 — Is FCM100E suitable when the existing FBM group contains 100 Series and 200 Series modules? The FCM100E supports either the 2 Mbps Module Fieldbus for 200 Series FBMs or the 268 Kbps Fieldbus for 100 Series FBMs. The actual installation path must therefore be checked against the Fieldbus architecture and associated baseplate/interface arrangement before replacement.

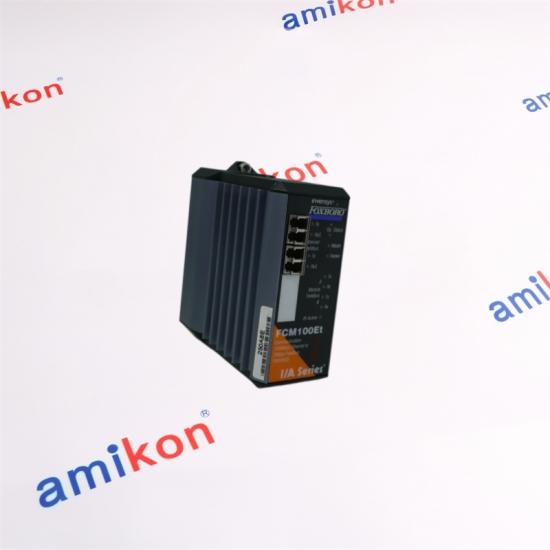

Q3 — What should be checked before ordering FCM100E P0972ZA for a long-distance Ethernet installation? Check the fiber arrangement, because FCM100E uses multimode 62.5/125 µm fiber with an LC connector. The specified cable range is 3 m up to 2 km, with lengths above 50 m supplied by the user.		Q4 — Does FCM100E provide external time synchronization and SOE/TDR functions? No. FCM100E does not support external time synchronization and SOE/TDR. Those optional functions require the FCM100Et variant, so this distinction should be checked when the replacement is part of a time-sensitive event-recording architecture.
Q5 — How should FCM100E redundancy be matched to the existing baseplate? A redundant pair uses an odd slot and the adjacent even slot on the Modular Baseplate: 1/2, 3/4, 5/6 or 7/8. Before ordering, verify the installed baseplate position and whether the existing arrangement uses a 2-, 4- or 8-position baseplate.
