FOXBORO / FBM245

FOXBORO™ DCS · STANDARD 200 SERIES

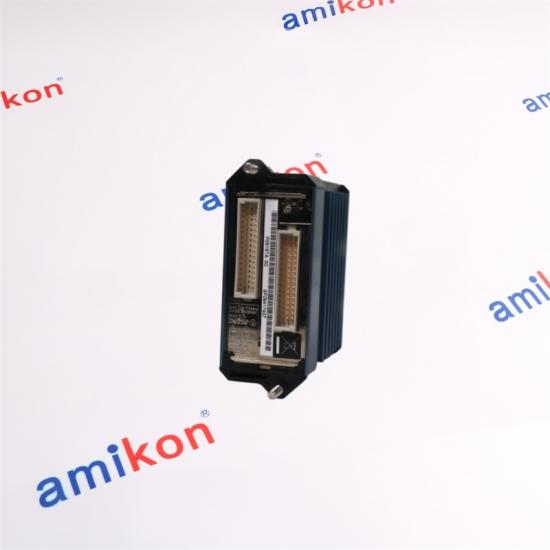

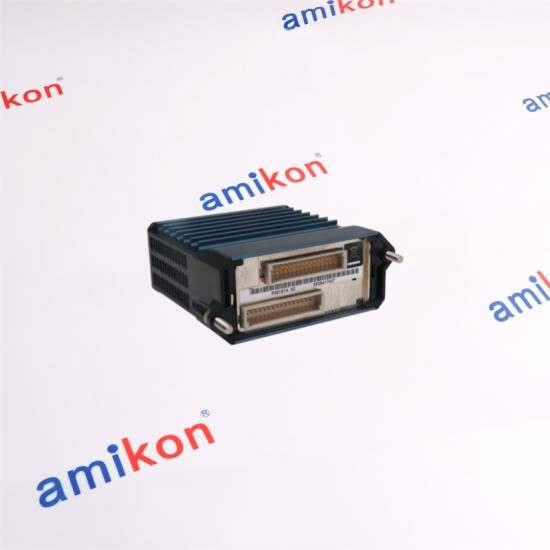

FBM245

0 to 20 mA I/O Module with HART® Support

A redundant analog I/O architecture for Foxboro DCS applications, combining four isolated analog input channels and four isolated analog output channels with HART device support.

PART NO. RH927AL

REDUNDANT I/O

◈

I/O ARCHITECTURE

4 ANALOG INPUTS	4 ANALOG OUTPUTS
HART® DEVICE SUPPORT · GALVANIC ISOLATION

Redundant 2 Mbps module Fieldbus communication

＋

CORE TECHNICAL PROFILE

ANALOG INPUT

4 CHANNELS

0 to 20.4 mA DC input range, with each channel galvanically isolated.

ANALOG OUTPUT

4 CHANNELS

0 to 20.4 mA DC output range with a maximum output load of 735 Ω.

FIELD COMMUNICATION

2 Mbps

Redundant module Fieldbus communication with active-path continuity.

01 / SIGNAL SIDE

Analog I/O + HART

FBM245 accepts analog sensor inputs such as 4 to 20 mA transmitters or self-powered 20 mA sources. Its output channels drive external loads and provide 0 to 20 mA output.

Input accuracy	±0.075% of span
Output accuracy	±0.05% of span at 25°C
Output resolution	12 bits
Output settling	100 ms within 1% band

◇

02 / REDUNDANCY

Continuity across the Fieldbus path

The FBM245 accepts communication from either path of the redundant 2 Mbps module Fieldbus. If one path is unsuccessful or switched at system level, communication continues over the active path.

A	B	↔	I/O
Path A	Path B	Redundant	Field Module

03 / INSTALLATION PROFILE

Compact modular mounting

FBM245 modules mount on a modular baseplate. The baseplate can be DIN-rail mounted or horizontally mounted on a 19-inch rack with the appropriate mounting kit.

102 mm

HEIGHT

45 mm

WIDTH

104 mm

DEPTH

284 g

APPROX. WEIGHT

Operating temperature: -20 to +70°C

Power: 24 VDC +5% / -10%

04 / HART DEVICE INTERFACE

Built for mixed HART and standard current loops

HART instruments compliant with Version 5, 6, or 7 of the HART specifications may be used. The module supports the HART universal commands required to interface field devices with Foxboro DCS.

Each channel is galvanically isolated from other channels and earth/ground. The module and termination assembly withstand 600 VAC for one minute between a channel and ground or between a channel and another channel.

TERMINATION PATH

FIELD DEVICES

→

FBM245

Termination cables can be supplied in lengths up to 30 m, allowing the TA to be located in the same or an adjacent enclosure.

DIRECT INQUIRY

Need FBM245?

Send the exact part number and application details for a faster quotation.

✉ EMAIL · MIYA ZHENG

◉ PHONE / WHATSAPP

Sales manager: Miya zheng | sales@amikon.cn | 86-18020776792

ORDER SUPPORT

Quotation details

Please provide:

Part Number	Quantity
Destination	Required Date
Machine / System

SERVICE TERMS

Ready for dispatch

Delivery	3–5 days
Warranty	12 months
Packaging	Brand New
Delivery way	E-packing / FedEx / EMS / TNT / DHL / UPS
Payment term	T/T

PURCHASE QUESTIONS

FBM245 FAQ

Can FBM245 handle mixed HART and standard 4–20 mA devices? Yes. FBM245 supports a mix of standard 4–20 mA devices and HART devices within the applicable loop-resistance limits. HART instruments compliant with HART Versions 5, 6, or 7 may be used.	What should be checked when replacing an FBM245 in an existing installation? Check the redundant baseplate arrangement, termination assembly, termination cable, field wiring configuration, power arrangement, and the required Foxboro DCS architecture before replacement.
Does FBM245 require a special termination assembly? FBM245 field wiring connects through a DIN-rail-mounted termination assembly. The specified assemblies include RH924QU and RH924QZ, along with legacy assemblies listed for compatible installations.	How does FBM245 support redundancy during a Fieldbus path issue? The module communicates through either path of the redundant 2 Mbps module Fieldbus. If one path becomes unsuccessful or is switched at system level, communication continues through the active path.
✦ Is FBM245 suitable when the installation requires channel isolation? Each input and output channel is galvanically isolated from other channels and earth/ground. The published isolation capability is 600 VAC for one minute under the specified test conditions.

↺
