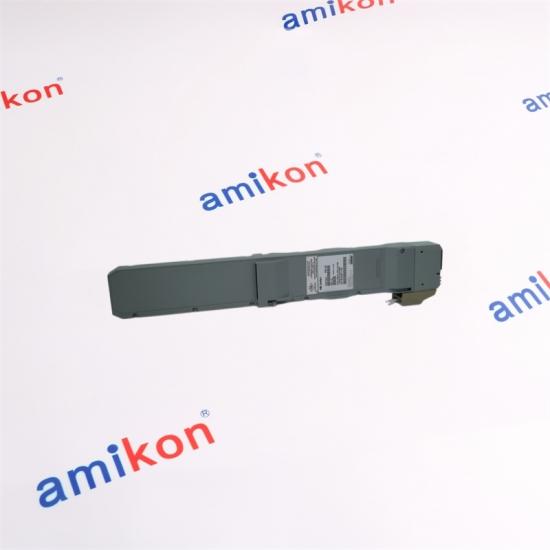

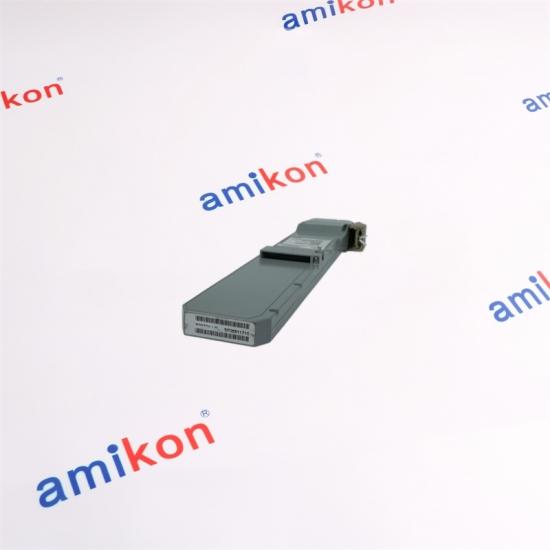

FOXBORO FBI200

FOXBORO / I/A SERIES / FIELDBUS COMMUNICATION

FBI200

Fieldbus Isolator / Filter

The Foxboro FBI200 is designed for HDLC fieldbus isolation, filtering and repeating. It interfaces a local fieldbus with an extended twinaxial fieldbus and supports both 268 Kbps and 2 Mbps communication modes for 100 Series and 200 Series Fieldbus Modules.

COMMUNICATION

268 Kbps / 2 Mbps

EXTENDED FIELDbus

Up to 1830 m / 305 m

MODULE POWER

24 V Nominal

PRODUCT IDENTIFIER

RH927AP

FBI200 Fieldbus Isolator / Filter module

Mounting: RH924RT two-position vertical baseplate
Weight: Approx. 0.36 kg per module
Housing: Molded metal exterior

01 / PRODUCT

FBI200

HDLC Fieldbus Isolation with Extended Reach

FBI200 provides isolation, filtering and repeating functions between the control processor side and an extended fieldbus. On 2 Mbps 200 Series communication, the module provides galvanically isolated drivers and supports twinaxial cable extension up to 305 m (1000 ft). For 268 Kbps communication used by 100 Series FBMs and compatible migration devices, the extended fieldbus distance can reach 1830 m (6000 ft).

Why FBI200 matters in an installed Foxboro architecture

The module allows fieldbus extension while controlling which baud-rate traffic reaches the connected field devices. This is particularly useful where 100 Series and 200 Series FBMs coexist, or where remote FBMs must be placed farther from the associated control processor.

Engineering Characteristics

01 — Dual communication rates
Supports 268 Kbps for 100 Series FBMs and 2 Mbps for 200 Series FBMs.

02 — Selective filtering
The operating mode can be configured for 2 Mbps only, 268 Kbps only, both rates, or disabled communication.

03 — Repeating capability
Integrated repeater functionality regenerates the HDLC message and enables fieldbus extension in defined cable sections.

04 — Galvanic isolation
The 2 Mbps 200 Series fieldbus uses galvanically isolated drivers.

05 — Field replacement convenience
The module can be removed and replaced from its baseplate without removing power, subject to the applicable installation procedure.

FIELD STATUS

Front-Panel LED Diagnostics

Operational Status	Red / Green LEDs
Local Fieldbus	Amber receive indication
Extended Fieldbus	Amber receive indication
Communication Mode	2 Mbps / 268 Kbps / Both

02 / TECHNICAL DATA

Specifications

Product	Foxboro FBI200	Module Part Number	RH927AP
Fieldbus Type	HDLC Module Fieldbus	Physical Layer	RS-485 fieldbus architecture
100 Series Rate	268 Kbps	200 Series Rate	2 Mbps
268 Kbps Extended Distance	Up to 1830 m / 6000 ft	2 Mbps Extended Distance	Up to 305 m / 1000 ft
Nominal Input Voltage	24 V DC	Voltage Range	-10% to +5%
Module Weight	Approx. 0.36 kg / 0.8 lb	Mounting	Vertical DIN rail mounted baseplate
Module Height	99 mm / 3.9 in	Height with Lugs	114 mm / 4.5 in
Width	44.6 mm / 1.75 in	Depth	105 mm / 4.12 in
Environmental Capability	Harsh Class G3 contamination protection / ISA S71.04

03 / FAMILY POSITION

FBI200 & Related Fieldbus Hardware

FBI200 belongs to the Foxboro fieldbus communication infrastructure used between control processors and fieldbus modules. Its role is different from an I/O module: it manages the communication path, isolation, filtering and extension of the HDLC fieldbus.

FBI200 Supports 268 Kbps and 2 Mbps HDLC fieldbus communication. It can filter the two communication rates and provides fieldbus extension and galvanic isolation for the 2 Mbps path.	FBI200A A related fieldbus isolator/filter used in the 100 Series upgrade architecture. Its installation role and mounting arrangement differ from the FBI200, so the two should be selected according to the existing fieldbus topology.
Selection point For replacement purchasing, match the existing processor type, FBM generation, fieldbus baud rate, baseplate arrangement and cable topology before selecting FBI200 or FBI200A.

04 / SYSTEM APPLICATION

Where FBI200 Adds Practical Value

Typical Deployment Conditions

Remote 200 Series FBMs
Extend the 2 Mbps HDLC fieldbus toward remote 200 Series FBM locations, with the applicable cable distance limited to 305 m per defined section.

Mixed 100 / 200 Series Architecture
With an FCP270 arrangement, FBI200 can filter the fieldbus traffic so 268 Kbps traffic reaches 100 Series devices while 2 Mbps traffic reaches 200 Series devices.

Fieldbus Extension
Repeater functionality allows the 2 Mbps fieldbus to be extended in defined 305 m sections using the appropriate fieldbus cabling and termination hardware.

Replacement & Troubleshooting Scenarios

01 / No expected fieldbus activity

Check the module status LEDs, local-fieldbus receive indication, extended-fieldbus receive indication and selected communication mode.

02 / Baud-rate mismatch symptoms

Confirm that the baseplate mode corresponds with the intended 268 Kbps, 2 Mbps or mixed-rate architecture. An incorrect mode can prevent the intended traffic from reaching the associated FBMs.

03 / Long-distance communication issue

Verify the total fieldbus cable length, termination assemblies, splitter/terminator arrangement and the number of FBI200 extension sections before replacing the module.

04 / Module replacement

Confirm the replacement module, baseplate configuration and fieldbus mode before installation. FBI200 supports replacement from its baseplate without removing power, subject to the applicable site procedure.

DIRECT COMMUNICATION

Need FBI200?

Send the exact part number and application details. We can check the available configuration and arrange the required industrial automation spare parts.

Quotation fields:
Part Number · Quantity · Destination · Required Date · Machine/System

EMAIL SALES sales@amikon.cn	PHONE / WHATSAPP 86-18020776792
Sales Manager: Miya zheng

Delivery
3–5 Days

Warranty
12 Months

Condition
Brand New

Payment
T/T

Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS

AFTER DELIVERY

Return Support

Please contact us within 7 days if you have any question after receiving the items. Returned items must remain in their original condition and include the specific reason for the return.

After the returned items are received and checked, we will arrange a return or replacement for the order according to the case. The buyer is responsible for shipping costs incurred in connection with the return.

05 / PURCHASING QUESTIONS

FBI200 Buyer FAQ

Can FBI200 be selected when a control processor must communicate with both 100 Series and 200 Series FBMs? Yes, in the appropriate FCP270 architecture. FBI200 can filter the 268 Kbps traffic intended for 100 Series devices and the 2 Mbps traffic intended for 200 Series devices, enabling dual-rate fieldbus communication.	How should FBI200 be evaluated when the existing fieldbus run exceeds the normal local cable distance? Check the fieldbus rate and topology first. FBI200 supports up to 305 m for the 2 Mbps path and up to 1830 m for the 268 Kbps path under the specified configurations. Multiple 305 m 2 Mbps sections can be used with the appropriate repeater arrangement.
What should be matched before ordering FBI200 as a replacement module? Match the FBI200 model, module part number, processor architecture, fieldbus rate, baseplate arrangement and existing cable topology. The replacement should correspond to the actual installed fieldbus configuration rather than only the external module appearance.	When is FBI200 preferable to an FBI200A during a 100 Series upgrade project? The choice depends on the upgrade topology. FBI200 is the fieldbus isolator/filter with support for both 268 Kbps and 2 Mbps communication, while FBI200A is used in the dedicated 100 Series upgrade arrangement. Confirm the mounting and bus architecture before substitution.
Why does FBI200 make sense when a replacement must preserve an established Foxboro fieldbus architecture? FBI200 is designed around the existing HDLC fieldbus architecture, including 268 Kbps and 2 Mbps operation, fieldbus filtering, isolation and extension. This makes it relevant where the objective is to restore an established control-system communication path without changing the role of the fieldbus infrastructure.
