Rise Time |
<15 μs |
|
Supply Voltage |
-23 VDC to -32 VDC |
|
Output Signal |
-4 V to -20 V (depending on configuration) |
|
Sensor Operating Temperature |
-40°C to +150°C |
|
Converter Operating Temperature |
-30°C to +100°C |
▷Team about Amikon
|
l Sales Department |
||
|
24/7 service available. Our sales team responds to your inquiries regarding any PLC, DCS, or automation products promptly, professionally, and patiently. We aim to build long-term, trusted relationships with every customer. |
||
|
l Engineering Department |
||
|
Responsible for product quality assurance. All products are fully tested before shipment to ensure optimal condition and compatibility. |
||
|
l Financial Department |
||
|
Handles payment verification and refund processes efficiently and accurately. Ensures smooth and secure financial transactions for all orders. |
||
|
l Warehouse Department |
||
|
Responsible for inventory management, careful order inspection, and packaging. Ensures goods are shipped on time, in perfect condition, and packed with attention to safety. |
||
|
|
|
|
|
Miya zheng |
||
▷Product Overview

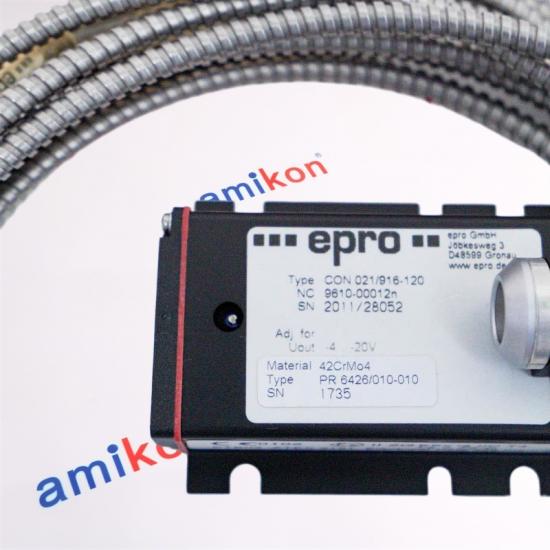

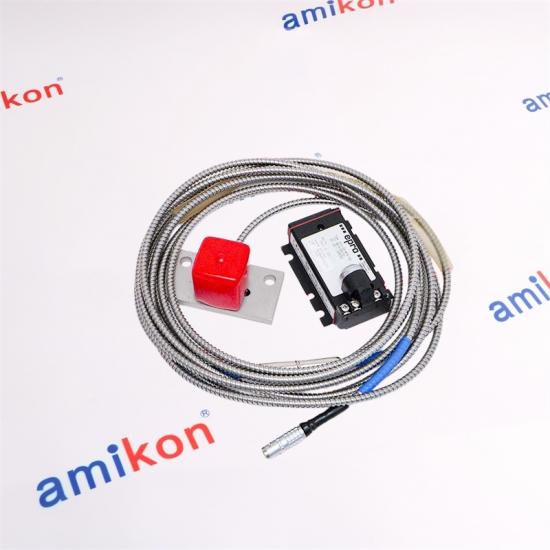

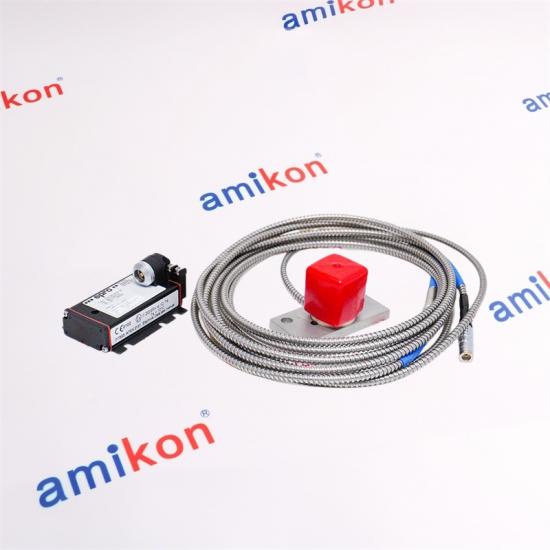

The EPRO PR6426/010-010 CON021 is a high-performance non-contact eddy current measurement system designed for critical rotating machinery protection and condition monitoring. The system combines the PR6426 displacement sensor with the CON021 signal converter, providing accurate measurement of shaft vibration, axial displacement, eccentricity, differential expansion, and rotor position in turbines, compressors, pumps, generators, and other large rotating equipment. The PR6426 series is particularly suited for larger shaft diameters and demanding turbomachinery applications.
▷Technical Specifications
|
Model |
PR6426/010-010 + CON021 |
|
Product Type |
Eddy Current Sensor System |
|
Measurement Principle |
Non-contact Eddy Current |
|
Sensor Type |
Displacement and Vibration Probe |
|
Measuring Functions |
Radial Vibration, Axial Displacement, Eccentricity, Shaft Position, Speed |
|
Linear Measurement Range |
Up to 2 mm (standard range) |
|
Initial Air Gap |
1.0 mm |
|
Sensitivity |
8 V/mm ±5% |
|
Frequency Response |
0–20,000 Hz |
|
Rise Time |
<15 μs |
|
Supply Voltage |
-23 VDC to -32 VDC |
|
Output Signal |
-4 V to -20 V (depending on configuration) |
|
Sensor Operating Temperature |
-40°C to +150°C |
|
Converter Operating Temperature |
-30°C to +100°C |
|
Protection Class |
Sensor IP66 / Converter IP20 |
|
Minimum Shaft Diameter |
35 mm |
|
Target Material |
Ferromagnetic Steel (42CrMo4 / AISI 4140) |
|
Certifications |
API 670 Compatible Applications |
|
Country of Origin |
Germany / Emerson EPRO Series |
|
Model |
PR6426/010-010 + CON021 |
▷Product Features
l Advanced non-contact eddy current sensing technology
l High-accuracy shaft displacement and vibration monitoring
l Fast dynamic response for real-time machinery protection
l Excellent long-term measurement stability
l Suitable for large rotating machinery and turbomachinery
l Wide operating temperature range for harsh industrial environments
l Rugged construction with high resistance to vibration and shock
l Compatible with Emerson EPRO machinery health monitoring systems
l Supports predictive maintenance and condition-based monitoring programs
l Designed to meet demanding power generation and process industry requirements.
▷Product Uses
l Shaft vibration monitoring
l Axial thrust position measurement
l Differential expansion monitoring
l Rotor eccentricity detection
l Speed and phase reference measurement
l Air-gap monitoring
l Machinery protection systems
▷FAQ
1. What makes the PR6426 series different from PR6423 or PR6424 sensors?
The PR6426 is optimized for larger shaft diameters and extended-range turbomachinery applications, providing superior performance in heavy-duty rotating equipment.
2. Which parameters can the PR6426/010-010 CON021 monitor?
It can monitor shaft vibration, axial displacement, shaft position, eccentricity, differential expansion, and rotational speed.
3. Why is the CON021 converter required?
The CON021 conditions and linearizes the sensor signal, providing a stable output suitable for machinery monitoring, PLC, DCS, and protection systems.
4. Is the sensor suitable for high-temperature industrial environments?
Yes. The PR6426 sensor can operate in temperatures up to approximately +150°C, making it suitable for turbines, compressors, and other critical machinery.
5. How does this system support predictive maintenance?
By continuously monitoring shaft movement and vibration characteristics, the system enables early fault detection, helping reduce unplanned downtime and maintenance costs.
