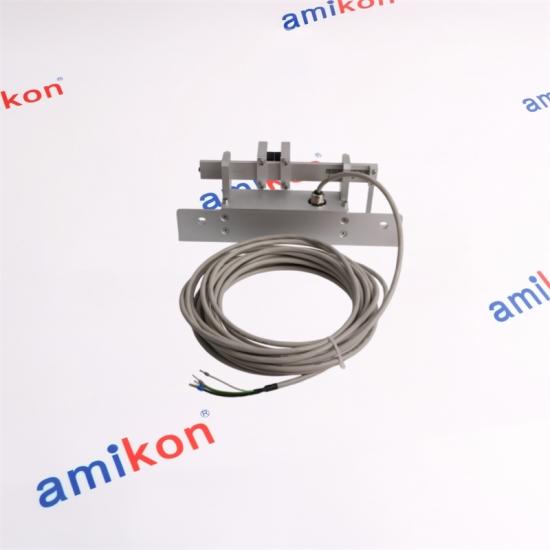

A contact-position LVDT for +/-25 mm linear travel, supplied in an oil-proof execution with a fixed 10 m cable and open cable ends.
| MATCH THE FULL ORDER CODE | ✉ EMAIL MIYA | ◉ WHATSAPP +86 180 2077 6792 | Miya Zheng Sales Manager |
|
01
PRODUCT CORE
|
Mechanical travel becomes a bridge signalThe /02 measuring body covers -25 mm through zero to +25 mm with nominal sensitivity of 270 mV/V. It operates from 5 Vrms at a 3 to 5 kHz carrier frequency. S2 identifies the oil-proof 10 m fixed-cable version. Brown, white and green are coil connections A, B and C; black is the shield and is not bonded to the housing. |
|
|
□
ALIGN
Keep the tracing pin coaxial and protect it from lateral force. |
↔
WIRE
Maintain the A-B-C coil order and the intended shield treatment. |
↔
CALIBRATE
Verify the receiving LVDT channel, mechanical zero and usable travel. |
| 01 Tracing pin follows machine movement |
| 02 PR9350/02-S2 produces an inductive bridge signal |
| 03 A6500-LC or A6500-UM processes the channel |
|
01 / PEOPLE
Responsive multilingual support for urgent automation requirements. |
02 / CHECK
Order-code matching and accountable handling. |
03 / DELIVER
Global fulfillment focused on reducing production delay. |
| MATCH THE FULL ORDER CODE | ✉ EMAIL MIYA | ◉ WHATSAPP +86 180 2077 6792 | Miya Zheng Sales Manager |
| ORDER CARE |
Contact us within seven days after receipt if an order concern appears. Returned items must remain in original condition and include a clear reason. Return or replacement processing begins after receipt and inspection. Return-related shipping costs are the buyer's responsibility. |
| 01 |
What distinguishes PR9350/02-S2 from PR9350/02-S1?
S2 has a fixed 10 m cable; S1 has a 5 m cable. Both provide +/-25 mm travel and oil-proof construction.
|
| 02 |
What supply does PR9350/02-S2 require?
It uses 5 Vrms at 3 to 5 kHz and draws 27 to 50 mA.
|
| 03 |
How are PR9350/02-S2 conductors assigned?
Brown is A, white is B, green is C and black is the cable shield.
|
| 04 |
Can PR9350/02-S2 be used outdoors?
Its stated environmental area is indoor use; site protection must suit the installation.
|
| 05 |
What should be checked before replacing PR9350/02-S2?
Confirm range, cable length, wiring, mounting geometry, converter compatibility and calibration.
|
