| V | CASE MOTION | VELOCITY SIGNAL | MONITOR INPUT |

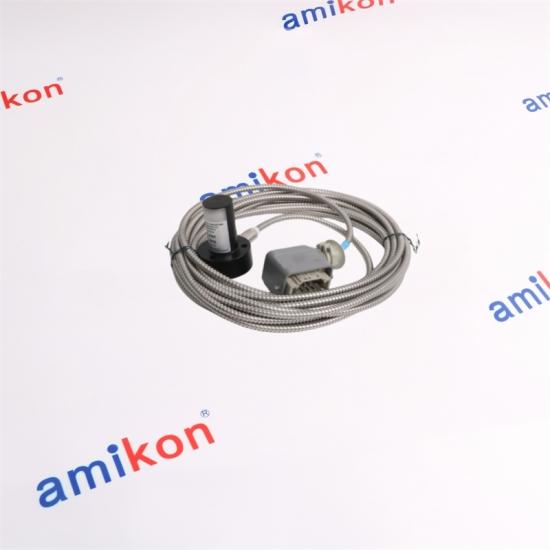

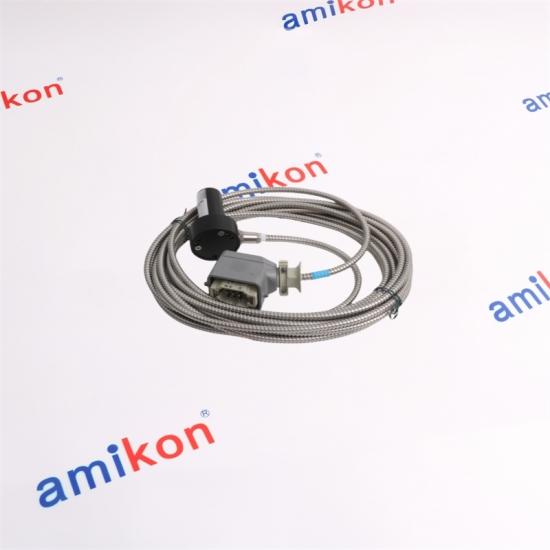

A self-powered electrodynamic sensor for horizontal absolute-vibration measurement, equipped with an 8 m armored PTFE cable and open cable ends.
| MATCH THE FULL ORDER CODE | ✉ EMAIL MIYA | ◉ WHATSAPP +86 180 2077 6792 | Miya Zheng Sales Manager |
|
01
PRODUCT CORE
|
Velocity generated directly from vibrationThe spring-mass measuring system produces a voltage proportional to vibration velocity. The /30 family is designed for horizontal mounting on bearing housings and machine casings. The usable band is 4 to 1000 Hz with 28.5 mV/mm/s sensitivity. Code 302 denotes the horizontal /30 type with an 8 m armored cable; -100 denotes open cable ends. |
|
|
□
ORIENT
Install horizontally and observe the permitted angular deviation. |
↔
MOUNT
Use a rigid machine surface so case motion reaches the sensor correctly. |
~
ROUTE
Secure the armored cable and preserve polarity at the monitor input. |
| 01 Bearing housing or casing vibrates |
| 02 PR9268/302-100 generates a velocity signal |
| 03 Compatible monitor scales alarms and protection |
|
01 / PEOPLE
Responsive multilingual support for urgent automation requirements. |
02 / CHECK
Order-code matching and accountable handling. |
03 / DELIVER
Global fulfillment focused on reducing production delay. |
| MATCH THE FULL ORDER CODE | ✉ EMAIL MIYA | ◉ WHATSAPP +86 180 2077 6792 | Miya Zheng Sales Manager |
| ORDER CARE |
Contact us within seven days after receipt if an order concern appears. Returned items must remain in original condition and include a clear reason. Return or replacement processing begins after receipt and inspection. Return-related shipping costs are the buyer's responsibility. |
| 01 |
Is PR9268/302-100 self-powered?
Yes. Its electrodynamic principle generates the measuring signal without an external sensor supply.
|
| 02 |
What orientation is required for PR9268/302-100?
It is a horizontal sensor, allowing +/-10 degrees without lifting or sinking current.
|
| 03 |
What cable is fitted to PR9268/302-100?
The code specifies an 8 m armored PTFE cable with open cable ends.
|
| 04 |
What monitor input suits PR9268/302-100?
Use an electrodynamic velocity input and verify sensitivity, polarity, loading and alarm scaling.
|
| 05 |
What acceleration limits apply to PR9268/302-100?
The limits are 10 g peak-to-peak continuous, 20 g intermittent and 2 g transverse.
|
