MACHINERY HEALTH • EDDY CURRENT MEASUREMENT
PR6424-010-140

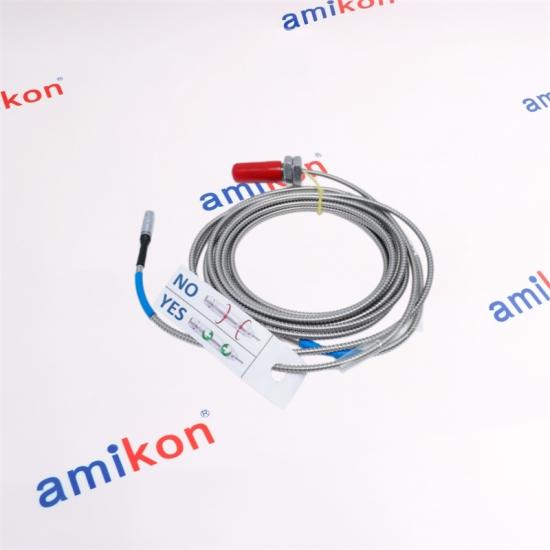

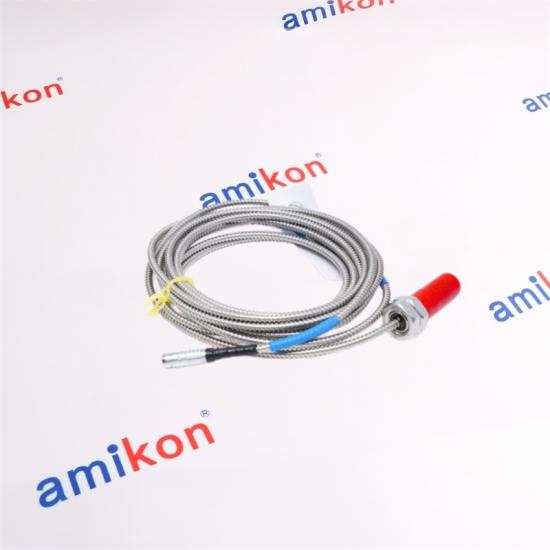

Emerson EPRO 16 mm Eddy Current Sensor
A non-contact displacement sensor for critical rotating machinery, designed for radial and axial shaft dynamic displacement, position, eccentricity and speed/key measurement.
CONFIGURATION

16 mm tip
M18 × 1.5
Armored cable
10 m / LEMO
PRECISION • NON-CONTACT • MACHINERY PROTECTION
01 / PRODUCT DETAIL
Designed Around the Motion of Large Shafts

The Emerson EPRO PR6424 is a 16 mm eddy current sensor intended for critical turbomachinery applications. Its non-contact operating principle allows shaft displacement and vibration-related motion to be measured without physical contact between the sensing head and the rotating target.

The PR6424 family provides a ±2.0 mm static measurement range and a recommended dynamic range of 100 to 1,000 μm peak-to-peak. Its nominal sensitivity is 4 V/mm (101.6 mV/mil), with a typical center air gap of approximately 2.7 mm when used within the standard measuring range.

The PR6424-010-140 configuration is particularly defined by its physical connection arrangement: M18 × 1.5 sleeve thread, armored cable, 40 mm Cx sensor length, no adaptor plug, 10 m total cable length and LEMO cable termination.
KEY CONFIGURATION
Sensor: PR6424
Tip diameter: 16 mm
Sleeve thread: M18 × 1.5
Armored cable: Yes
Cx length: 40 mm
Total cable: 10 m
Cable end: LEMO
◈
NON-CONTACT
No physical contact with the rotating shaft
◎
4 V/mm
Nominal sensitivity for 42 Cr Mo4
◇
±2.0 mm
Static measurement range
◌
100–1000 μm
Recommended dynamic range
02 / TECHNICAL PROFILE
PR6424-010-140 Specifications
Parameter PR6424-010-140 Specification
Sensor type 16 mm eddy current sensor
Measurement principle Non-contact eddy current measurement
Tip diameter 16 mm
Sleeve thread M18 × 1.5
Armored cable Yes
Cx sensor length 40 mm; overall C dimension is Cx + 12.5 mm
Adaptor plug Without adaptor plug
Total cable length 10 m
Cable end LEMO
Sensitivity / linearity 4 V/mm (101.6 mV/mil), ≤ ±1.5%
Nominal center air gap Approximately 2.7 mm
Static range ±2.0 mm
Dynamic range 0–1,000 μm recommended dynamic range
Target material Ferromagnetic steel; 42 Cr Mo4 is the standard target material
Maximum surface speed 2,500 m/s
Typical shaft diameter ≥80 mm for the standard PR6424 application range
Operating temperature -35 to 150°C (-31 to 302°F)
Temperature error <4% / 100 K, API 670 compliant
Pressure resistance at sensor head 10,000 hPa (145 psi)
Shock and vibration 5 g @ 60 Hz @ 25°C
Sleeve material Stainless steel
Cable material PTFE
What makes the configuration practical?

The armored 10 m cable configuration is suited to installations where the sensor cable needs additional mechanical protection along the route from the machine casing toward the monitoring equipment.

The LEMO termination supports connection within the PR 642x measuring chain. The complete sensor and converter combination is adjusted together for accurate measurement.
Installation points that affect replacement
Holder Stiff and vibration-free
Free space 45° around sensor head
Axial tilt Less than 2°
Tangential offset Maximum 0.5 mm
Cable bending radius Minimum 35 mm for protected/armored cable
03 / PR 642x FAMILY
Choosing the Right Sensor Range
Series Static Range Sensitivity Typical Selection Logic
PR6422 ±0.5 mm 16 V/mm Smaller measurement range
PR6423 ±1.0 mm 8 V/mm Intermediate range and smaller sensor head
PR6424 ±2.0 mm 4 V/mm Large-shaft machinery and wider displacement range
PR6425 ±2.0 mm 4 V/mm High-temperature variant within the same family
PR6426 ±4.0 mm 2 V/mm Wider displacement range and larger sensor head
Series selection note: PR6424 is the family position for a ±2.0 mm static range and 4 V/mm sensitivity. When replacing an existing sensor, the physical configuration, measuring range, converter pairing, target material and installation geometry should be checked together rather than selecting by sensor family alone.
04 / MACHINE APPLICATION
Where PR6424-010-140 fits

PR6424 sensors are intended for critical rotating equipment including steam turbines, gas turbines, hydro turbines, compressors, pumps and fans.

Typical measurement tasks include radial shaft motion, axial shaft displacement, position, eccentricity and speed/key measurements within a suitable eddy current measuring chain.
Machine condition Unexpected shaft vibration, displacement change or eccentricity trend
Replacement case A failed PR6424 sensor requires the same physical and electrical configuration
Long cable route The 10 m armored cable arrangement can suit installations requiring protected cable routing
Protection loop Use with a suitable PR 642x converter and correctly adjusted measuring chain
✦
05 / DIRECT RFQ
Confirm the Exact Configuration Before Ordering
For a replacement request, send the complete part number together with your machine details.
Sales contact
✉   Sales manager: Miya zheng   |   sales@amikon.cn EMAIL SALES WHATSAPP / +86 18020776792
Commercial terms
Delivery 3–5 days
Warranty 12 months
Packaging Brand New
Delivery way E-packing / FedEx / EMS / TNT / DHL / UPS
Payment term T/T
RFQ CHECKPOINT
Please provide Part Number + Quantity + Destination + Required Date + Machine/System when requesting a quotation.
