| Parameter | PR6423-10R-010 specification |
| Sensor principle | Non-contact eddy-current displacement measurement |
| Tip diameter | 8 mm |
| Linear measurement range | 2 mm (80 mils) |
| Initial / nominal measuring gap | The PR6423 family uses a defined probe-to-target gap; the nominal center-of-range gap is 1.5 mm on the standard PR6423 specification. |
| Incremental scale factor | 8 V/mm |
| Linearity error | Less than ±1% after calibration |
| Target | Electrically conducting steel; cylindrical shaft target |
| Recommended target diameter | Greater than 25 mm for negligible target-diameter error in the standard specification |
| Operating temperature | -35 to +180 °C; short-term operation up to +200 °C for up to 5 hours |
| Storage temperature | -40 to +70 °C |
| Sensor thread | 3/8"-24 UNF-2A for this configuration |
| Mounting configuration | Reverse-mount configuration |
| Protection class | IP66 |
| Vibration / shock nominal value | 5 g at 60 Hz at 25 °C |

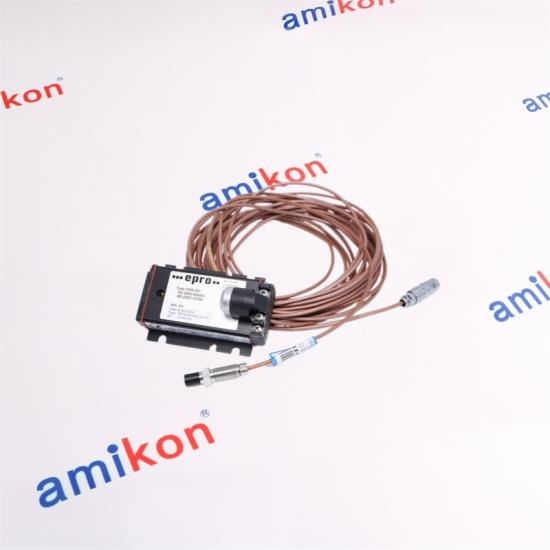

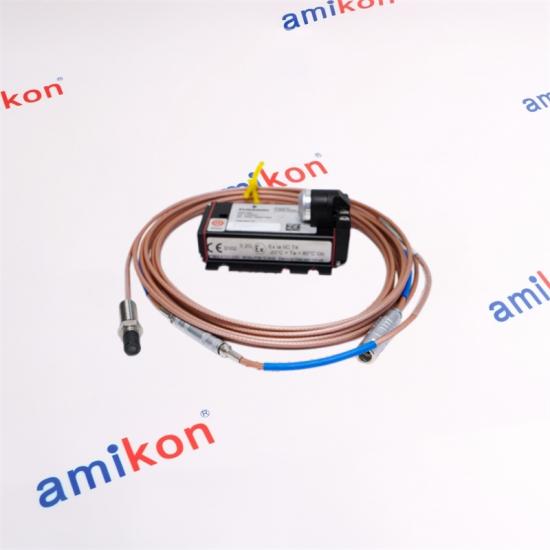

| Cable arrangement | 5 m total cable, adapter plug after the first metre, LEMO connector for converter connection |
| Maximum cable temperature | +80 °C |
| Cable protection | High-performance PTFE insulation |
| Approx. sensor weight | Approx. 0.1 kg without armored cable |
|
01 / ROTATING SHAFT
Radial & axial movement
Direct shaft measurement is useful when the monitored variable is shaft position or motion rather than casing response.
|
02 / TURBOMACHINERY
Continuous machine monitoring
The PR6423 family is used on steam, gas and hydro turbines, compressors, pumps, fans and other critical rotating machinery.
|
03 / REPLACEMENT
Configuration matching
For an existing installation, check thread type, mounting direction, cable length, adapter position and converter-side connector before ordering a replacement.
|
| Thread choice | M10 x 1 or 3/8"-24 UNF-2A | Cable choices | 4 m, 5 m, 6 m, 8 m or 10 m in the standard ordering structure |
| Cable end | LEMO connector or blunt-cut cable end | This model | PR6423-10R-010: reverse-mount, 3/8"-24 UNF, adapter plug, 5 m, LEMO |
|
DIRECT CONTACT
Miya zheng
✉ sales@amikon.cn ☎ 86-18020776792 |
Commercial Details
For a faster quotation, please provide:
Part Number • Quantity • Destination • Required Date • Machine/System
|
|
Q1. Does PR6423-10R-010 match an installation using a 3/8"-24 UNF probe thread?
Yes. This configuration uses a 3/8"-24 UNF-2A sensor thread. This point should be checked carefully when replacing an installed PR6423 probe because the PR6423 family is also available with M10 x 1 threading.
|
|
Q2. Is PR6423-10R-010 suitable when the existing probe requires a reverse-mount arrangement?
Yes. PR6423-10R-010 is a reverse-mount configuration. This makes mounting orientation an important replacement criterion rather than selecting a PR6423 model solely by its 8 mm sensing tip.
|
|
Q3. Is the 5 m cable configuration of PR6423-10R-010 important when replacing an existing probe?
Yes. The specified configuration uses a 5 m total cable length, with an adapter plug after the first metre and a LEMO connector for connection toward the converter. Cable length and connector arrangement should therefore be matched before ordering.
|
|
Q4. Can PR6423-10R-010 be used for shaft vibration and position monitoring on critical rotating machinery?
The PR6423 family is designed for non-contact measurement of static and dynamic shaft displacement and is commonly applied to shaft vibration, eccentricity, radial displacement and axial displacement. The complete measurement chain requires the appropriate converter and installation arrangement.
|
|
Q5. What should be checked before replacing an installed PR6423-10R-010?
Confirm the 8 mm probe format, 3/8"-24 UNF thread, reverse-mount arrangement, cable length, adapter-plug position and LEMO converter connection. The existing converter and the mechanical probe position should also be checked so that the replacement preserves the intended measurement chain.
|
|
