EMERSON AMS RELIABILITY
PR6422-013-041

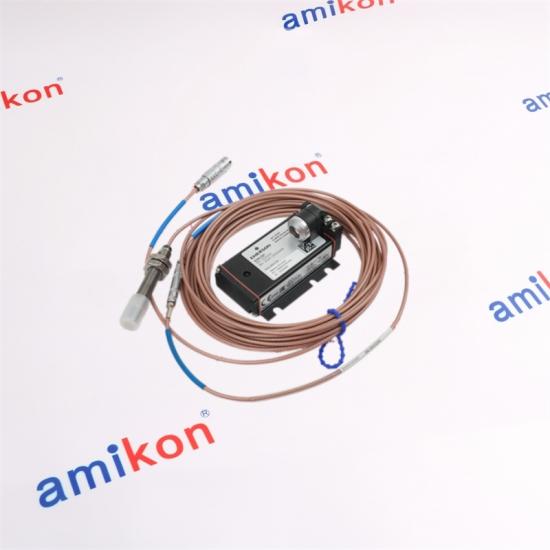

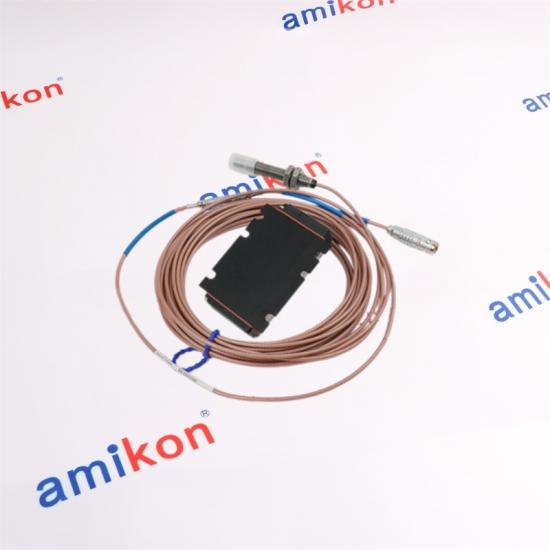

5 mm Eddy Current Sensor
A non-contact displacement sensor for critical rotating machinery, designed to measure radial and axial shaft dynamic displacement, position, eccentricity and speed.
|
|
|
01
PRODUCT DETAIL
|
Precision Non-Contact Shaft Measurement
Emerson PR6422-013-041 is a 5 mm eddy current sensor intended for critical turbomachinery measurement. The PR6422 design provides non-contact measurement of shaft displacement and can be applied to position, eccentricity and speed measurements. Its small sensor format is suited to applications where the available shaft diameter and installation space require a compact sensing element.
|
Contact Miya zheng · Email Phone / WhatsApp · 86-18020776792
|
5 mm
Sensor format
|
16 V/mm
Sensitivity
|
±0.5 mm
Static range
|
-35~180°C
Operating temperature
|
| Parameter | PR6422-013-041 |
|---|---|
| Sensor type | 5 mm eddy current sensor |
| Sensor head diameter | Approx. 5.2 mm |
| Sensitivity | 16 V/mm (406.4 mV/mil), ≤ ±1.5% maximum |
| Nominal center air gap | Approx. 0.8 mm (0.03 in) |
| Static measuring range | ±0.5 mm (±0.020 in) |
| Dynamic measuring range | 0 to 250 μm peak-to-peak |
| Long-term drift | Less than 0.3% |
| Target material | Ferromagnetic steel; 42CrMo4 standard target |
| Maximum surface speed | 2,500 m/s (98,425 ips) |
| Recommended shaft diameter | ≥20 mm |
| Operating temperature | -35 to 180°C (-31 to 356°F) |
| Short temperature excursion | Up to 200°C for less than 4 hours |
| Maximum cable temperature | 200°C (392°F) |
| Temperature error | Less than 2% per 100 K |
| Sensor head pressure resistance | 10,000 hPa (145 psi) |
| Shock and vibration | 5 g at 60 Hz at 25°C |
| Sensor material | Stainless steel |
| Cable material | PTFE |
|
0
M6 × 0.5
|
1
Armored cable
|
3
50 mm length
|
0
Adaptor plug
|
4
10 m cable
|
1
Open cable end
|
|
PR6422 → PR6426
The PR642x family covers different sensor sizes and displacement ranges for rotating machinery measurement. Selection should follow shaft geometry, required measurement range, target material, installation space and the associated converter configuration.
|
|
|
Application & Replacement Considerations
PR6422 sensors are intended for critical turbomachinery such as steam turbines, gas turbines, hydro turbines, compressors, pumps and fans. The non-contact measurement principle allows shaft movement to be monitored without physical contact between the sensing tip and rotating target.
|
MEASUREMENT FOCUS
Radial + Axial
Position / eccentricity / shaft dynamic displacement / speed
Nominal center air gap: approximately 0.8 mm
|
|
EMAIL
sales@amikon.cn
|
PHONE / WHATSAPP
86-18020776792
|
SALES MANAGER
Miya zheng
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
|
|
01 · Why does the PR6422-013-041 configuration matter when replacing an installed sensor?
The suffix specifies mechanical and cable characteristics rather than simply identifying the PR6422 family. PR6422-013-041 uses an M6 × 0.5 thread, armored cable, 50 mm sensor length, adaptor plug, 10 m cable and an open cable end. Matching these details can prevent a mechanically unsuitable or incorrectly terminated replacement.
|
02 · Can PR6422-013-041 be treated as interchangeable with another PR6422 variant?
Not automatically. PR6422 variants can differ in thread, armor, sensor length, adaptor arrangement, cable length and cable termination. A replacement should be checked against the existing mechanical installation and complete measurement chain rather than only the PR6422 family number.
|
|
|
03 · Is the PR6422-013-041 suitable where the machine shaft is relatively small?
The PR6422 is specifically positioned as a compact sensor for smaller shafts, with a stated shaft diameter of at least 20 mm. The actual mounting arrangement still needs sufficient clearance and the required target geometry.
|
04 · What should be checked with the converter before purchasing PR6422-013-041?
Verify that the installed converter is configured for the PR6422 sensor and the required measuring range. Emerson converter families such as CON011 and CON041 provide PR6422 configurations with a 1.0 mm standard range and specified extended-range options. The sensor and converter should be considered as one measurement chain.
|
|
|
05 · When should a buyer choose PR6422-013-041 instead of a different PR642x configuration?
PR6422-013-041 is particularly configuration-specific: it combines the compact 5 mm PR6422 sensor format with M6 × 0.5 mounting, armored cable, a 50 mm sensor length and a 10 m open-ended cable. It is appropriate when those mechanical and connection requirements match the existing installation. If the required measuring range, shaft size or installation geometry differs, another PR642x configuration may be required.
|
||
|
