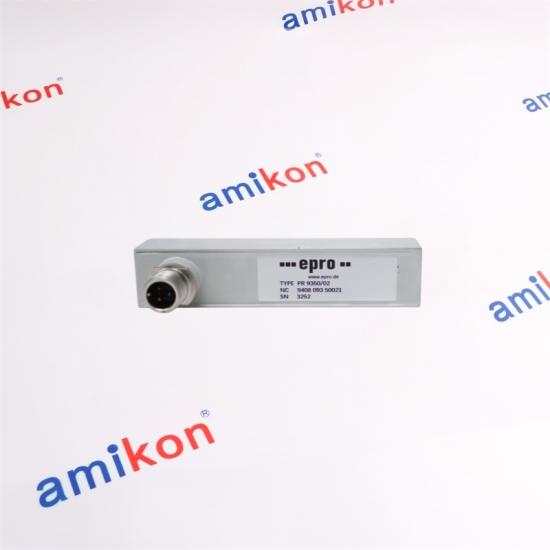

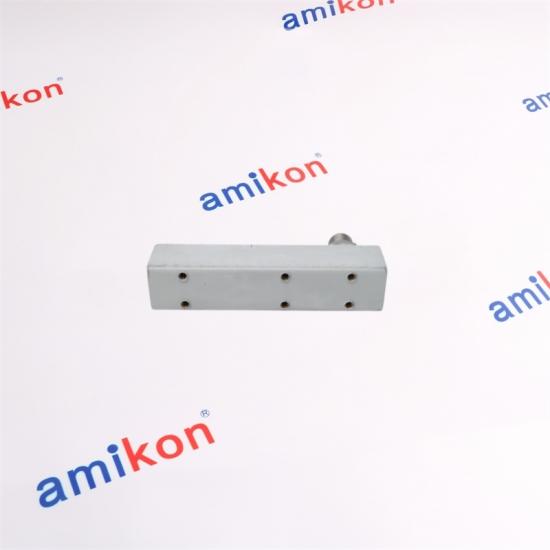

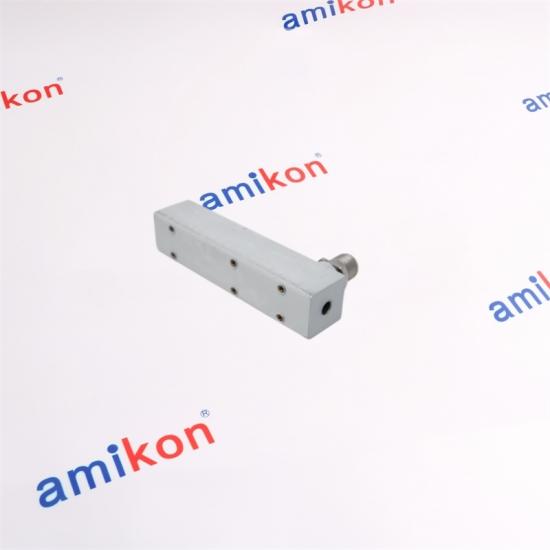

EMERSON EPRO PR9350-02 LVDT Linear Displacement Transducer

EMERSONPR9350-02
EMERSONPR9350-02
EMERSONPR9350-02

EMERSON EPRO PR9350-02 LVDT Linear Displacement Transducer

Calculate shipping
Quotation Request



PR9350-02 Inductive Speed & Reference Mark Sensor
Sensor Principle: Inductive Contactless
Carrier Frequency: 3.0 to 5.0 kHz
Sensitivity: 270 mV / V
■ GLOBAL SERVICES
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.

SALES MANAGER Miya zheng Email: sales@amikon.cn   WhatsApp: 86-18020776792



EMERSON / EPRO MACHINERY HEALTH
PR9350-02
LVDT Linear Displacement Transducer
The PR9350/02 is an inductive linear displacement transducer designed for static and dynamic displacement measurement. Its differential-coil construction, low moving mass and compact housing support precise mechanical displacement measurement across a ±25 mm range.
The sensor is designed to operate with a carrier-frequency measuring bridge and is preferably used with the A6500-LC LVDT Converter and A6500-UM Universal Measurement Card.
CORE CONFIGURATION
PR9350 / 02

Type: Inductive LVDT
Range: ±25 mm
Sensitivity: 270 mV/V
Excitation: 5 Vrms
Weight: Approx. 255 g
01 / PRODUCT DETAIL
Linear Displacement Measurement

Industrial machinery monitoring

Product Overview
The PR9350/02 is part of the PR9350 family of inductive transducers used for measuring static and dynamic displacement. The sensing element uses a differential coil arrangement with a ferromagnetic core attached to a freely movable tracing pin. Movement of the core changes the impedance relationship between the two windings and produces a bridge output proportional to displacement.
The PR9350 design combines high resolution over the measuring range, small hysteresis, compact construction and low tracing-pin mass. A compensation coil is wound directly over the measuring coil to reduce temperature drift. Dynamic measurements are supported up to 1250 Hz.

Design Characteristics
Sensing principle Differential inductive / LVDT
Measuring range -25 mm to 0 to +25 mm
Sensitivity 270 mV/V
Moving element Ferromagnetic core / tracing pin
Mechanical thread M3 at tracing-pin end
Electrical connection 3-pole Cannon connector
Measurement Architecture
The PR9350/02 works as a sensing element within a carrier-frequency measurement arrangement. A suitable bridge excitation is applied to the differential windings, while the resulting bridge voltage changes with the position of the tracing pin.
The sensor is preferably paired with the A6500-LC LVDT Converter or A6500-UM Universal Measurement Card for measurement-system integration.
The sensor itself is not a conventional 4–20 mA transmitter. When replacing a sensor in an existing installation, the excitation, converter/card arrangement and mechanical interface therefore need to match the installed measurement architecture.

TECHNICAL DATA
PR9350-02 Specifications
Parameter PR9350/02 Engineering significance
Sensor type Inductive linear displacement transducer LVDT-type differential sensing
Measuring range -25 mm to 0 to +25 mm Total span of 50 mm around the center position
Sensitivity 270 mV/V Bridge output per 1 V excitation
Sensor supply voltage 5 Vrms Safety-low-voltage carrier excitation
Sensor current 27–50 mA Excitation circuit requirement
Carrier frequency 3–5 kHz Required carrier-frequency measurement architecture
Linearity error at 100% range ±3.5% Full-range accuracy specification
Linearity error at 60% range ±0.5% Improved linearity within the central operating region
Temperature influence <3% of measuring value Specified across the permissible temperature range
Permissible temperature -20°C to +100°C Sensor operating environment
Storage / transport -40°C to +70°C Storage and transportation condition
Relative humidity 0–95%, non-condensing Permissible environmental humidity
Dynamic measurement Up to 1250 Hz Suitable for dynamic displacement measurement
Connector 3-pole Cannon connector Sensor electrical interface
Tracing-pin thread M3 Mechanical connection to measuring target
Mounting holes Internal M4 thread Sensor mounting arrangement
Approx. weight 255 g, without cable and packaging PR9350/02 mechanical mass
Environmental area Indoor use only Installation environment requirement

PR9350 FAMILY
Same-Series Model Selection
The PR9350 family uses the same basic inductive displacement principle while offering different measuring ranges. The selection should follow the required mechanical displacement range and the existing measurement-chain configuration.
Model Measuring Range Sensitivity Typical Selection Consideration
PR9350/01 ±12 mm 110 mV/V For smaller displacement ranges
PR9350/02 ±25 mm 270 mV/V Balanced ±25 mm displacement range
PR9350/04 ±50 mm 270 mV/V For larger displacement requirements
PR9350/06 ±75 mm 310 mV/V Extended displacement measurement
PR9350/08 ±100 mm 310 mV/V Large displacement measurement
PR9350/12 ±150 mm 340 mV/V Largest standard PR9350 measuring range
Application Scenarios
PR9350 transducers can measure static and dynamic displacement. With suitable mechanical accessories, physical quantities such as force, pressure, material thickness and transverse moments can also be converted into linear movement and measured.
For machinery applications, the sensor can be integrated into displacement-monitoring arrangements where the movement of a target is mechanically coupled to the tracing pin.
The ±25 mm range of PR9350/02 is particularly relevant when the expected displacement is greater than the ±12 mm range of PR9350/01 but does not require the larger ranges available from PR9350/04 and above.
Replacement & Fault Checks
01 — Open circuit: An infinite resistance indicates an interrupted sensor connection.
02 — Short circuit: A 0 Ω reading indicates a short circuit.
03 — PR9350/02 winding check: Approx. 66.0–73.6 Ω between A and C.
04 — Individual winding check: Approx. 33.0–36.8 Ω between A-B or B-C.
05 — False signal: Incorrect polarity or improper mechanical installation can produce signals that do not represent the actual measured quantity.

02 / DIRECT CONTACT
Request PR9350-02
For quotation and replacement inquiries, please provide the exact part number together with quantity, destination, required date and machine/system information.
Sales Manager Miya zheng
Email sales@amikon.cn
Phone / WhatsApp 86-18020776792
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
Brand New
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
PAYMENT TERM
T/T
SERVICE
Global Delivery
Quotation Details
Please include these five items in your inquiry:
Part Number Quantity Destination Required Date Machine / System
After-Delivery Return & Replacement
Please contact us within 7 days if you have any question after you receiving the items.
The returned items has to be in its original condition, with the specific reason for the return. We will issue a return or replacement for your order after we received the returns.
The buyer is responsible for all the shipping cost incurred.
03 / BUYER QUESTIONS
PR9350-02 FAQ
01 Is PR9350-02 a direct replacement when the existing installation uses a ±25 mm LVDT sensor?
  PR9350/02 has a ±25 mm measuring range, so the range matches an installation designed around that displacement span. However, a replacement should also match the excitation method, carrier-frequency measurement chain, connector arrangement and mechanical mounting. A range match alone does not establish full system compatibility.
What should be checked before ordering PR9350-02 for an existing machinery-monitoring installation? 02
The important checks are the ±25 mm mechanical range, 270 mV/V sensitivity, 5 Vrms sensor excitation, 3–5 kHz carrier frequency, the 3-pole Cannon connection, M3 tracing-pin interface and the associated converter or measurement card. The existing mechanical target position should also be checked before installation.
03 Why is PR9350-02 normally paired with an LVDT converter instead of being connected like a standard 4–20 mA transmitter?
  PR9350/02 is the sensing element of a carrier-frequency inductive measurement arrangement. Its specified excitation is 5 Vrms with a 3–5 kHz carrier frequency, and its sensitivity is expressed as 270 mV/V. Therefore, the sensor requires an appropriate carrier-frequency measurement interface such as the compatible LVDT converter or measurement-card architecture rather than a conventional current-loop input.
How can PR9350-02 be checked when the measured displacement signal becomes abnormal? 04
The sensor coil resistance can be checked at the connection terminals. For PR9350/02, the expected resistance is approximately 66.0–73.6 Ω between A and C, and approximately 33.0–36.8 Ω between A-B or B-C. A 0 Ω result indicates a short circuit, while an infinite resistance indicates an interrupted connection. Electrical checks should be carried out by appropriately trained personnel with machine-protection procedures observed.
05 When should PR9350-02 be selected instead of PR9350-01 or PR9350-04?
  PR9350/01 provides a ±12 mm range, PR9350/02 provides ±25 mm, and PR9350/04 provides ±50 mm. PR9350/02 therefore fits an application requiring the intermediate ±25 mm range. The selection should be based on the actual mechanical displacement and the required measurement-system sensitivity rather than choosing the largest available range.
