STRUCTURAL CORE FOR THE EIOC ASSEMBLY

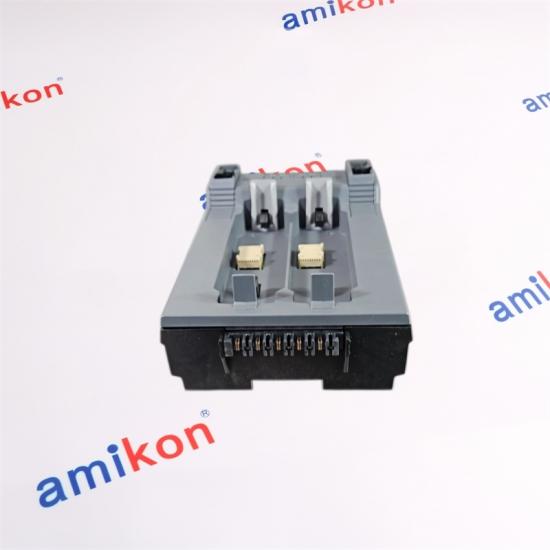

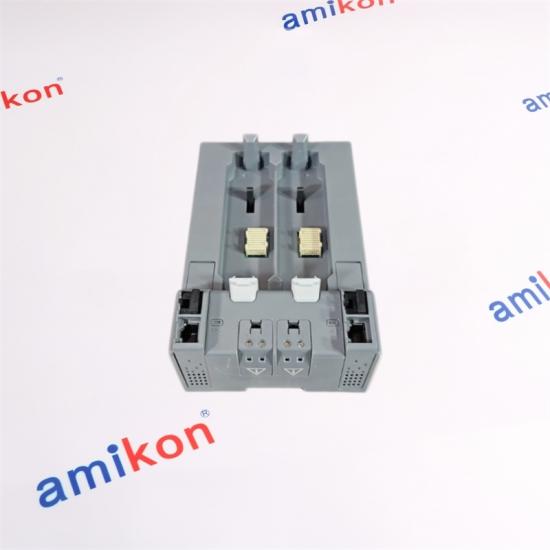

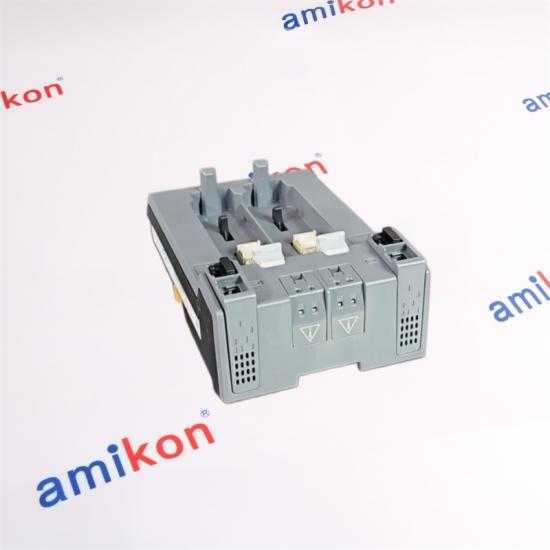

Emerson identifies KL4104X1-BA1 as the Dual Horizontal Carrier used within the DeltaV Ethernet I/O Card architecture. Its role is mechanical and architectural: it forms part of the carrier assembly that accommodates the EIOC and associated assembly components. For replacement planning, it is important to distinguish the carrier from the EIOC itself, the Ethernet isolation ports and the protective cover. These are separate model-numbered components within the same EIOC assembly structure. |
PRODUCT ROLE
DUAL HORIZONTAL CARRIER
|
|
01
EIOC
The Ethernet I/O Card is the active EIOC component in the assembly. Emerson gives KL2001X1-BD1 as the corresponding EIOC spare-part model. |
→ |
02
KL4104X1-BA1
The Dual Horizontal Carrier provides the carrier position within the EIOC assembly and is separately orderable as an EIOC spare part. |
→ |
03
Associated Components
Ethernet isolation ports and the universal carrier protection cover are separately model-numbered components of the assembly. |
KL4104X1-BA1 should be treated as a carrier component rather than as the complete Ethernet I/O Card assembly. Emerson's assembly ordering structure separates the EIOC, carrier, Ethernet isolation ports and protective cover into distinct model numbers. This distinction is particularly useful when the replacement requirement is limited to the carrier rather than the complete EIOC assembly.
|
Simplex EIOC Assembly
Emerson's SE4100 assembly includes the EIOC, Dual Horizontal Carrier, Universal Carrier Protection Cover, two Ethernet Isolation Ports for twisted copper and two power plugs. Assembly model: SE4100
|
Redundant EIOC Assembly
Emerson's SE4101 assembly includes two EIOCs, a Dual Horizontal Carrier, two Ethernet Isolation Ports for twisted copper and two power plugs. Assembly model: SE4101
|
|
KL2001X1-BD1
Ethernet I/O Card
The EIOC component associated with the carrier architecture. It is separately model-numbered from KL4104X1-BA1. |
KL1604X1-BA1
Ethernet Isolation Port for Twisted Copper
A separate EIOC spare-part component used for twisted-copper Ethernet isolation within the assembly. |
|
SE6106
Universal Carrier Protection Cover
The protective-cover component is separately model-numbered and should not be confused with the carrier itself. |
SE4100 / SE4101
Complete EIOC Assembly Options
Complete assembly models provide a useful distinction when the requirement is an entire EIOC assembly rather than an individual carrier component. |
|
SYSTEM NOTE
DeltaV EIOC Context
|
The software and protocol prerequisites below apply to the broader EIOC functionality rather than changing the mechanical identity of KL4104X1-BA1.
|
|
Sales Support
Send the exact part number, required quantity, destination and required date. For a replacement request, adding the existing assembly context can help us distinguish a carrier-only requirement from a complete EIOC assembly requirement. Part Number: KL4104X1-BA1 DeltaV EIOC
|
Miya Zheng · Sales Manager
✉ sales@amikon.cn ◉ WhatsApp +86 180 2077 6792
Delivery: 3–5 Days | Warranty: 12 Months
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
|
Q1 · Can KL4104X1-BA1 be purchased as a carrier-only replacement?
Yes. Emerson separately identifies KL4104X1-BA1 as the Dual Horizontal Carrier in the EIOC spare-parts structure. If only the carrier is required, its part number is distinct from the complete SE4100 or SE4101 EIOC assembly. |
Q2 · Does KL4104X1-BA1 itself include the EIOC card?
No. KL4104X1-BA1 is the carrier component. Emerson separately identifies KL2001X1-BD1 as the Ethernet I/O Card. A buyer replacing only the carrier should therefore verify whether the existing EIOC and other assembly components are being retained. |
|
Q3 · Is KL4104X1-BA1 the same item as the complete SE4100 assembly?
No. SE4100 is a complete simplex EIOC assembly that includes the EIOC, Dual Horizontal Carrier, Universal Carrier Protection Cover, two Ethernet Isolation Ports for twisted copper and two power plugs. KL4104X1-BA1 is only the carrier component. |
Q4 · When replacing KL4104X1-BA1, should KL1604X1-BA1 also be ordered?
Not automatically. KL1604X1-BA1 is separately identified as the Ethernet Isolation Port for twisted copper. If the existing isolation ports are serviceable and the replacement requirement concerns only the carrier, the two part numbers represent different components and should not be treated as interchangeable. |
|
Q5 · Can KL4104X1-BA1 be used when the EIOC installation requires a redundant assembly?
KL4104X1-BA1 is the Dual Horizontal Carrier used in the EIOC assembly architecture. Emerson's redundant EIOC assembly is SE4101, which includes two EIOCs along with the carrier, Ethernet isolation ports and power plugs. For a carrier replacement in an existing redundant installation, the exact assembly configuration should be checked before ordering. |
|
|
