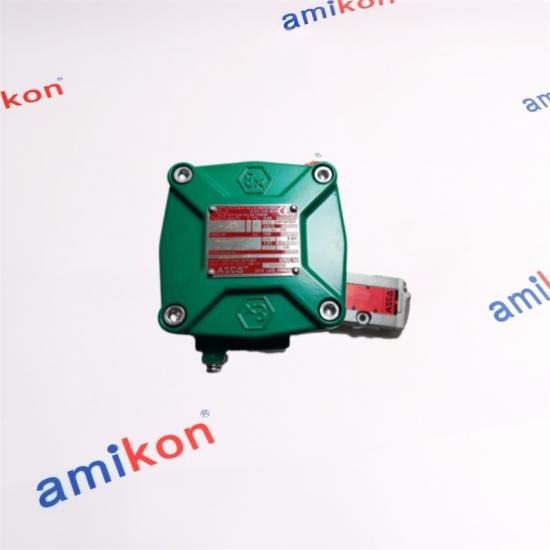

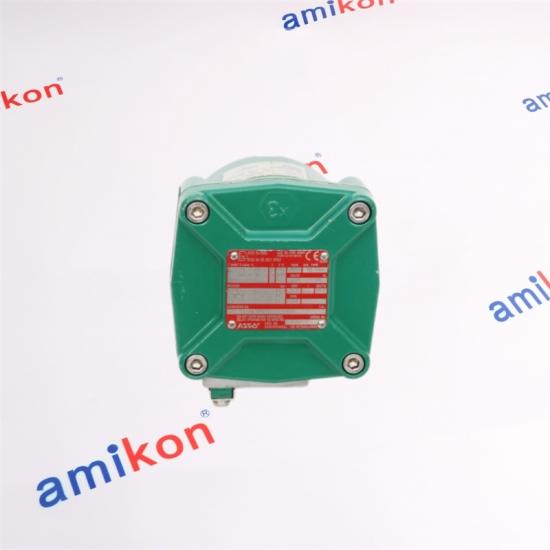

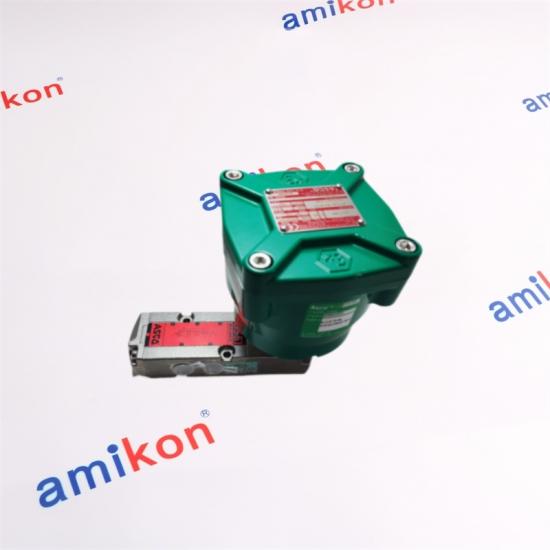

Direct-Acting 3/2-Way Control
The ASCO Series 327 / 8327 family is designed as a direct-acting 3/2-way solenoid valve family. Its balanced poppet construction supports high flow at minimum power levels, while direct actuation allows operation without a minimum operating pressure.
DESIGN FOCUS
PTFE rider rings and graphite-filled seals are used to reduce friction and sticking. The Series 327 design is intended for process valve piloting and demanding industrial service.
|
|
|
MEDIA
Air / Inert Gas
|
MEDIA
Water / Light Oil
|
COIL CLASS
H on listed variants
|
APPLICATION
Process Valve Piloting
|
|
NF8327B112
Core Configuration
3/2 universal function
1/4" NPTF port 5.7 mm orifice Direct acting Balanced poppet construction Designed for process valve piloting |
B112 VARIANTS
Ordering Options
Emerson currently lists complete B112 variants with additional coil and voltage designations. The listed NF8327B112MO.24/DC configuration uses 24 VDC and 3.6 W with a Class H coil.
|
OTHER 8327 PATHS
Related Executions
The family also includes brass and stainless-steel body executions, low-power variants, manual-reset options and NAMUR-related constructions.
|
|
PROJECT SUPPORT
NF8327B112
Replacement Support For replacement enquiries, provide the complete valve designation, required quantity, destination and required date. This helps match the correct configuration and delivery arrangement.
|
|
||||
|
Can NF8327B112 operate when the process has no minimum pressure?
Yes. The Series 8327 direct-acting design is specified for zero minimum operating pressure. This is an important distinction when the valve is being used for process valve piloting where upstream pressure may not always be available.
|
What should be checked before replacing an NF8327B112?
Check the complete installed designation rather than matching only the B112 base number. Port thread, coil voltage, power level, environmental execution and body configuration need to correspond to the existing installation.
|
|
Why is the balanced-poppet design relevant to NF8327B112?
The balanced poppet construction is intended to support high flow at relatively low power levels. This makes the 8327 architecture suitable for applications where a compact direct-acting valve is used to pilot a larger process valve.
|
Which media can be considered for NF8327B112 configurations?
The Series 8327 family includes configurations for air and inert gas, water and light oil. Media compatibility must be matched to the exact valve and seal configuration because temperature and material combinations vary across the family.
|
|
How should the NF8327B112 be matched to a replacement coil?
Use the complete ordering designation and installed electrical requirements. Emerson currently lists B112 variants with additional coil and voltage designations; for example, NF8327B112MO.24/DC is listed as 24 VDC, 3.6 W and Class H. A replacement should not be selected from the base B112 number alone.
|
|
