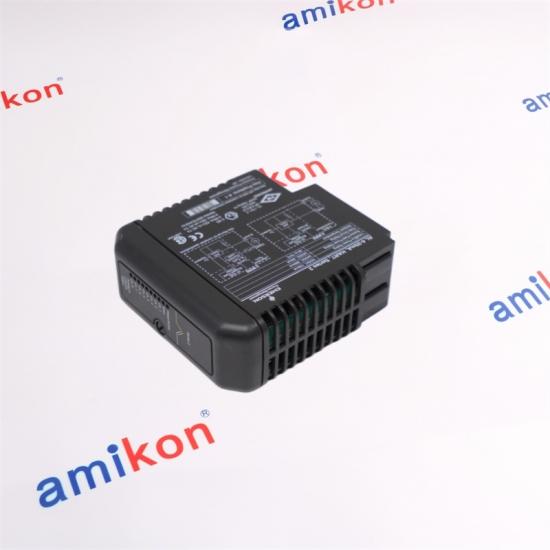

Emerson KJ3222X1-BA1 12P2532X072 Analog Output Module

The EMERSON KJ3222X1-BA1 (12P2532X072) is an 8-channel Analog Input HART Module for the DeltaV™ Distributed Control System. It is designed to acquire, process, and transmit analog field signals while supporting HART communication for advanced device diagnostics and configuration. The module enables accurate monitoring of critical process variables and improves overall control system performance.

Typical uses include:

l Collecting 4–20 mA analog signals from field instruments.

l Communicating with HART-enabled transmitters.

l Monitoring process variables such as pressure, temperature, flow, and level.

l Providing real-time process data to DeltaV controllers.

l Supporting predictive maintenance through HART diagnostics.

l Improving process visibility and operational efficiency.

Oil & Gas Industry

Used to acquire measurement signals from pressure, flow, temperature, and level transmitters in refineries, offshore platforms, pipelines, and gas processing facilities.

Power Generation Plants

Monitors critical operating parameters of turbines, boilers, generators, and auxiliary equipment to support safe and efficient power production.

Chemical & Petrochemical Processing

Provides accurate analog signal acquisition for continuous process control, safety monitoring, and plant optimization applications.

Water & Wastewater Treatment

Interfaces with flow meters, pressure transmitters, level sensors, and analyzers to ensure reliable plant operation and monitoring.

Pharmaceutical Manufacturing

Supports validated production environments by delivering high-accuracy process measurements and enhanced instrument diagnostics.

Food & Beverage Industry

Used for process monitoring and quality control applications requiring stable and reliable analog signal acquisition.

Manufacturer

Emerson

Model Number

KJ3222X1-BA1

Part Number

12P2532X072

Product Type

Analog Input HART Module

Series

DeltaV Series 2

Input Channels

8 Channels

Input Signal

4–20 mA

HART Support

Yes

LocalBus Power Rating

12 VDC @ 150 mA

Bussed Field Power Rating

24 VDC @ 300 mA

Weight

0.2 kg

Dimensions

12.7 cm × 12.7 cm × 5.1 cm

Operating Temperature

-20°C to +60°C

Country of Origin

USA

1. What is the primary function of the EMERSON KJ3222X1-BA1?

The module collects and processes analog process signals while supporting HART communication for advanced device diagnostics and configuration.

2. How many input channels does the KJ3222X1-BA1 provide?

The module features 8 analog input channels designed for 4–20 mA field signals.

3. Does the module support HART-enabled instruments?

Yes. It supports HART communication, allowing access to device status, diagnostics, configuration parameters, and additional process information.

4. Which DeltaV systems are compatible with this module?

The KJ3222X1-BA1 is specifically designed for Emerson DeltaV control systems and integrates seamlessly with DeltaV I/O architectures.

5. What are the key advantages of using the KJ3222X1-BA1?

Key benefits include high-accuracy signal acquisition, HART diagnostics, improved process reliability, easy integration with DeltaV systems, and enhanced maintenance efficiency through intelligent field device communication.
