MODEL CODE STRUCTURE
The RM configuration is the reverse-mount arrangement available with the 8 mm sensor family.
CONFIGURATION SNAPSHOT
|
NON-CONTACT MACHINERY MEASUREMENT
8 mm sensing for rotating equipment
The AMS EZ 1000 8 mm sensor family is designed for non-contact eddy-current measurement on rotating machinery. The sensor operates as part of an AMS EZ 1000 measurement chain with the associated converter, allowing shaft displacement, position, speed and related dynamic measurements without physical contact between the sensing tip and the rotating target.
|
| Tip Diameter | 8 mm | Case Thread | M10 × 1 |
| Mounting | Reverse Mount | Unthreaded Length | 0 mm |
| Cable Length | 1.0 m | Cable Type | Non-armored / FEP |
| Minimum Target Diameter | 14 mm | Recommended Target Diameter | >20 mm |
| Minimum Shaft Diameter | 20 mm | Recommended Shaft Diameter | ≥25 mm |
| Maximum Axial Tilt | <4° | Tangential Offset | <10% of shaft diameter |
| Sensor Tip | GF30 glass-fiber reinforced PEEK | Case | Stainless Steel |
| Protection | IP67 | Sensor + 1 m Cable | −35°C to +180°C |
| Cable + Connector | −35°C to +150°C | Differential Pressure | 145 psi at up to 120°C |
| Measurement Type | Non-contact eddy-current | Application | Rotating machinery |
|
MEASURING TARGET
Ferromagnetic target geometry matters
The sensing target should provide a stable ferromagnetic surface large enough for the 8 mm sensor. A target that is too small or surrounded by nearby ferromagnetic material can affect the measurement.
|
INSTALLATION GEOMETRY
Protect the sensing field
Free Space
A minimum ±45° free space with a minimum diameter of 24 mm is required around the sensor tip to reduce the influence of surrounding ferromagnetic material.
Target Size
For the EZ108x family, 14 mm is the minimum target diameter and greater than 20 mm is recommended for the target diameter.
Shaft Size
The minimum shaft diameter is 20 mm, with 25 mm or larger recommended.
Runout
The measurement track should remain concentric and free from surface irregularities that could appear as mechanical runout.
|
|
Steam Turbines
Shaft displacement, position, eccentricity and speed-related measurement applications.
|
Gas Turbines
Non-contact measurement around rotating shafts in high-value machinery.
|
Hydro Turbines
Suitable for rotating-shaft monitoring and dynamic position measurement.
|
|
Compressors
Supports shaft displacement and related dynamic measurements.
|
Gearboxes
Non-contact measurement for rotating-shaft applications.
|
Pumps & Fans
Useful for shaft position, displacement and speed/key monitoring.
|
|
01 / SENSING
EZ1080-RM-00-010

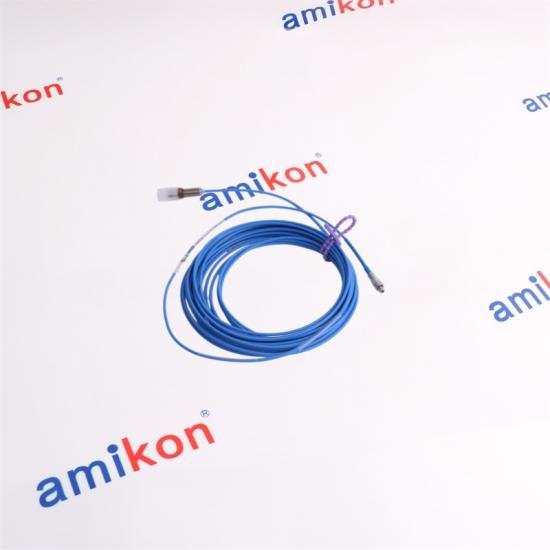

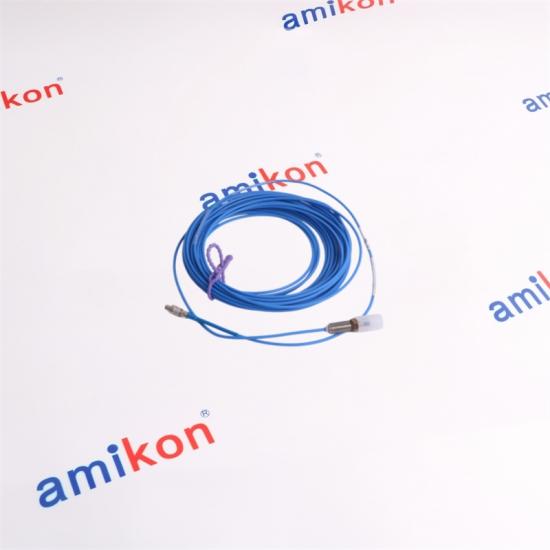

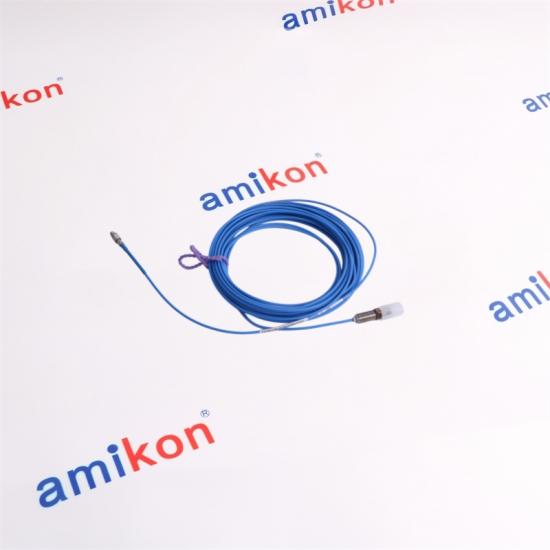

8 mm non-contact eddy-current sensor with Reverse Mount configuration.
|
→ |
02 / CONNECTION
1.0 m Cable
The 010 configuration specifies a 1.0 m sensor cable.
|
→ |
03 / CONVERSION
AMS EZ 1000 Converter
Completes the sensor measurement chain and provides the system interface.
|
| Family | Tip | Thread | Cable Construction | Configuration Difference |
| EZ1050 | 5 mm | M8 × 1 | Non-armored | 5 mm metric version |
| EZ1051 | 5 mm | M8 × 1 | Armored | 5 mm armored version |
| EZ1080 | 8 mm | M10 × 1 | Non-armored | EZ1080-RM-00-010 belongs here |
| EZ1081 | 8 mm | M10 × 1 | Armored | 8 mm armored version |
| EZ1082 | 8 mm | 3/8"-24 UNF | Non-armored | 8 mm imperial-thread version |
| EZ1083 | 8 mm | 3/8"-24 UNF | Armored | 8 mm imperial-thread armored version |
| EZ1160 | 16 mm | M18 × 1.5 | Non-armored | 16 mm metric version |
| EZ1161 | 16 mm | M18 × 1.5 | Armored | 16 mm armored version |
|
PROBE HOLDER
AMS EZ 1000 Probe Holder
The EZ105x and EZ108x sensor families are compatible with the AMS EZ 1000 Probe Holder. Reverse Mount is specifically available with the 8 mm sensor configurations.
|
EXTENSION CABLE
EZ190x Cable Family
Where the 1.0 m sensor cable is not sufficient for the installation route, a compatible extension cable can be used while keeping the complete sensor-plus-cable arrangement within the applicable system cable-length requirements.
|
|
AMIKON LIMITED / SALES SUPPORT
Need EZ1080-RM-00-010?
For an accurate quotation, send the complete part number together with quantity, destination and required date. Matching the complete configuration helps avoid ordering a different mounting or cable version.
|
✉ sales@amikon.cn ◉ WhatsApp +86 180 2077 6792
Delivery: 3–5 Days
Warranty: 12 Months Packaging: Brand New Payment Term: T/T Delivery Way: E-packing / FedEx / EMS / TNT / DHL / UPS |
|
RETURN
& REPLACEMENT |
01. Please contact us within 7 days if you have any question after you receiving the items. 02. The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns. 03. The buyer is responsible for all the shipping cost incurred. |
|
Q1 — Will EZ1080-RM-00-010 fit an existing EZ1080 installation that currently uses a different cable length?
The sensor family may be the same, but the complete installation still needs to accommodate the specified 1.0 m cable. The 010 code defines the cable length, so buyers replacing a different cable-length version should verify the routing distance and connector location before selecting the 1.0 m configuration.
|
|
Q2 — Why does the RM designation matter when ordering EZ1080-RM-00-010 as a replacement?
RM identifies the Reverse Mount configuration. This is a mechanical distinction rather than a cosmetic option. If the existing installation requires reverse mounting, selecting a standard EZ1080 configuration without the RM designation can result in a different mounting arrangement.
|
|
Q3 — Is EZ1080-RM-00-010 a practical choice when the shaft target is close to the minimum size?
The EZ108x family specifies a 14 mm minimum target diameter, while a target greater than 20 mm is recommended. The minimum shaft diameter is 20 mm and 25 mm or larger is recommended. If the available target is close to the lower limit, the surrounding geometry and free space should be checked carefully before ordering.
|
|
Q4 — Can EZ1080-RM-00-010 be used where the sensor is exposed to high temperature near the machine?
The sensor with 1 m cable is specified for −35°C to +180°C, while the cable and connector are specified for −35°C to +150°C. Differential-pressure capability is specified at 145 psi at temperatures up to 120°C. The complete installed arrangement should remain within the applicable environmental limits.
|
|
Q5 — Should EZ1080-RM-00-010 be selected over EZ1082 when both are described as 8 mm sensors?
Not simply because both use an 8 mm tip. EZ1080 uses an M10 × 1 case thread, while EZ1082 uses a 3/8"-24 UNF case thread. EZ1080-RM-00-010 also specifies Reverse Mount, 0 mm unthreaded length and a 1.0 m cable. The actual mounting thread and complete configuration should therefore match the installed arrangement.
|
