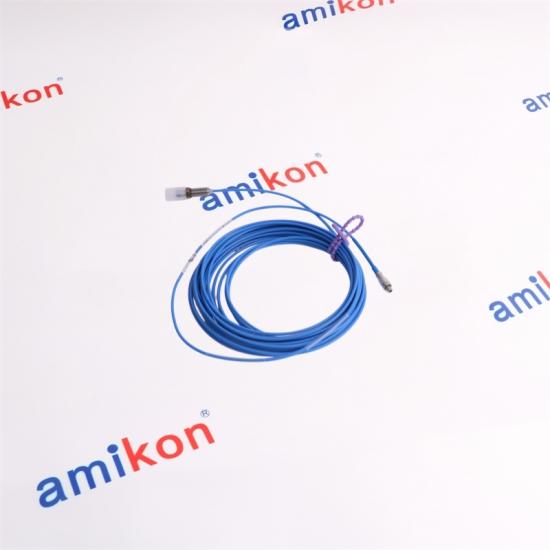

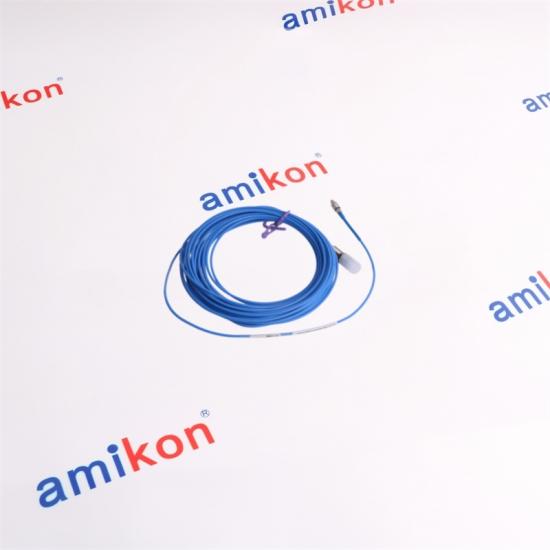

Emerson EZ1080-04-00-005 8 mm Eddy Current Sensor

Calculate shipping
Quotation Request



EMERSON / EDDY CURRENT
EZ1080-04-00-005
8 MM EDDY CURRENT SENSOR

A compact EZ1080 configuration for non-contact displacement and vibration measurement applications.
08
CONFIGURATION MAP
SENSOR SIZE
8 mm
eddy-current sensor
THREAD
M10 × 1
metric mounting thread
CASE
40 mm
case length
CABLE
0.5 m
cable length
AMIKON LIMITED
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
✦ MIYA ZHENG · SALES ✉ EMAIL ◉ WHATSAPP
NON-CONTACT MEASUREMENT
EMERSON / EZ1080 PRODUCT SYSTEM AMIKON CONTACT FAQ MODELS



AMS EZ 1000 · EDDY CURRENT MEASUREMENT
EMERSON / EPRO
EZ1080-04-00-005
8 mm Eddy Current Sensor
PROBE
8 mm
THREAD
M10 × 1
CASE
40 mm
CABLE
0.5 m
A compact non-contact eddy current sensing element for dynamic measurement of shaft movement, position, eccentricity and related machinery behavior. The EZ1080 configuration is designed around the AMS EZ 1000 measurement chain for critical rotating equipment.


CONFIGURATION
04 / 00 / 005
CONFIGURATION LOGIC
EZ1080 / 04 / 00 / 005
8 mm probe · 40 mm case · 0 mm unthreaded · 0.5 m cable

////
01 / PRODUCT IDENTITY
EZ1080-04-00-005
The configuration belongs to the 8 mm EZ1080 sensor family used within the AMS EZ 1000 measurement architecture.
Sensor type
Eddy current displacement sensor		 Probe diameter
8 mm
Case thread
M10 × 1		 Case length
40 mm
Unthreaded length
0 mm		 Cable length
0.5 m
Cable configuration
Non-armored		 Measurement principle
Non-contact eddy current sensing
PRECISION / STABILITY / TARGET INTERACTION
Measurement Performance
2 mm
Linear measurement range
80 mils
0.5 mm
Initial air gap
20 mils
7.87 / 8
V/mm scale factor
API / ISO
±0.025
DSL deviation
mm / ±1 mil
TARGET GEOMETRY
Target & Shaft
Minimum target size
14 mm / 0.55 in
Recommended target size
20 mm / 0.79 in or larger
Minimum shaft diameter
20 mm / 0.79 in
Recommended shaft diameter
25 mm / 0.98 in or larger
ENVIRONMENT
Industrial Durability
Sensor temperature
−35 °C to +180 °C
Cable & connector
−35 °C to +150 °C
Protection
IP67 standard
Pressure resistance
Up to 10,000 hPa / 145 psi at up to 120 °C
TARGET MATERIAL
Material Interaction
The eddy current measurement chain is intended for ferromagnetic metallic targets. Target material and geometry directly affect measurement behavior and should be considered during installation.
Typical compatible steels
42CrMo4 · C35 · 34CrMo4 · S235JR and comparable ferromagnetic steels

○ ○ ○
ROTATING MACHINERY
Where EZ1080 Fits
The sensor is suited to non-contact monitoring tasks where shaft movement or position must be converted into a stable measurement signal within a compatible measurement chain.
Steam & Gas Turbines
Shaft displacement, position and dynamic movement monitoring.		 Compressors
Non-contact observation of rotating shaft behavior.
Pumps & Fans
Suitable for continuous machinery condition monitoring arrangements.		 Gearboxes
Useful where precise relative movement measurement is required.
SERIES ARCHITECTURE
AMS EZ 1000 Sensor Family
Different probe configurations are selected according to mechanical mounting, thread standard, sensing diameter, sleeve length and cable requirements.
EZ1050
5 mm metric configuration
M8 × 1 case thread; 5 mm sensing diameter; available with selectable case and cable lengths.
EZ1080
8 mm metric configuration
M10 × 1 case thread; 8 mm sensing diameter; this page covers the 40 mm / 0 mm / 0.5 m configuration.
EZ1082
8 mm imperial configuration
The 8 mm family also includes an imperial-thread configuration for installations requiring the corresponding mechanical interface.
EZ1000
Measurement chain
The sensor works as part of the broader EZ 1000 measurement architecture rather than as an isolated signal-conditioning device.
Configuration Comparison EZ1080-04-00-005 is differentiated primarily by its 8 mm sensing diameter, M10 × 1 mechanical interface, 40 mm case length, zero unthreaded section and short 0.5 m integrated cable. Other EZ1080 configurations change case length, unthreaded length, cable length or mounting arrangement while retaining the 8 mm family architecture.
EXTENSION CABLE LOGIC
For the 0.5 m sensor-cable option, an EZ190x extension cable can be used within the supported extension configurations. When a sensor is combined with an extension cable, the overall measurement-chain length is selected within the supported 4 m to 10 m system-length range.
TECHNICAL MATRIX
EZ1080-04-00-005 at a Glance
Parameter EZ1080-04-00-005 Engineering Relevance
Sensing diameter 8 mm Defines the physical sensing format
Thread M10 × 1 Metric mechanical installation interface
Case length 40 mm Determines probe-body insertion geometry
Unthreaded length 0 mm No unthreaded section in this configuration
Cable length 0.5 m Compact local connection arrangement
Linear range 2 mm / 80 mils Defines the nominal displacement range
Initial air gap 0.5 mm / 20 mils Critical installation setting
ISF 7.87 V/mm API / 8 V/mm ISO ±5% Signal scale depends on selected standard
DSL ±0.025 mm / ±1 mil Deviation from best-fit straight line
AMIKON LIMITED
Need EZ1080-04-00-005?
Send the exact part number together with quantity, destination, required date and machine/system details. Our sales team can confirm configuration and availability for your application.
Sales Manager
Miya Zheng
sales@amikon.cn
WhatsApp: +86 18020776792
EMAIL SALES WHATSAPP
Inquiry fields
Part Number · Quantity · Destination · Required Date · Machine/System
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
Brand New
PAYMENT
T/T
DELIVERY WAY
DHL · UPS · FedEx · TNT · EMS
AFTER-RECEIPT SERVICE
Return & Replacement
01 / Contact Window
Please contact us within 7 days if you have any question after you receiving the items.		 02 / Item Condition
The returned items has to be in its original condition, with a specific reason for the return.		 03 / Shipping Responsibility
The buyer is responsible for all the shipping cost incurred.
After we received the returns, we will issue a return or replacement for your order according to the confirmed case.
PURCHASING QUESTIONS
EZ1080-04-00-005 FAQ
Can EZ1080-04-00-005 replace another EZ1080 probe with a different case length?
Not automatically. EZ1080 configurations share the 8 mm sensing family, but case length changes the mechanical installation geometry. A replacement should match the existing probe's available insertion depth, mounting arrangement and required cable length rather than being selected only by the EZ1080 family name.
Is the 0.5 m cable on EZ1080-04-00-005 suitable when the electronics are farther away?
The 0.5 m suffix specifies the integrated sensor cable length. Where a longer measurement-chain length is required, the EZ1080 family supports compatible extension-cable arrangements, subject to the supported total system-length combinations. The installed chain should be checked as a complete sensor-to-electronics configuration.
What installation issue should be checked before ordering EZ1080-04-00-005?
The available mounting depth is especially important because this version has a 40 mm case and 0 mm unthreaded length. The mounting thread is M10 × 1, so the existing mechanical interface should also be checked before treating the part as a direct replacement.
Does EZ1080-04-00-005 use the same measurement characteristics as other EZ1080 configurations?
The EZ1080 family shares the 8 mm sensing architecture and the associated measurement characteristics, while individual ordering codes primarily change mechanical and cable configuration. The selected case length and cable arrangement therefore affect installation, not simply the family identification.
When sourcing EZ1080-04-00-005 for an existing machinery monitoring chain, which details should be confirmed first?
Confirm the complete part number, M10 × 1 mounting interface, 40 mm case length, 0 mm unthreaded length and 0.5 m cable configuration. For the measurement side, verify the target material and geometry, the required initial air gap, the intended measurement range and the compatibility of the associated EZ 1000 measurement electronics.
