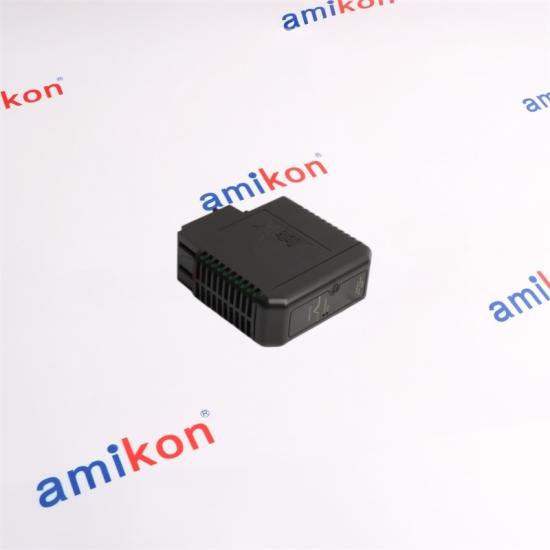

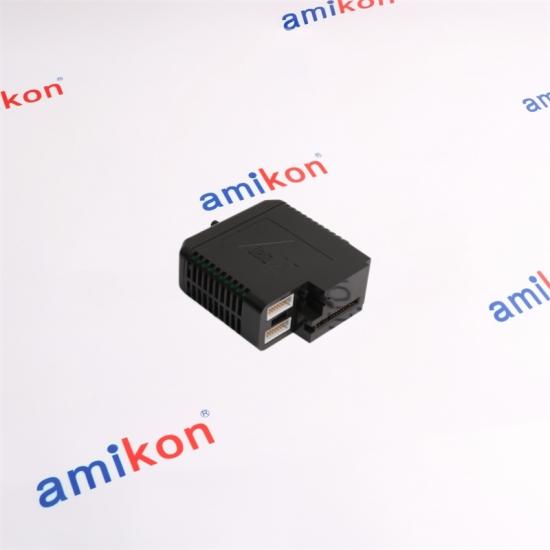

KC3010X1-BK1
16-Channel 4–20 mA HART Plus Analog Input Card
Emerson KC3010X1-BK1 is a DeltaV S-series 16-channel analog input card designed for 4–20 mA process signals with HART communication capability. The card provides a high-density interface between field transmitters and the DeltaV control architecture, with dedicated field-circuit power and LocalBus power requirements.

16
Input Channels
4–20 mA
Analog Input
HART
Digital Communication
A6
Terminal Key Position



PRODUCT ARCHITECTURE

A compact high-density analog input interface for DeltaV process control
Signal Acquisition & HART Integration
KC3010X1-BK1 provides sixteen analog input channels for 4–20 mA process signals. HART communication is supported on the input architecture, allowing compatible field devices to exchange digital communication over the analog loop.
The card is identified within the DeltaV S-series hardware family as an AI 16-channel 4–20 mA HART Plus card.
PRODUCT IDENTIFICATION
KC3010X1-BK1
AI 16-channel 4–20 mA HART Plus card
16 Independent AI Channels
The card provides sixteen analog input channels, allowing multiple process transmitters to be integrated into the DeltaV I/O structure through a single high-density I/O card.
4–20 mA + HART
The analog signal uses the established 4–20 mA process-current range, while compatible HART devices can provide digital communication over the same field loop.
S-Series I/O Architecture
The KC3010X1-BK1 belongs to the DeltaV S-series I/O hardware family and works as part of the carrier, terminal-block and controller architecture.
TECHNICAL PARAMETERS

Product Type AI 16-Channel 4–20 mA HART Plus Card Model KC3010X1-BK1
Number of Channels 16 Input Signal 4–20 mA
Communication HART LocalBus Power 12 VDC at 150 mA
Bussed Field Power 24 VDC at 500 mA Field Circuit 24 VDC at 30 mA/channel
Ambient Temperature −40°C to +70°C Relative Humidity 5% to 95%, non-condensing
Shock 10 g half-sine wave, 11 ms Vibration 1 mm peak-to-peak at 2–13.2 Hz; 0.7 g at 13.2–150 Hz
Airborne Contaminants ISA-S71.04-1985 Class G3 Terminal Block Key A6
Field Power Architecture
The card is specified for 24 VDC bussed field power at 500 mA and 24 VDC field-circuit power at 30 mA per channel. These values are important when checking transmitter loading and the available field-power budget.
Environmental Capability
The specified ambient range is −40°C to +70°C. Relative humidity is 5–95% non-condensing, with shock and vibration ratings intended for industrial control hardware environments.


DELTAV S-SERIES / SYSTEM RELATIONSHIP

How KC3010X1-BK1 fits into the I/O signal path
FIELD TRANSMITTER
A compatible 4–20 mA field device generates the process measurement signal.
 →
KC3010X1-BK1
AI 16-Channel HART Plus
Receives 4–20 mA signals and supports HART communication with compatible field devices.
 →
DELTAV CONTROL
The I/O subsystem transfers measurement data into the DeltaV control environment.
RELATED PLUS I/O ARCHITECTURE
Hardware Type Function Signal Role Relationship
KC3010X1-BK1 AI 16-Channel HART Plus 4–20 mA input Measurement acquisition
KC3011X1-BK1 AO 16-Channel HART Plus 4–20 mA output Control output
KC3021X1-BK1 DI 32-Channel Plus 24 VDC dry contact Discrete acquisition
KC3020X1-BK1 DO 32-Channel Plus 24 VDC high-side output Discrete control
Replacement Compatibility Point
KC3010X1-BK1 is an analog input card, not an analog output card. A replacement should therefore be matched by channel function, 4–20 mA input capability, HART capability, S-series architecture, terminal-block keying and power requirements rather than by physical appearance alone.
Terminal-Block Matching
The KC3010X1-BK1 uses an A6 terminal-block key position. The rotary keying arrangement is intended to ensure that the terminal block and I/O card are configured for the correct pairing before installation.
