BENTLY NEVADA · 3300 XL 8 MM

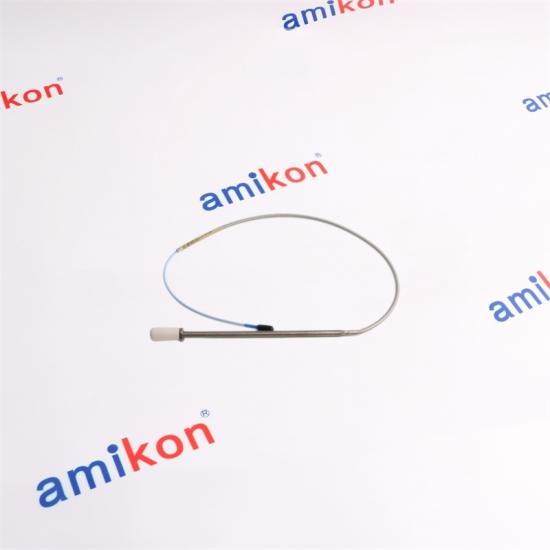

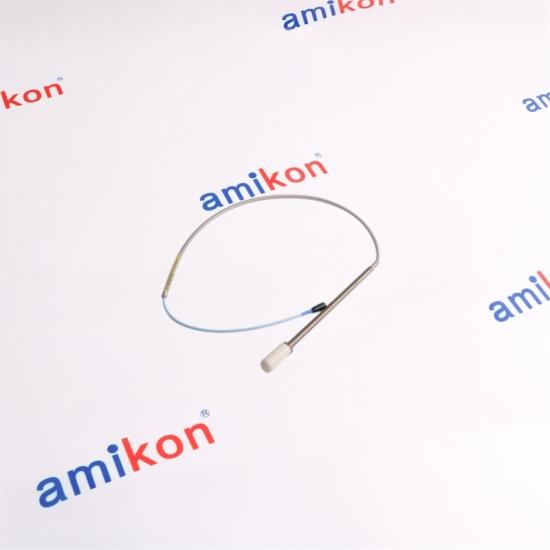

330104-00-25-50-02-CN3300 XL 8 mm proximity probe with M10 × 1 metric mounting thread, armored construction, 0 mm unthreaded length, 250 mm overall case length and a 5.0 m standard cable assembly with miniature coaxial ClickLoc connector.
|
|
01 / PRODUCT PROFILE
Precision
at the Shaft Interface The 330104 family is the armored M10 × 1 version of the 3300 XL 8 mm proximity probe. The sensing element works as part of an eddy-current proximity transducer system for non-contact measurement of conductive targets. |
|
|
2 mm
Linear range
|
7.87 V/mm
Nominal scale factor
|
0–10 kHz
Frequency response
|
75 Ω
Probe cable impedance
|
−52 to +177°C
Standard probe range
|
|
ENGINEERING VIEW
Technical
|
|
|
CONFIGURATION MAP
330104-00-25-50-02-CNA compact reading of the physical configuration requested for this exact part number. |
|
BASE
330104
M10 × 1
Armored 8 mm probe |
A
00
0 mm
unthreaded length |
B
25
250 mm
overall case length |
C + D
50 / 02
5.0 m
ClickLoc standard cable |
SUFFIX
CN
Country-specific
configuration designation |
|
02 / SERIES RELATION
One System,
|
|
||||||
|
Installation checkpoints
The M10 × 1 configuration permits a maximum thread engagement of 15 mm. The 250 mm case length should not be confused with permissible thread engagement. Cable routing should respect the 25.4 mm minimum bend radius. For radial vibration applications, the recommended nominal gap is approximately 1.27 mm (50 mils), corresponding to approximately −9 Vdc in the specified system conditions. |
Target & spacing considerations
The published minimum flat target size is 15.2 mm diameter. A shaft diameter of at least 50.8 mm is specified for the stated cross-talk condition, while 76.2 mm is the recommended minimum shaft diameter. When multiple transducers are installed, maintaining adequate tip-to-tip separation helps control cross-talk; typical minimum separations are approximately 40 mm for axial position measurements and 38 mm for radial vibration measurements under the stated conditions. |
|
|
AMIKON LIMITED
Industrial Automation
Parts, Ready for Action. We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world. 20+ Years of industrial automation supply experience
551,867+ automation spare parts supported
Global Service with multilingual customer support
|
|
03 / DIRECT CONTACT
Need the Exact
|
Delivery ways: E-packing / FedEx / EMS / TNT / DHL / UPS
|
|
Return &
Replacement Simple and clear after-sales handling
|
01 · 7-DAY NOTICE
Please contact us within 7 days if you have any question after you receiving the items.
|
02 · RETURN CONDITION
The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we receive the returns.
|
03 · SHIPPING COST
The buyer is responsible for all the shipping cost incurred.
|
|
04 / PURCHASING QUESTIONS
FAQ · 330104-00-25-50-02-CNFive practical checks for replacement, compatibility and installation planning. |
|
Q1 · Can 330104-00-25-50-02-CN be connected directly to a 5 m 3300 XL Proximitor Sensor?
Yes, the 5.0 m probe length is designed for use with the 5 m Proximitor Sensor configuration. The system length must be treated as a matched probe/cable/sensor configuration; a 5 m probe should not be paired with a 9 m Proximitor Sensor simply because the connector is physically compatible. |
Q2 · Does the 250 mm case length of 330104-00-25-50-02-CN require a 250 mm mounting thread?
No. The 25 configuration denotes the overall case length, not permissible thread engagement. For the M10 × 1 probe thread, the maximum thread engagement is 15 mm. Installation should therefore check both the 250 mm physical case dimension and the separate thread-engagement limit. |
|
Q3 · Is 330104-00-25-50-02-CN a suitable replacement for a 330103 probe?
Both belong to the metric 3300 XL 8 mm family and use the M10 × 1 mounting thread, but 330104 is the armored version while 330103 is the non-armored version. Substitution should therefore be based on the installed cable-routing space, mechanical protection requirement and complete part-number configuration rather than the base family alone. |
Q4 · What should be checked before replacing 330104-00-25-50-02-CN in a crowded bearing installation?
Check the 250 mm case geometry, M10 × 1 mounting arrangement, the 15 mm maximum thread engagement, cable routing and the 25.4 mm minimum cable bend radius. Also verify target size and neighboring probe spacing where multiple proximity probes are installed, because cross-talk can affect the measurement. |
|
Q5 · What should be confirmed for the CN configuration of 330104-00-25-50-02-CN before a regulated-area replacement?
The complete suffix should be checked against the required country and installation approval conditions before ordering. The standard 3300 XL 8 mm ordering structure distinguishes agency approval as a separate configuration field, so the exact supplied suffix should be matched to the installation requirement rather than assuming that every 330104 variant carries the same approval configuration. |
|
|
