BENTLY NEVADA / 3300 XL
|
ROTATING MACHINERY MONITORING
330102-16-40-50-01-05

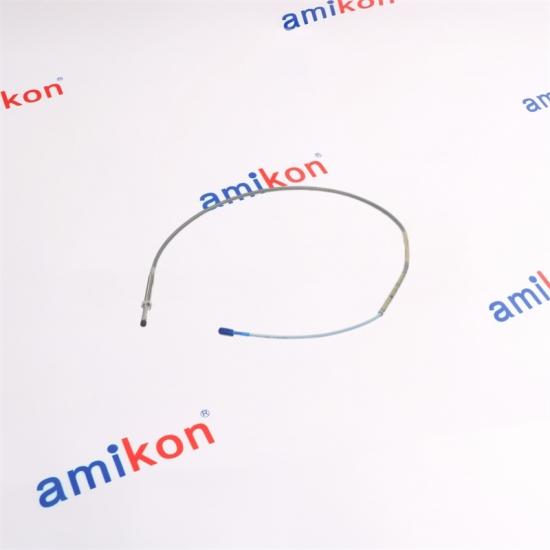

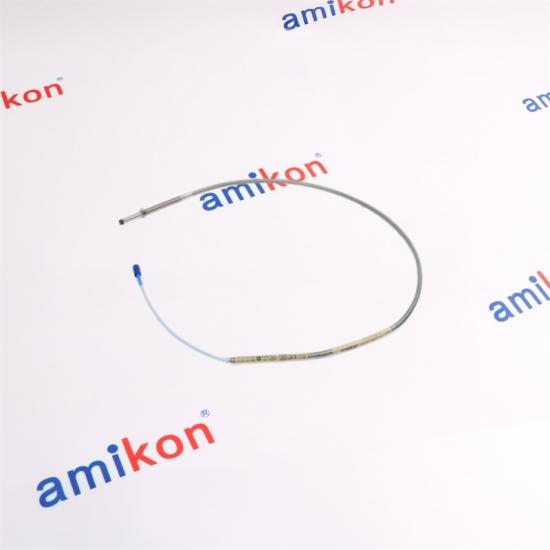

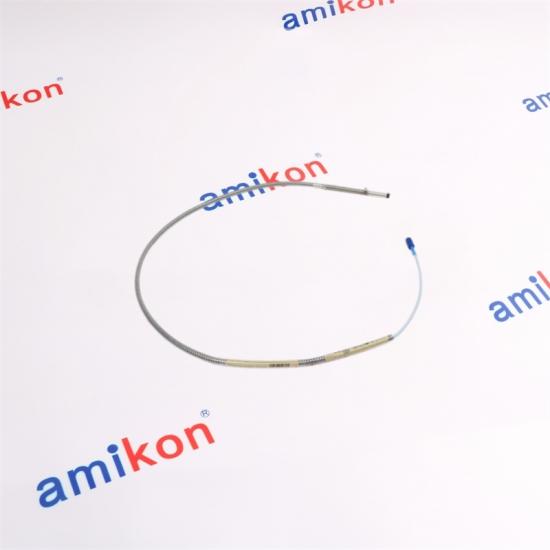

3300 XL 8 mm Armored Proximity Probe
The 330102-16-40-50-01-05 is a 3300 XL 8 mm proximity probe with a 3/8-24 UNF thread, armored construction and a 5.0 m total probe length. It is used as part of a complete 3300 XL 8 mm proximity transducer system for non-contact measurement of shaft position and vibration, with Keyphasor reference and speed measurement also supported by the system.
|
|
01 / PRODUCT DETAIL
Built Around a Defined 3300 XL Configuration
The 330102-16-40-50-01-05 belongs to the 3300 XL 8 mm proximity probe family. The 330102 base designation specifies a 3/8-24 UNF threaded probe with armor. The ordering sequence then defines the mechanical length, total probe length, connector/cable arrangement and agency approval option.
Configuration reading: 16 = 1.6 in unthreaded length | 40 = 4.0 in overall case length | 50 = 5.0 m total length | 01 = miniature coaxial ClickLoc connector with connector protector and standard cable | 05 = CSA, ATEX and IECEx approvals.
Measurement Role
Within a complete 3300 XL 8 mm proximity transducer system, the probe senses the distance between its tip and a conductive machine target. The resulting system output is proportional to target distance, allowing the system to support both static position and dynamic vibration measurements. The same system architecture also supports Keyphasor reference and speed measurements.
Mechanical Construction
The 8 mm probe tip uses polyphenylene sulfide (PPS), while the probe case uses AISI 303 or 304 stainless steel. The standard cable is a 75 Ω triaxial cable with FEP insulation. The armored construction uses flexible AISI 302 or 304 stainless steel with an FEP outer jacket. The probe cable-to-case design has a maximum rated pull strength of 330 N (75 lbf).
|
Exact Configuration
|
|
SYSTEM RANGE
2.0 mm
Nominal linear range of the 3300 XL 8 mm system.
|
SCALE FACTOR
7.87 V/mm
Equivalent to 200 mV/mil under specified system conditions.
|
FREQUENCY
0–10 kHz
Frequency response specified at +0 / -3 dB.
|
CABLE BEND
25.4 mm
Minimum permissible cable bend radius.
|
|
SYSTEM ARCHITECTURE
Probe → Cable → Proximitor
A complete 3300 XL 8 mm system combines the proximity probe with the corresponding Proximitor Sensor and, where required by the system length, an extension cable. For this specific 5 m configuration, the 5 m probe is designed for use with the 5 m Proximitor Sensor.
|
|
|
330101
3/8-24 UNF / without armor
|
330102
3/8-24 UNF / with armor
|
330103 / 330104
M10 × 1 / unarmored or armored
|
330105 / 330106
Reverse-mount configurations
|
|
ORDERING CHECKPOINT
Before You Place the Order
For a replacement, the complete part number should be checked against the existing installation. Pay particular attention to the 3/8-24 UNF thread, 1.6 in unthreaded length, 4.0 in case length, 5.0 m total length, ClickLoc connector arrangement and the CSA / ATEX / IECEx approval option. The mating Proximitor Sensor configuration should also match the 5 m system.
Quote request: Please provide Part Number, Quantity, Destination, Required Date and Machine/System when requesting a quotation.
|
SERVICE TERMS
Supply & Delivery
|
|
AMIKON INDUSTRIAL SUPPORT
Need the exact
330102-16-40-50-01-05? Send the complete part number and your required quantity. Our sales team can arrange quotation, availability and delivery details.
|
|
|||||||
|
Can 330102-16-40-50-01-05 replace another 3300 XL 8 mm probe with the same 8 mm tip?
Not automatically. The 8 mm sensing diameter alone does not establish mechanical compatibility. This configuration uses a 3/8-24 UNF threaded case, 1.6 in unthreaded length, 4.0 in case length, 5.0 m total length and a specific ClickLoc connector and approval arrangement. The complete existing probe configuration and its mating system components should be checked before substitution.
|
Why does 330102-16-40-50-01-05 require attention to the Proximitor Sensor length?
The “50” option defines a 5.0 m probe. The 3300 XL ordering specifications state that 5 m probes are designed for use with the 5 m Proximitor Sensor. Therefore, replacing only the probe while retaining a different system-length Proximitor configuration can create a mismatch in the intended transducer system arrangement.
|
|
What makes 330102-16-40-50-01-05 different from the 330105 reverse-mount family?
They are different mechanical configurations. The 330102 family is the standard 3/8-24 UNF 3300 XL 8 mm probe with armor, while the dedicated reverse-mount configurations are designated separately as 330105 and 330106. The installation method should therefore be matched to the existing probe mounting arrangement, rather than selecting a part only by sensing diameter or cable length.
|
When is the 330102-16-40-50-01-05 approval option important during replacement?
The final “05” specifies the CSA, ATEX and IECEx approval option in the 3300 XL ordering structure. If the existing installation requires a particular hazardous-area approval arrangement, the complete suffix should be preserved when selecting a replacement rather than using a visually similar probe with a different final option.
|
|
05
What should be checked if 330102-16-40-50-01-05 is being purchased as a direct spare?
Confirm the full part number rather than only the 330102 base. The replacement should match the 1.6 in unthreaded section, 4.0 in case length, 5.0 m total length, protected ClickLoc standard cable arrangement and “05” approval option. The mating 5 m Proximitor Sensor configuration and the actual mounting thread should also correspond to the installed system. Providing the machine/system and complete existing part number with the quotation request helps prevent a mechanically similar but incorrectly configured replacement.
|
|
|
