BENTLY NEVADA / 3300 XL
|
EDDY-CURRENT PROXIMITY MEASUREMENT
129716-125-040-15-05

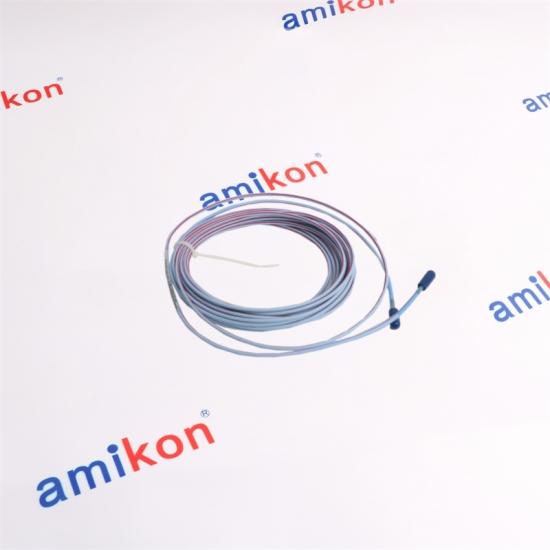

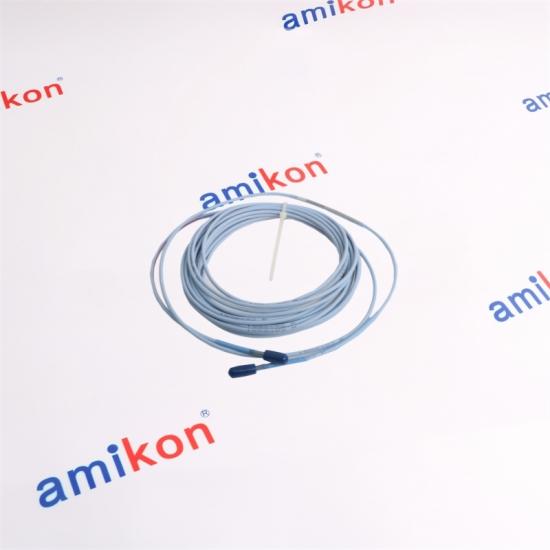

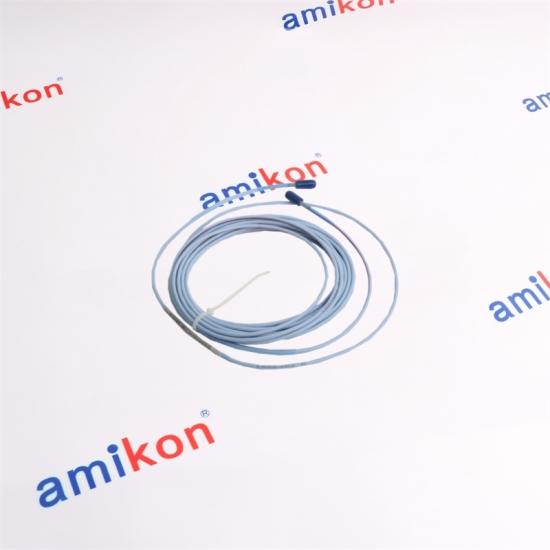

3300 XL 8 mm Proximity Probe
The 129716-125-040-15-05 is a configuration within the Bently Nevada 3300 XL 8 mm proximity-sensing family. The probe forms the sensing element of a complete proximity transducer system used for non-contact measurement of shaft position and dynamic vibration on rotating machinery.
|
|
01 / PRODUCT DETAIL
A Configuration Built for Proximity Measurement
The 129716-125-040-15-05 is an 8 mm proximity probe configuration used within the Bently Nevada 3300 XL proximity transducer system. The 3300 XL 8 mm system uses eddy-current proximity measurement to determine the distance between the probe tip and a conductive machine surface. This allows static shaft position and dynamic vibration values to be measured without physical contact.
Configuration focus: The complete ordering code should be preserved when replacing this probe. For 129716-125-040-15-05, the model is associated with a 1.25 in unthreaded length, a 4.0 in stainless-steel housing length, a 1.5 m total length option and the 05 agency-approval option.
Non-Contact Measurement
The probe operates as part of a complete eddy-current proximity transducer system. The system output changes with the distance between the probe tip and the conductive target. This measurement principle supports rotating machinery applications where shaft displacement, vibration or reference speed needs to be monitored continuously.
Why the Full Part Number Matters
The 129716 family contains multiple physical configurations. Mechanical length, cable length, mounting arrangement and approval selection can vary between configurations. Therefore, the base number 129716 should not be used alone when selecting a replacement. The complete 129716-125-040-15-05 code is the correct purchasing reference for this specific configuration.
|
Configuration Breakdown
PURCHASING POINT
Match the complete configuration
A visually similar 8 mm probe is not automatically an equivalent replacement. Check the full code, mechanical installation and mating system components before ordering.
|
|
SENSING TYPE
EDDY CURRENT
Non-contact proximity measurement
|
PROBE DIAMETER
8.0 mm
3300 XL 8 mm sensing family
|
TOTAL LENGTH
1.5 m
Length option 15
|
APPROVAL
05
CSA / ATEX / IECEx
|
|
SYSTEM RELATIONSHIP
Probe Is One Part of the Measurement Chain
A 3300 XL 8 mm proximity transducer system combines the probe with the appropriate extension cable and Proximitor Sensor. The probe detects the target-to-tip gap while the rest of the transducer system processes the measurement into an electrical output for monitoring equipment.
|
|
|
330101 / 330102
English-thread 8 mm configurations
|
330103 / 330104
Metric-thread 8 mm configurations
|
330105 / 330106
Dedicated reverse-mount configurations
|
129716
Configuration-specific 8 mm probe family
|
|
ORDERING CHECK
Check the Installed Configuration First
For replacement work, confirm the complete 129716-125-040-15-05 part number together with the installed mechanical arrangement and the associated 3300 XL system components. The 1.5 m length option is especially important when matching the probe to the overall transducer-system configuration.
Quotation request: Please provide Part Number, Quantity, Destination, Required Date and Machine/System.
|
SUPPLY TERMS
Delivery & Commercial Details
|
|
AMIKON INDUSTRIAL SUPPORT
Need the exact
129716 configuration? Send the complete part number and quantity. Our sales team can assist with quotation, availability and delivery arrangements.
|
|
|||||||
|
Can 129716-125-040-15-05 replace another 3300 XL 8 mm probe directly?
Not solely because both probes use an 8 mm sensing tip. The complete configuration must be compared, including the physical probe arrangement, unthreaded length, housing length, total cable length and the associated Proximitor Sensor configuration. For this model, the complete 129716-125-040-15-05 part number should be preserved when selecting a replacement.
|
Why is the 1.5 m length important for 129716-125-040-15-05?
The “15” portion corresponds to the 1.5 m total-length option in the 3300 XL 8 mm ordering structure. System length is not merely a physical cable preference: the probe, extension arrangement and Proximitor Sensor form a matched transducer system. The installed system length should therefore be checked before selecting another 129716 configuration.
|
|
What does the 125 configuration mean on 129716-125-040-15-05?
For this configuration, “125” is associated with a 1.25 in unthreaded length at the probe tip. This dimension matters during mechanical replacement because the probe position relative to the machine target depends on the installed mounting geometry. A replacement with a different unthreaded section should not be assumed to have the same mechanical fit.
|
Why should 129716-125-040-15-05 retain the final 05 option?
The final “05” corresponds to the CSA, ATEX and IECEx approval option in the 3300 XL 8 mm ordering structure. If the installed machinery operates under an environment requiring a particular approval configuration, the complete suffix should be matched rather than replacing the probe with a similar configuration that has a different approval selection.
|
|
05
What should buyers verify before ordering 129716-125-040-15-05 as a spare?
The most important check is the complete installed configuration rather than the 129716 base number alone. Confirm the full part number, 1.25 in unthreaded section, 4.0 in housing length, 1.5 m total length and the final 05 approval selection. Also check the physical mounting arrangement and the associated 3300 XL Proximitor Sensor configuration. Providing the complete part number, quantity, machine/system and destination with the quotation request helps reduce the risk of selecting a mechanically similar but incorrect configuration.
|
|
