BENTLY NEVADA / TRENDMASTER
200150-06-05

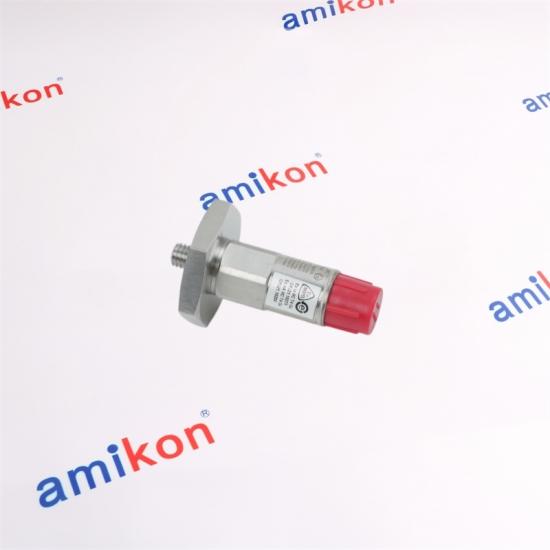

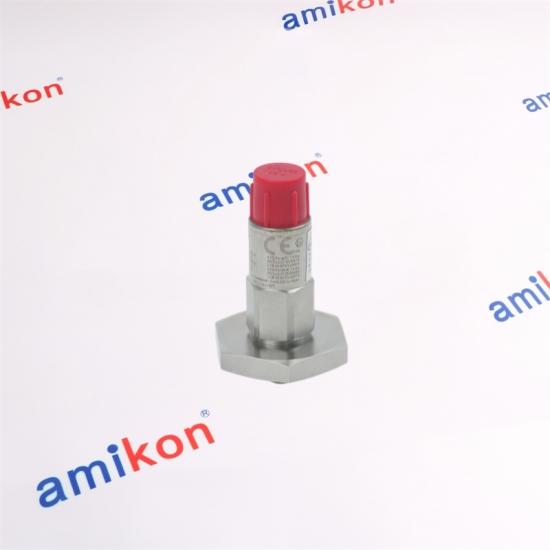

General Purpose Accelerometer
A general-purpose, wide-frequency, case-mounted seismic transducer for Trendmaster ProTIMs. The 200150 model also operates with the Trendmaster 2000 system and interfaces with specified acceleration-to-velocity modules and 1900/25 and 1900/27 monitors.
100 mV/g ±25 g 10–1000 Hz
|
CONFIGURATION SNAPSHOT
|
|
01
SIGNAL CHARACTER
100 mV/g
Sensitivity is specified at 80 Hz with a ±12% tolerance. The piezoelectric sensing element converts vibration along its sensitive axis into a differential voltage signal proportional to acceleration.
|
MACHINE CONNECTION
Trendmaster
The 200150 is designed for general applications with Trendmaster ProTIMs and also operates with the Trendmaster 2000 system. Specified interfaces include the 200100 Dual Acceleration-to-Velocity flexiTIM Module and 89130-01 Acceleration-to-Velocity TIM.
|
MECHANICAL BUILD
316L / Hermetic
The sensor uses a hermetically sealed stainless-steel case, ceramic sensing element and shear sensing geometry. The top-mounted connector uses a 5-pin 1/2-20 configuration.
|
|
|
|
WHY THE 200150 CONFIGURATION MATTERS
A general-purpose vibration path for machinery monitoring
The 200150 is the general-application member of the 20015x accelerometer family. Its 10–1000 Hz frequency range and standard acceleration-to-velocity application make it suited to the general machine-monitoring role defined for the 200150 configuration.
The 200150 should not simply be substituted with the 200155 or 200157 when the monitoring configuration requires the 200150 response characteristics. The three variants have different application roles.
|
20015X FAMILY POSITIONING
|
|

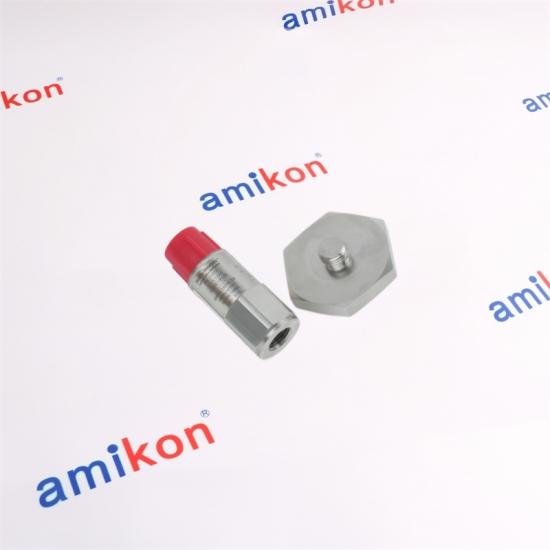

Mounting Stud Option 06
3/8-24 to 1/4 NPT, 3/4-inch hex stud.
|
Approval Option 05
Multiple approvals: CSA, ATEX and IECEx.
|
|
DIRECT CONTACT
Need 200150-06-05?
Send the part number and your application requirements. Our sales team can assist with availability, delivery and replacement needs.
|
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
|
PAYMENT TERM
T/T
|
| Part Number | Quantity | Destination | Required Date | Machine/System |
|
Can 200150-06-05 be used as a direct replacement when the existing system requires a 200155 or 200157?
Not automatically. The 200150, 200155 and 200157 have different application roles and frequency characteristics. The 200150 is the standard general-application accelerometer; the 200155 is intended for low-frequency applications, while the 200157 is intended for acceleration-enveloping applications. The monitoring channel and required measurement response should therefore be checked before substitution.
|
What should be checked before ordering 200150-06-05 for an existing Trendmaster installation?
Confirm that the application calls for the standard 200150 accelerometer, then verify the mounting arrangement, the 3/8-24 sensor thread, the required 1/4 NPT mounting-stud configuration associated with option 06, the five-pin connection, and the applicable monitoring interface.
|
|
Why does the 200150-06-05 configuration use mounting option 06?
Option 06 specifies a 3/8-24 to 1/4 NPT adapter with a 3/4-inch hex stud. This configuration is part of the ordering structure of the 200150 family and distinguishes the mounting arrangement from other stud options such as 05, 07, 08 and 09.
|
Does the 200150-06-05 provide the same frequency response as the wider-band 200155 or 200157?
No. The 200150 is specified for 10 to 1000 Hz, while the 200155 and 200157 extend to higher frequencies. The broader response of those variants serves different application purposes and should not be treated as interchangeable with the standard 200150 response.
|
|
What makes 200150-06-05 relevant when replacing an aging general-purpose vibration sensor?
For a general-application Trendmaster installation, the important checks are not only the part number but also the sensor family role, measurement range, frequency range, mounting configuration and interface. The 200150 provides ±25 g measurement capability, 10–1000 Hz frequency coverage, a 100 mV/g sensitivity specification and a 3/8-24 female mounting thread. Matching these characteristics against the existing installation helps avoid an unsuitable substitution.
|
|
|
